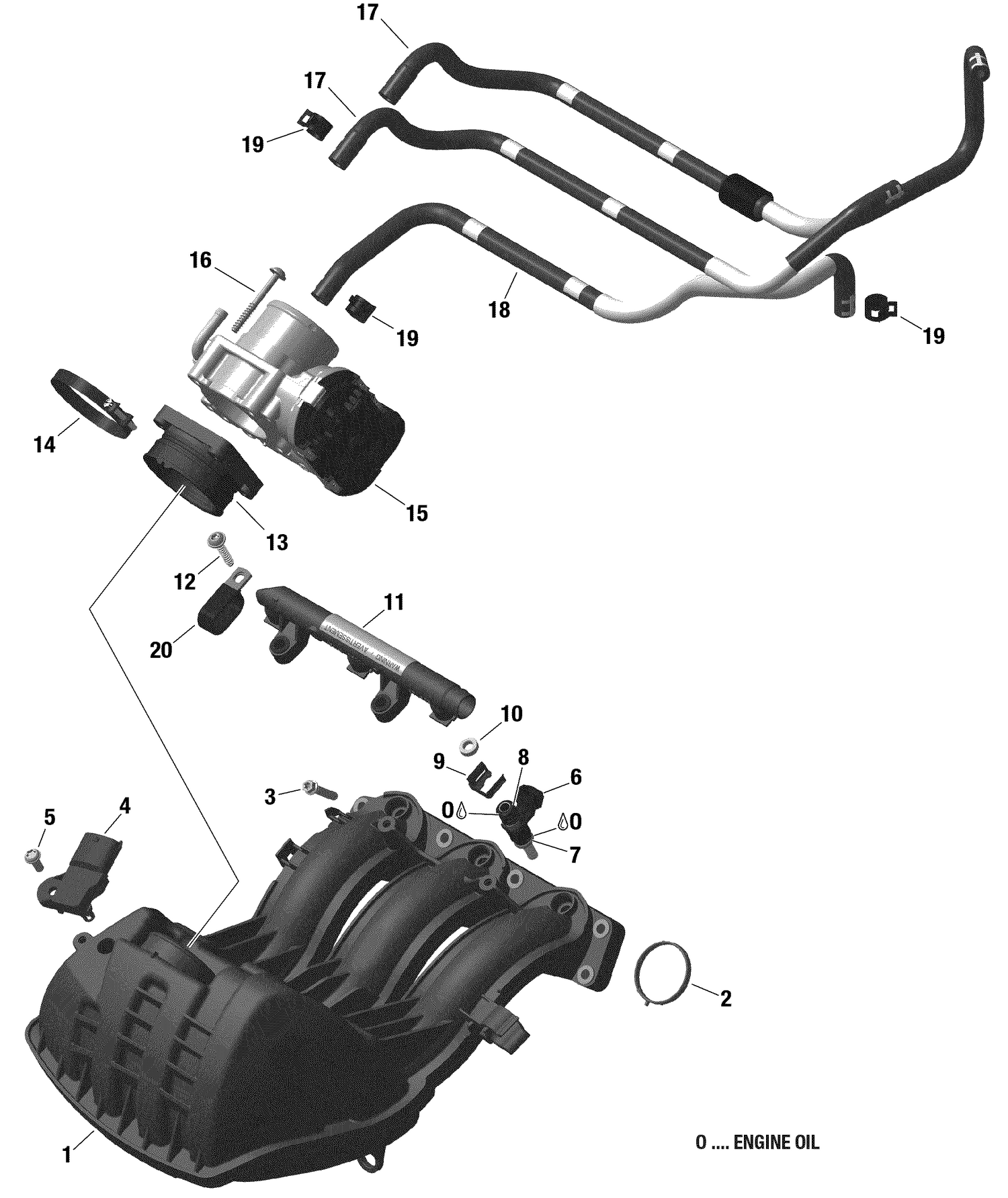

01- Engine - Air Intake Manifold And Throttle Body - 900 ACE
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420431662 | Gasket |
| 3 | 420440647 | Torx Flange Screw M6 X 30 |
| 4 | 707000995 | Pressure And Temperature Sensor |
| 5 | 420641588 | Torx Flange Screw M6 X 16 |
| 7 | 420831050 | O-Ring |
| 8 | 420430775 | O-Ring |
| 9 | 420853030 | Injector Clip |
| 10 | Not | Available As Spare Part - Non Applicable |
| 11 | 420874966 | Fuel Rail |
| 12 | 420441575 | Torx Screw 6X30 |
| 13 | 420867110 | Intake Neck |
| 14 | 420251830 | Hose Clamp |
| 15 | 420893148 | Throttle Body |
| 16 | 420441588 | Torx Flange Screw M6 X 50 |
| 17 | 420201506 | Molded Hose |
| 18 | 420201500 | Molded Hose |
| 19 | 420853511 | Clamp |
