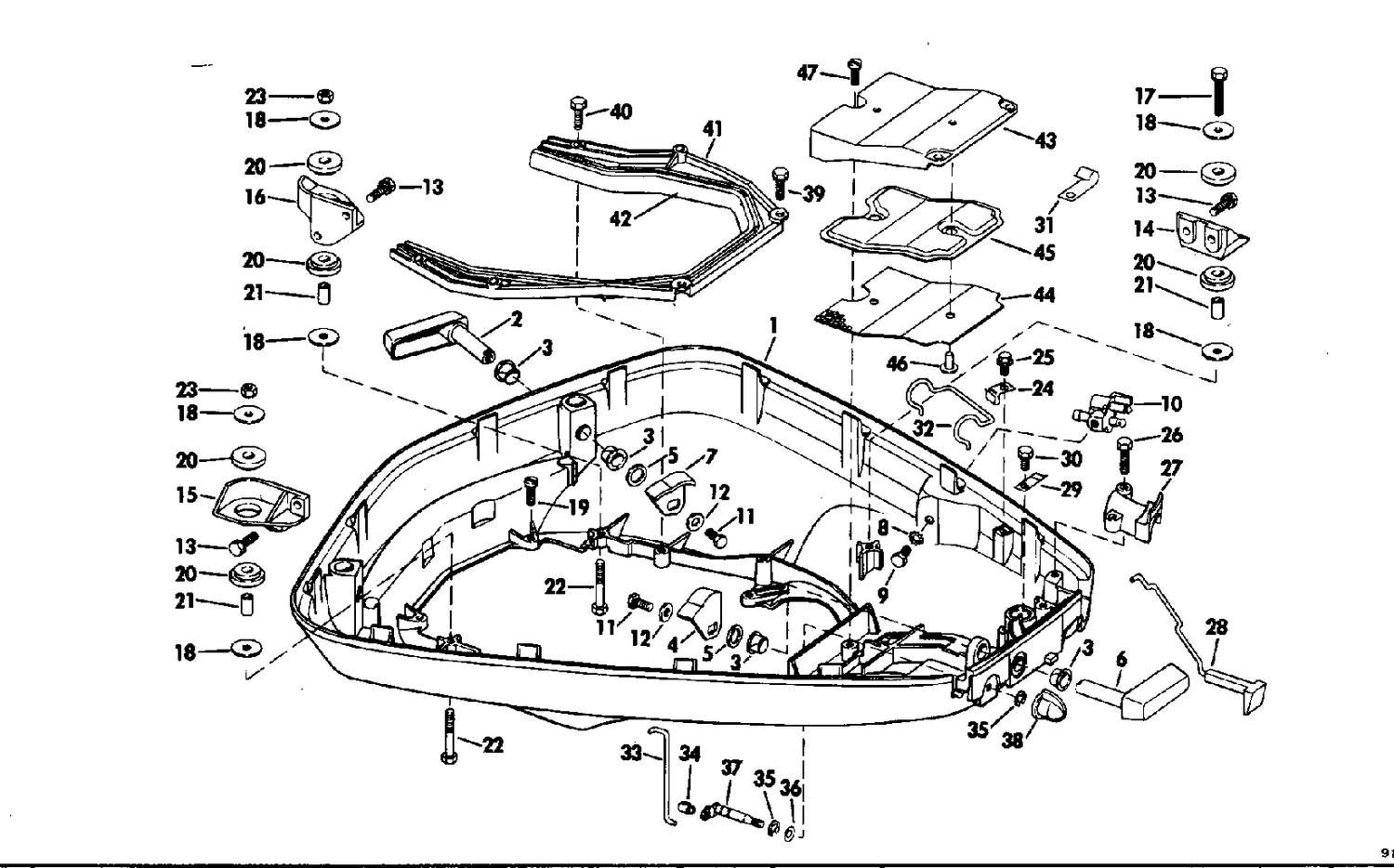

| Ref | Part Number | Description |
|---|
| 1 |
0314837 |
MOTOR COVER, Lower |
| 2 |
0383685 |
LATCH HANDEL ASSY., Rear |
| 4 |
0323170 |
HOOK Front and stbd., rear This part replaces 0315178. |
| 6 |
0383641 |
LATCH HANDEL ASSY., Front |
| 7 |
0323169 |
HOOK, Lower rear port This part replaces 0315177. |
| 9 |
0306419 |
SCREW |
| 10 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 11 |
0552062 |
SCREW, Clamp |
| 13 |
0553556 |
SCREW, Housing to cylinder |
| 14 |
0315111 |
SUPPORT, Front |
| 15 |
0315113 |
SUPORT, Stbd, rear |
| 16 |
0315112 |
SUPPORT, Port rear |
| 17 |
0308995 |
SCREW, Front mount |
| 19 |
0308753 |
SCREW, Fram to c'case |
| 20 |
0316354 |
ENGINE COVER SUPPORT GROMMET This part replaces 0302405. |
| 21 |
0302406 |
SLEEVE |
| 22 |
0306493 |
SCREW, Regulator mounting |
| 23 |
0311375 |
NUT |
| 25 |
0312299 |
VIS, serre-câble |
| 27 |
0315170 |
CLAMP, Instrument cable |
| 28 |
0383639 |
CHOKE KNOB & ROD ASSY. |
| 29 |
0315135 |
DETENT, Choke knob |
| 30 |
0313117 |
SCR,Clamp,eng cable |
| 31 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 33 |
0315097 |
LINK, Slow speed adjust |
| 34 |
0313329 |
LOCKWASHER, Carburetor link |
| 36 |
0204757 |
BOW WASHER |
| 37 |
0383630 |
SHAFT AND ARM ASSEMBLY, Slow speed |
| 38 |
0314615 |
ADJUSTING KNOB |
| 39 |
0308753 |
SCREW, Fram to c'case |
| 40 |
0309263 |
BOLT, Handle |
| 41 |
0383640 |
FRAME AND SEAL ASSEMBLY |
| 42 |
0315115 |
SEAL, Frame |
| 43 |
0383677 |
COVER ASSEMBLY, Air entrance |
| 44 |
0315119 |
RATAINER, Silencer pad |
| 45 |
0315118 |
SILENCER PAD |
