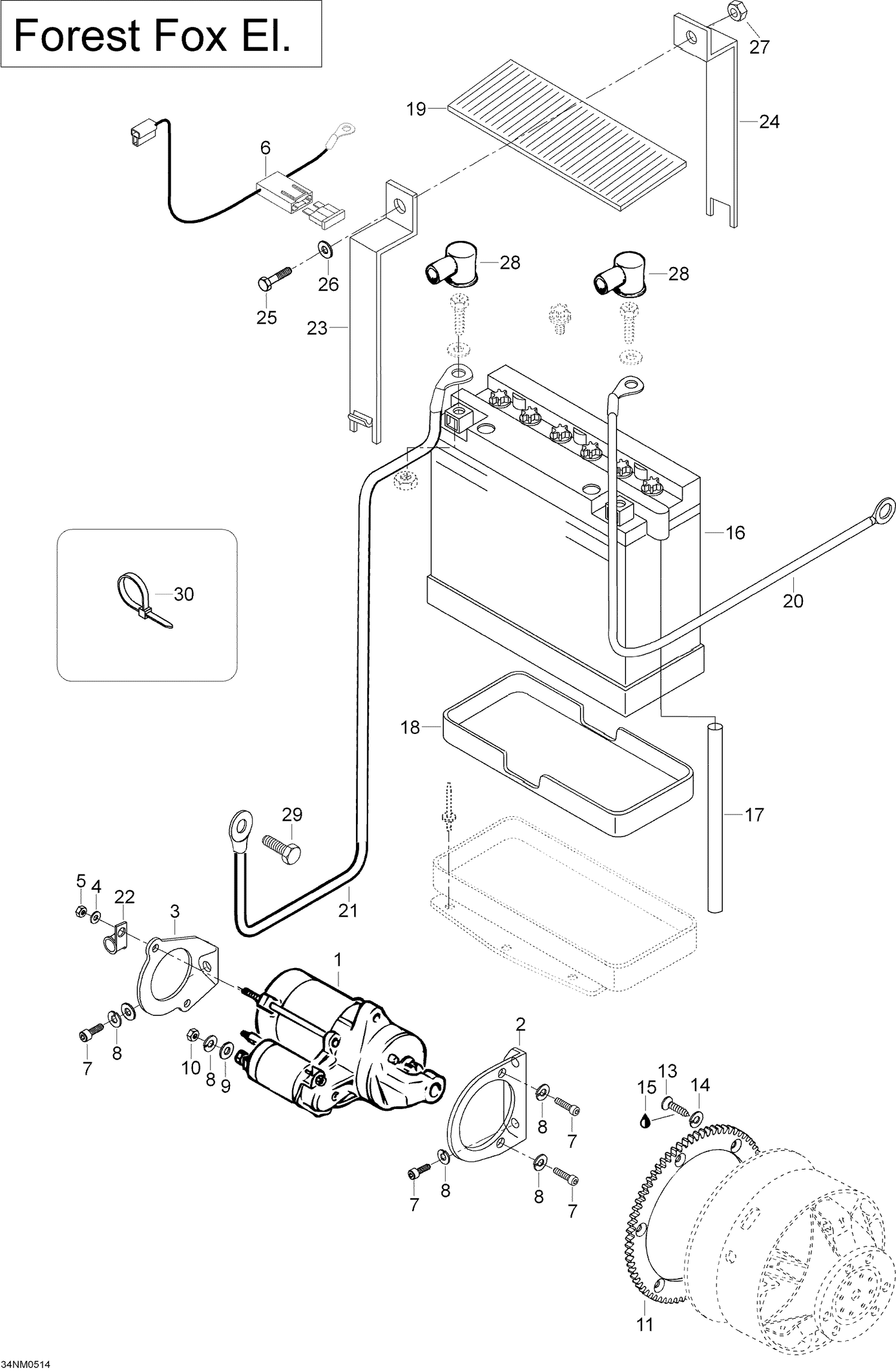

| Ref | Part Number | Description |
|---|
| 1 |
410212400 |
ELECTRIC STARTER ASSY - Call your local BRP dealership |
| 2 |
5346654 |
Starter Fastening Front - Call your local BRP dealership |
| 3 |
5346655 |
SUPP.-STAR.MAG - Call your local BRP dealership |
| 4 |
20008 |
Washer A5,3 |
| 5 |
33009 |
Elastic stop nut M5 |
| 6 |
5346695 |
FUSE HOLDER - Call your local BRP dealership |
| 7 |
40305 |
Socket head screw M8 x 20 |
| 8 |
20014 |
Lock washer A8 |
| 9 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 10 |
33003 |
Nut M8 |
| 11 |
417009400 |
Ring gear(86 tooth) |
| 13 |
236281684 |
Hex. Screw M8 X 16 |
| 14 |
20078 |
Washer A8,4 |
| 15 |
Not |
Available As Spare Part - Loctite 2701 |
| 16 |
42215 |
BATTERY YUASA 12N14-3A - Call your local BRP dealership |
| 17 |
39055 |
Hose |
| 18 |
5346659 |
Battery housing |
| 19 |
5446666 |
Rubber carpit - Call your local BRP dealership |
| 20 |
605349434 |
BATTERY WIRE - Call your local BRP dealership |
| 21 |
549887 |
Ground wire |
| 22 |
27092 |
Clamp |
| 23 |
5446682 |
Steel strip |
| 24 |
5446694 |
STRIP-ST - Call your local BRP dealership |
| 25 |
40032 |
Hex. screw M6 x 30 |
| 26 |
20003 |
Washer A6,4 |
| 27 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 28 |
570151000 |
Cap |
| 29 |
40327 |
Hex. screw M6 x 12 |
