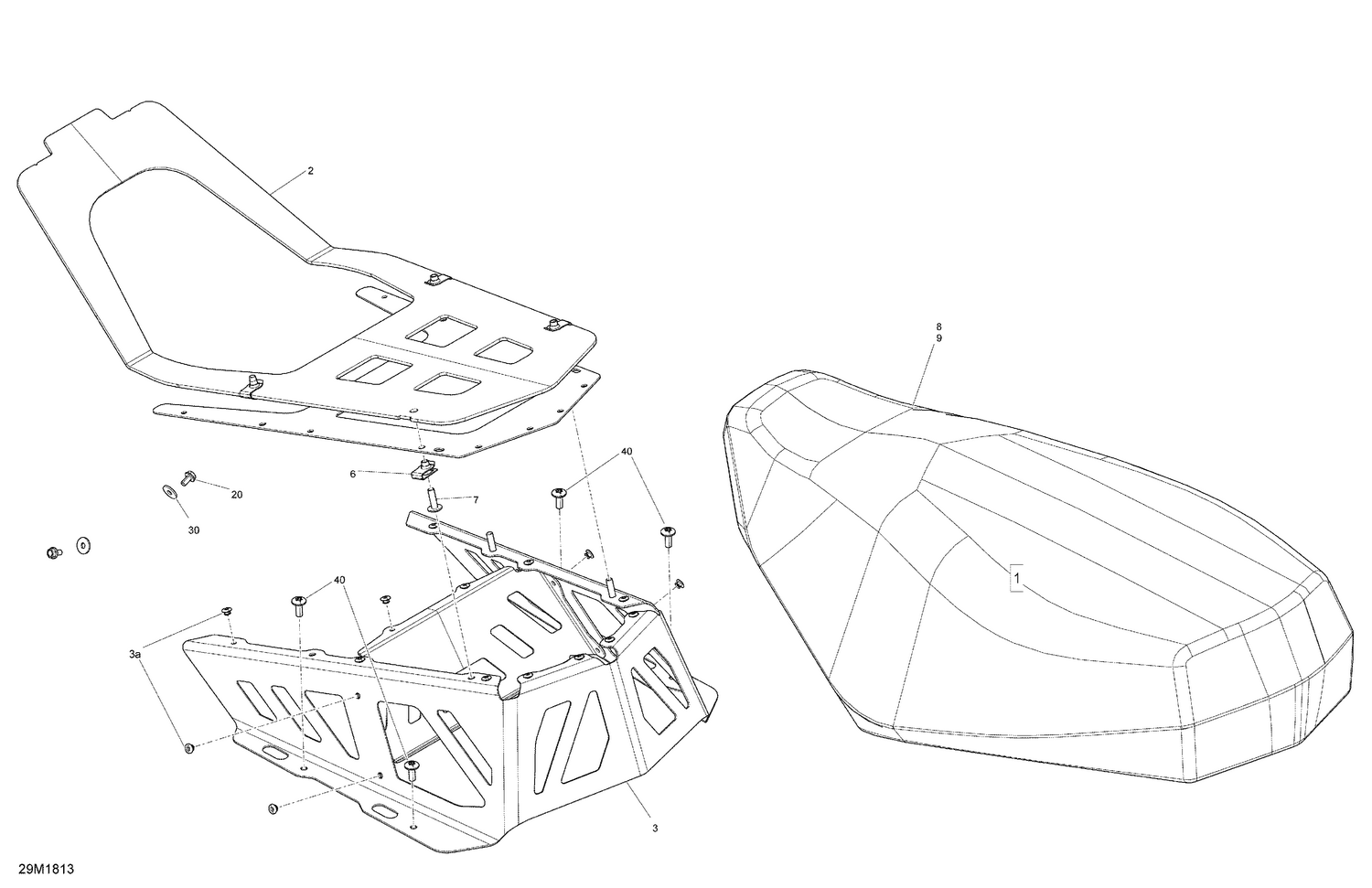

09- Seat MXZ RS
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Seat Ass'y |
| 2 | 510006295 | Seat Base |
| 3a | 390402200 | Pop Rivet 3/16" |
| 6 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 7 | 250000722 | Torx Screw M6 X 20 |
| 8 | 510006296 | Foam-Seat |
| 9 | 510006991 | Seat Cover This part replaces 510006300. |
| 20 | 207551044 | Hex. Flange Screw M5 X 10 |
| 30 | 250200140 | Washer |
