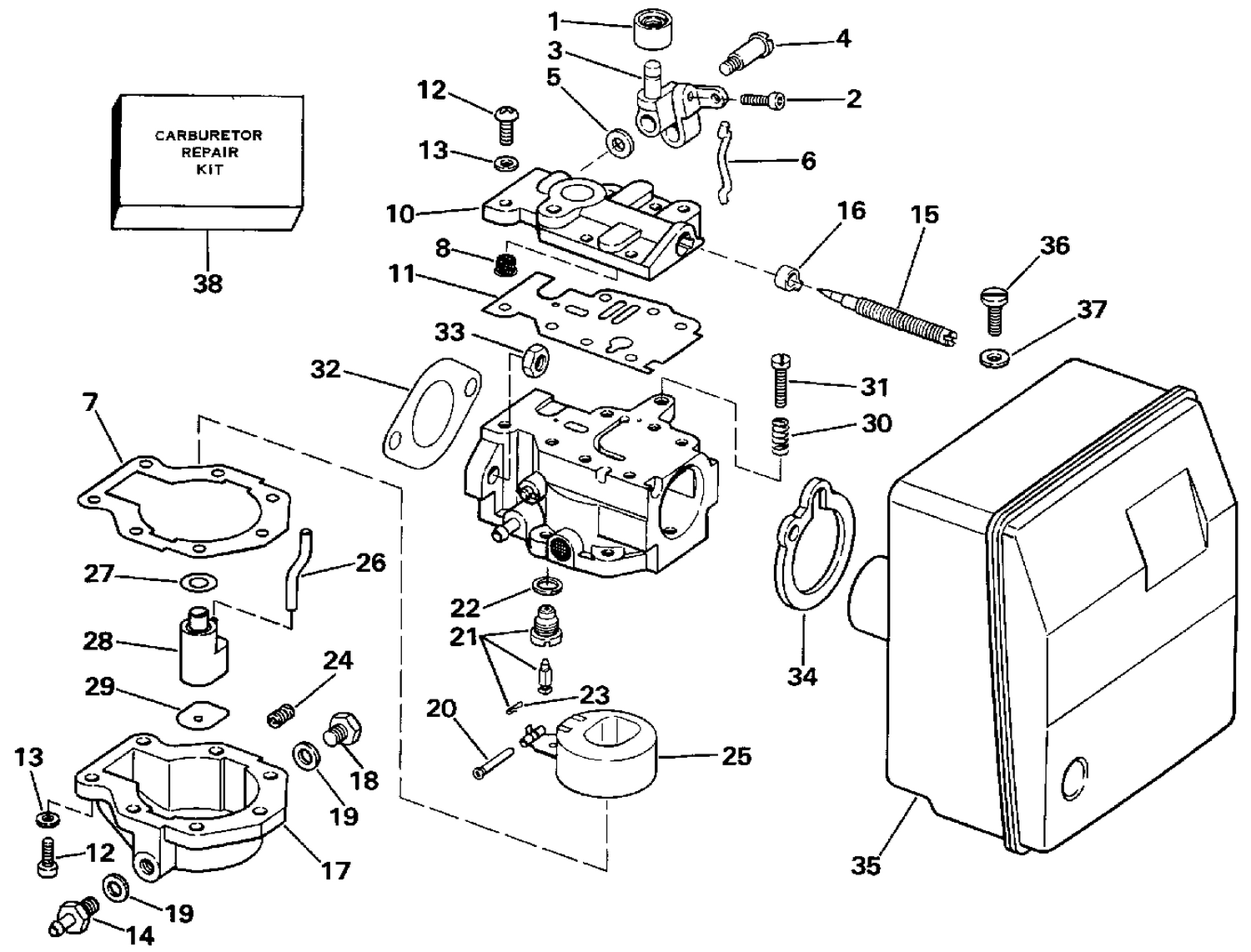

| Ref | Part Number | Description |
|---|
| 10 |
0331735 |
COVER, Carb body |
| 11 |
0334043 |
GASKET, Cover This part replaces 0331750. |
| 13 |
0331831 |
WASHER |
| 15 |
0331743 |
NEEDLE VALVE, Slow speed |
| 16 |
0315232 |
RETAINER , Needle valve stbd |
| 17 |
0398068 |
FLOAT CHAMBER |
| 23 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 26 |
0336567 |
FLEX TUBE This part replaces 0331740. |
| 27 |
0338883 |
GASKET, Upper This part replaces 0333347. |
| 28 |
0396605 |
NOZZLE WELL |
| 28 |
0397189 |
NOZZLE WELL |
| 29 |
0333348 |
GASKET, Cover to housing |
| 32 |
0318932 |
JOINT |
| 33 |
0328742 |
NUT This part replaces 0306338. |
| 34 |
0331780 |
SEAL, Air silencer to carb |
| 35 |
0396564 |
AIR SILENCER |
| 36 |
0331758 |
SCREW, Air horn to carburetor |
| 0398060 |
0398060 |
CARBURETOR ASSY. |
| 0398061 |
0398061 |
CARBURETOR ASSY. |
