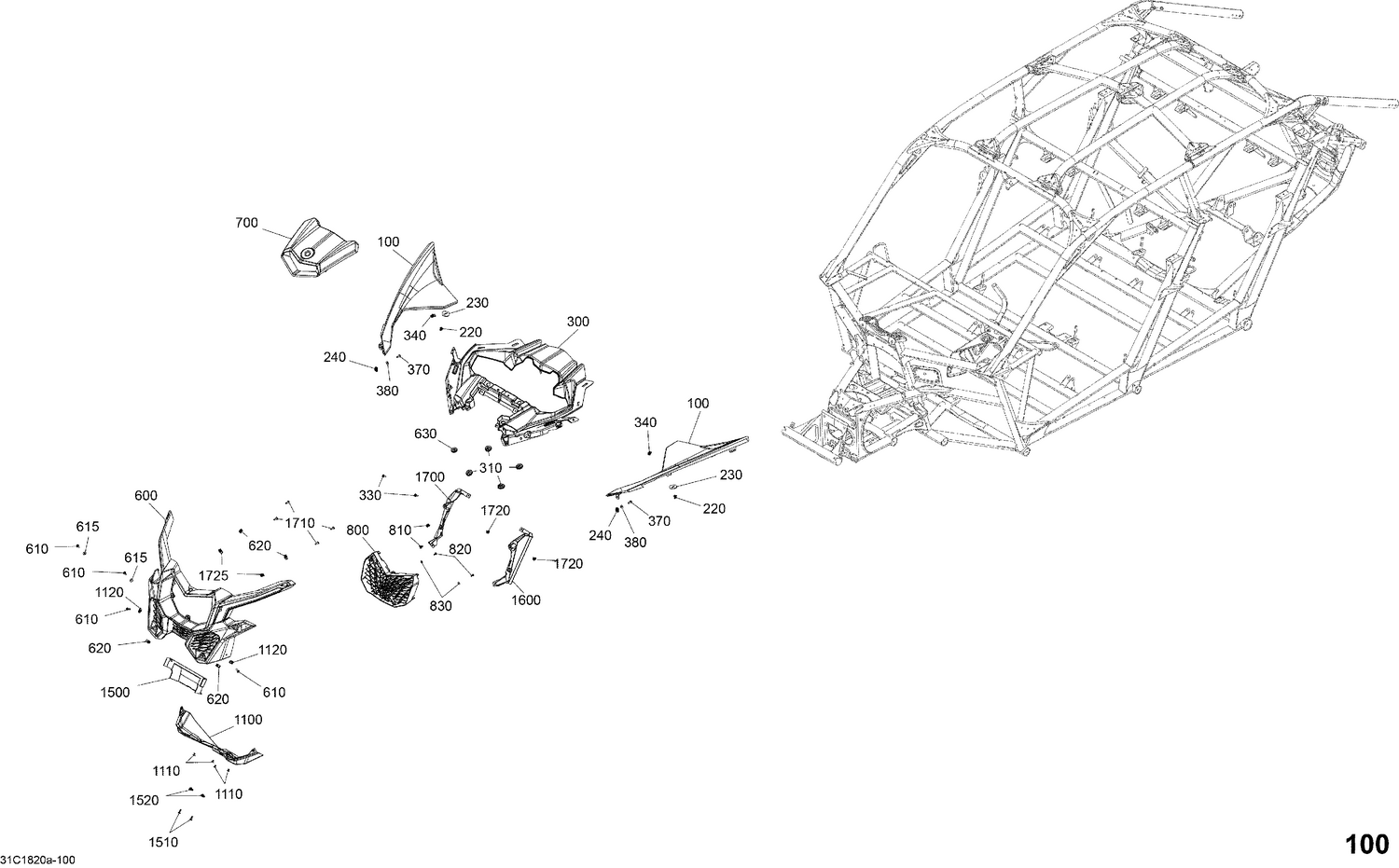

09- Body Parts - Hyper Silver - Package STD - Front Section
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 705012463 | Silver, LH Front Fender |
| 100 | 705014305 | Hyper Silver, RH Front Fender This part replaces 705012464. |
| 220 | 517302785 | Edge Clip |
| 230 | 705003841 | Support Plate |
| 240 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 300 | 705014684 | Central Hood This part replaces 705010671. |
| 310 | 705010718 | Grommet |
| 330 | 250000722 | Torx Screw M6 X 20 |
| 340 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 370 | 250000722 | Torx Screw M6 X 20 |
| 380 | 234062670 | Stainless Steel Flat Washer |
| 600 | 705009508 | Front Facia |
| 610 | 250000722 | Torx Screw M6 X 20 |
| 615 | 234062670 | Stainless Steel Flat Washer |
| 620 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 630 | 517303756 | Grommet |
| 700 | 705012465 | Sunburst Yellow, Facia Cover |
| 800 | 703501021 | Radiator Front Grille This part replaces 705012694. |
| 810 | 517302785 | Edge Clip |
| 820 | 250000720 | Torx Screw K50 X 16 |
| 830 | 250200025 | Washer M5 |
| 1100 | 705009978 | Front Deflector |
| 1110 | 293150103 | Pop Rivet 3/16" |
| 1500 | 705010742 | Lower Radiator deflector |
| 1510 | 250000722 | Torx Screw M6 X 20 |
| 1520 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1600 | 705017559 | LH Front Radiator Deflector This part replaces 705010626. |
| 1700 | 705017560 | RH Front Radiator Deflector This part replaces 705010627. |
| 1710 | 250000722 | Torx Screw M6 X 20 |
| 1720 | 517302785 | Edge Clip |
