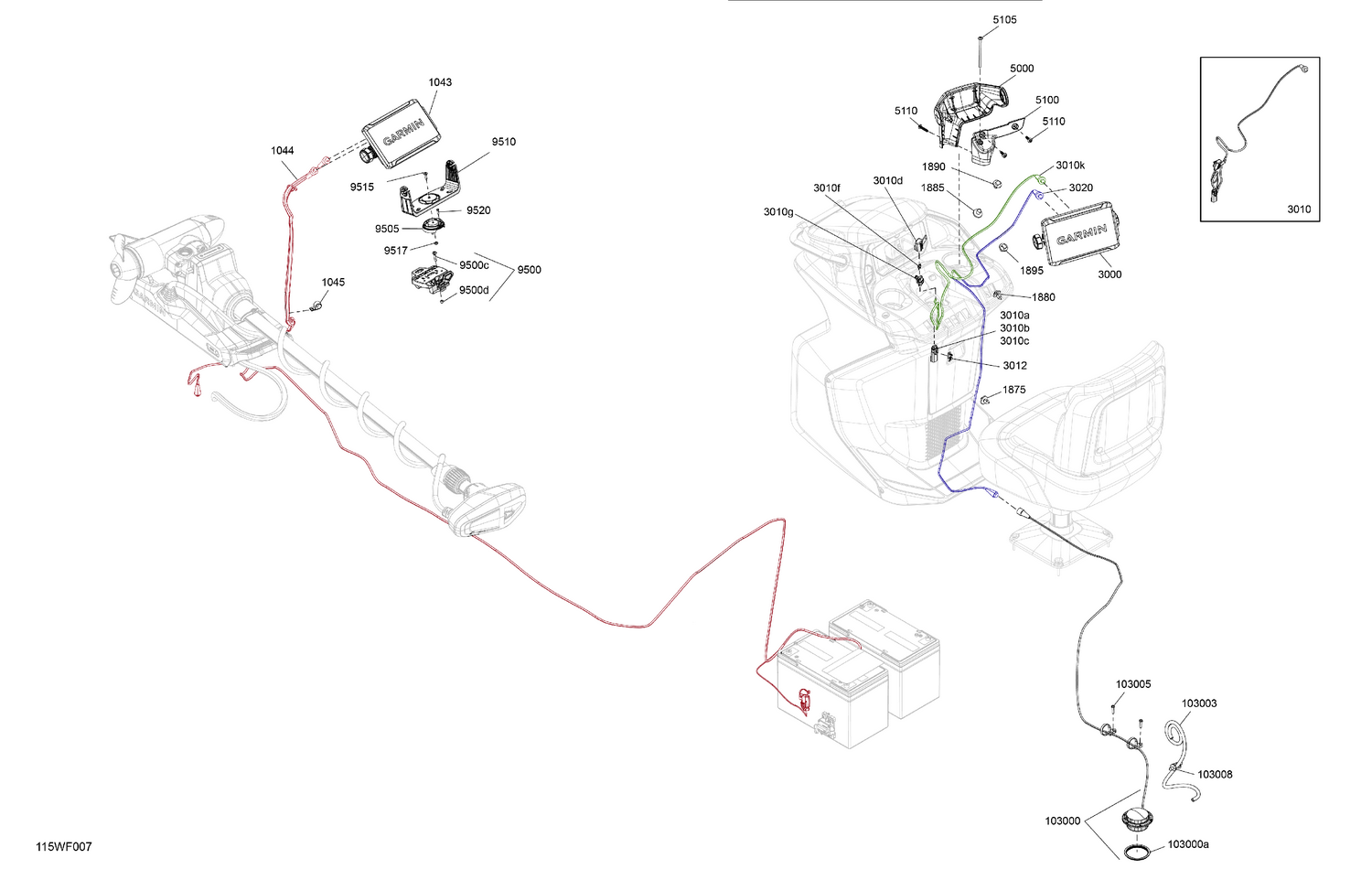

08- ELECTRIC - Garmin ECHOMAP UHD 72sv GPS
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1043 | 278004783 | GPS Receiver |
| 1044 | 278004599 | Echo Sounder Wiring Harness |
| 1045 | 278004679 | Clamp |
| 1875 | 710008294 | Mount Dart |
| 1880 | 710008294 | Mount Dart |
| 1885 | 710008294 | Mount Dart |
| 1890 | 710008294 | Mount Dart |
| 1895 | 710008294 | Mount Dart |
| 3000 | 278004783 | GPS Receiver |
| 3010a | 515178023 | Housing |
| 3010b | 278002860 | Sealing Cap |
| 3010c | 515178013 | Male Terminal |
| 3010d | 710002793 | Cover |
| 3010f | 710001008 | Little Fuse, 3 AMP |
| 3010g | 710002791 | Housing |
| 3010k | 278003975 | Power Supply Cable |
| 3012 | 515178223 | Clip Connector |
| 3020 | 278003982 | Echo sounder Wiring Harness |
| 5000 | 281000213 | Rear GPS Support |
| 5100 | 281000214 | Front GPS Support |
| 5105 | 250001163 | Cone Torx Truss Screw HD.M6 X 100 |
| 5110 | 250000879 | Plastite Torx Screw M6.81X30 |
| 9500c | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 9500d | 232561200 | Brass Elastic Stop Nut M6 |
| 9505 | 269801787 | GPS Base Support |
| 9510 | 269801786 | Front GPS Support |
| 9515 | 250000829 | Torx-Truss M/S Stlss M6 X 20 |
| 9517 | 232561200 | Brass Elastic Stop Nut M6 |
| 9520 | 250000287 | Flange Torx Screw K40 X 16 |
| 103000a | 292002447 | Seal |
| 103003 | 219704389 | Polyurethane Hose 4000MM Long |
| 103005 | 211000023 | Hex. Screw 10-14 X 7/8” |
