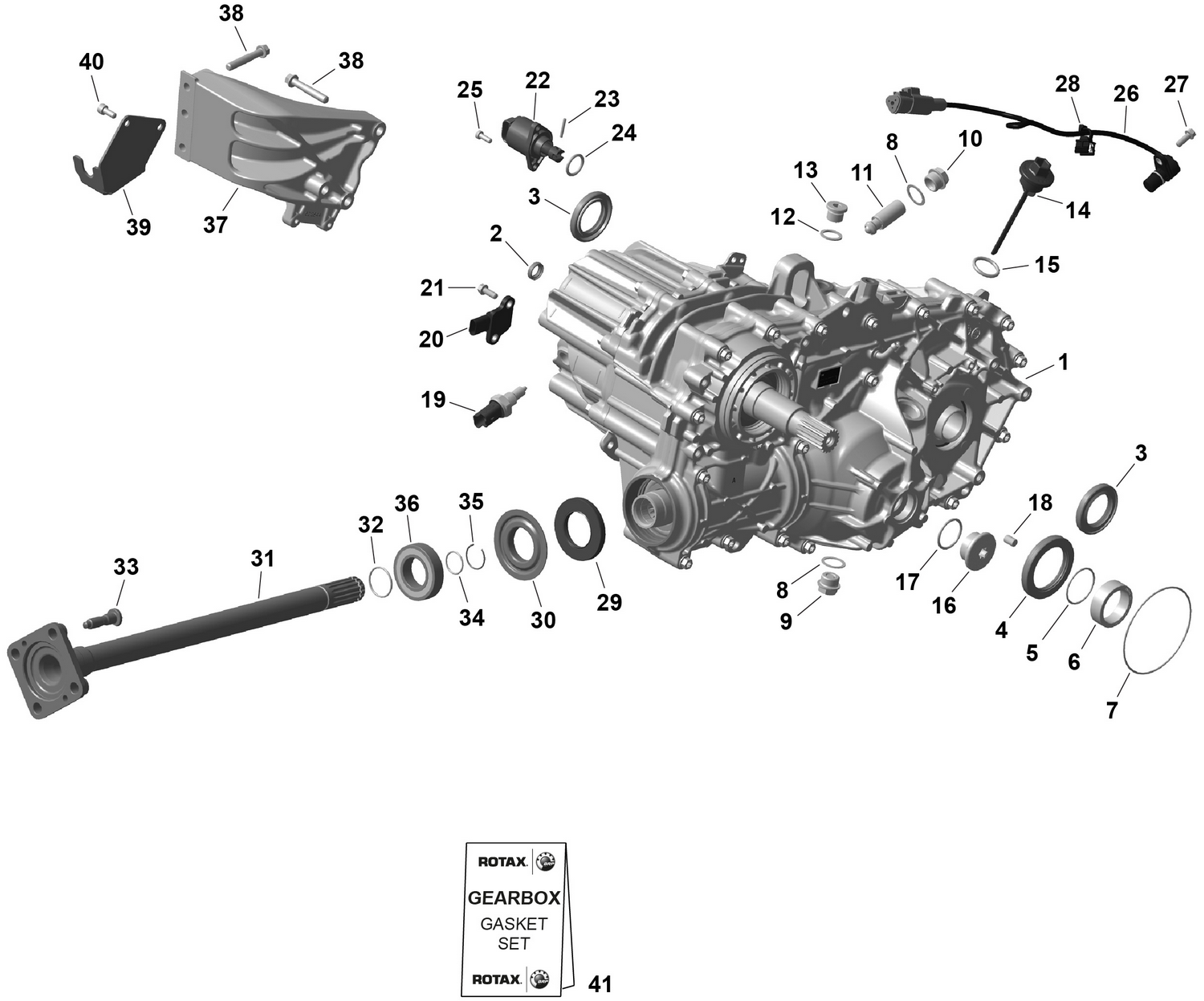

01- ROTAX - Gearbox Assy and Drive Shaft
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 420247593 | Distance RIng |
| 10 | 420841935 | Plug Screw M18 X 1.5 |
| 11 | 420657443 | Plunger |
| 13 | 420240234 | Plug Screw M16 X 1.5 |
| 14 | 420256814 | Oil Dipstick |
| 17 | 420631300 | O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws |
| 18 | 420632014 | Center Pin 8 X 12 |
| 19 | 420640196 | Switch |
| 20 | 420265123 | Angle Rotation Sensor |
| 21 | 420440162 | Torx Flange Screw M6 X 16 |
| 22 | 420265845 | Servomotor |
| 23 | 420932840 | Needle Pin |
| 25 | 420240150 | Allen Screw M5 X 14 |
| 26 | 420265727 | Camshft Position Sensor Ass'y |
| 27 | 420440162 | Torx Flange Screw M6 X 16 |
| 28 | 420651810 | Tie-Rap With Mount |
| 30 | 420626994 | Cover Washer |
| 33 | 420841271 | Collar Stud |
| 35 | 420645032 | Circlip |
| 36 | 420632262 | Ball Bearing 6006 |
| 37 | 420212644 | Gearbox Bracket |
| 38 | 420641208 | Hex. Flange Screw M8 X 45 This part replaces 420940077. |
| 39 | 420841549 | Torx Flange Screw M6 X 25 |
| 40 | 420840394 | Allen Screw M6X14 |
