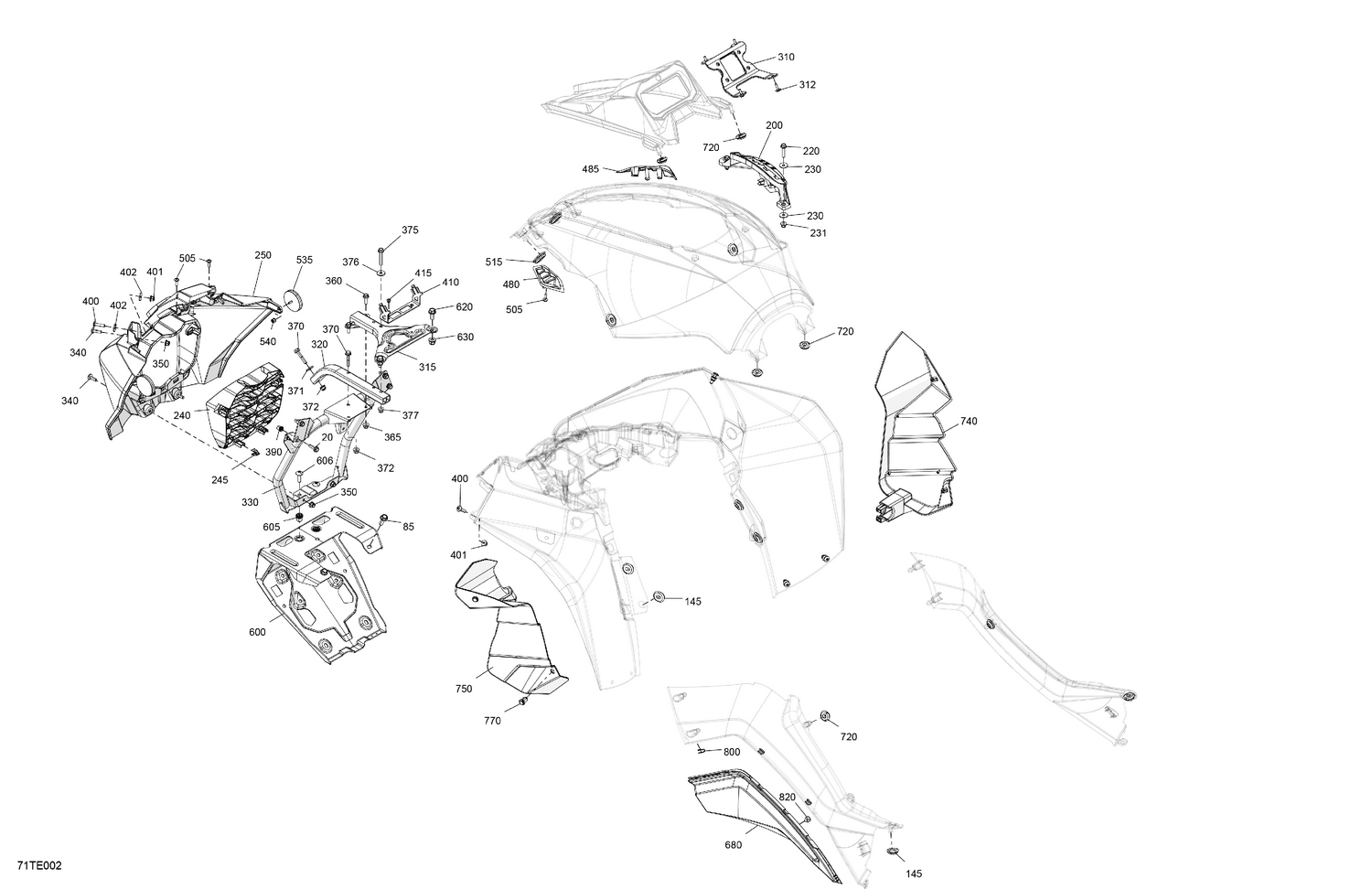

07- Body - Front Section
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 85 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 145 | 705000321 | Oval Washer |
| 200 | 705003838 | Lever Indicator |
| 220 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 230 | 224061201 | Flat Washer |
| 231 | 233261434 | Flange Elastic Nut M6 |
| 240 | 705016533 | Air Inlet Grille |
| 245 | 517306478 | Clip |
| 250 | 705016535 | Front Fascia |
| 310 | 705015168 | Int Gauge Support |
| 312 | 250000725 | Screw M4 X 16 |
| 315 | 705003599 | Bracket |
| 320 | 705016534 | Upper Sectional Bent Tube |
| 330 | 705017182 | Front Fascia Support |
| 340 | 250000712 | Torx Screw M6 X 20 |
| 350 | 233261434 | Flange Elastic Nut M6 |
| 360 | 207662054 | Hex. Flange Screw M6 X 20 |
| 365 | 233261434 | Flange Elastic Nut M6 |
| 370 | 207663544 | Hex. Flange Screw M6 X 35 |
| 371 | 224061201 | Flat Washer |
| 372 | 233261434 | Flange Elastic Nut M6 |
| 375 | 207664044 | Hex. Flange Screw M6 X 40 |
| 376 | 224061201 | Flat Washer |
| 377 | 233261434 | Flange Elastic Nut M6 |
| 390 | 293450275 | Insert |
| 400 | 250000758 | Torx Screw M6 X 25 |
| 401 | 233261434 | Flange Elastic Nut M6 |
| 402 | 224061201 | Flat Washer |
| 410 | 705211722 | Fuse Support |
| 415 | 390402400 | Pop Rivet 3/16" |
| 480 | 705008137 | LH Grille |
| 485 | 705008138 | RH Grille |
| 505 | 250000720 | Torx Screw K50 X 16 |
| 515 | 705003668 | Oblong Grommet |
| 535 | 705017809 | Amber Reflector |
| 540 | 233251434 | Flange Elastic Nut M5 |
| 605 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 606 | 250000874 | Torx Truss M8 X 25 |
| 620 | 207682044 | Hex. Flange Screw M8 X 20 |
| 630 | 233281434 | Hex. Flange Elastic Nut M8 |
| 680 | 705004988 | Panel Extension |
| 720 | 705003264 | Grommet |
| 740 | 705017922 | RH Front Wheel Arch Protector |
| 750 | 705017926 | LH Front Wheel Arch Protector |
| 770 | 293150230 | Tuflok Plastic Rivet |
| 800 | 414479100 | Clip |
