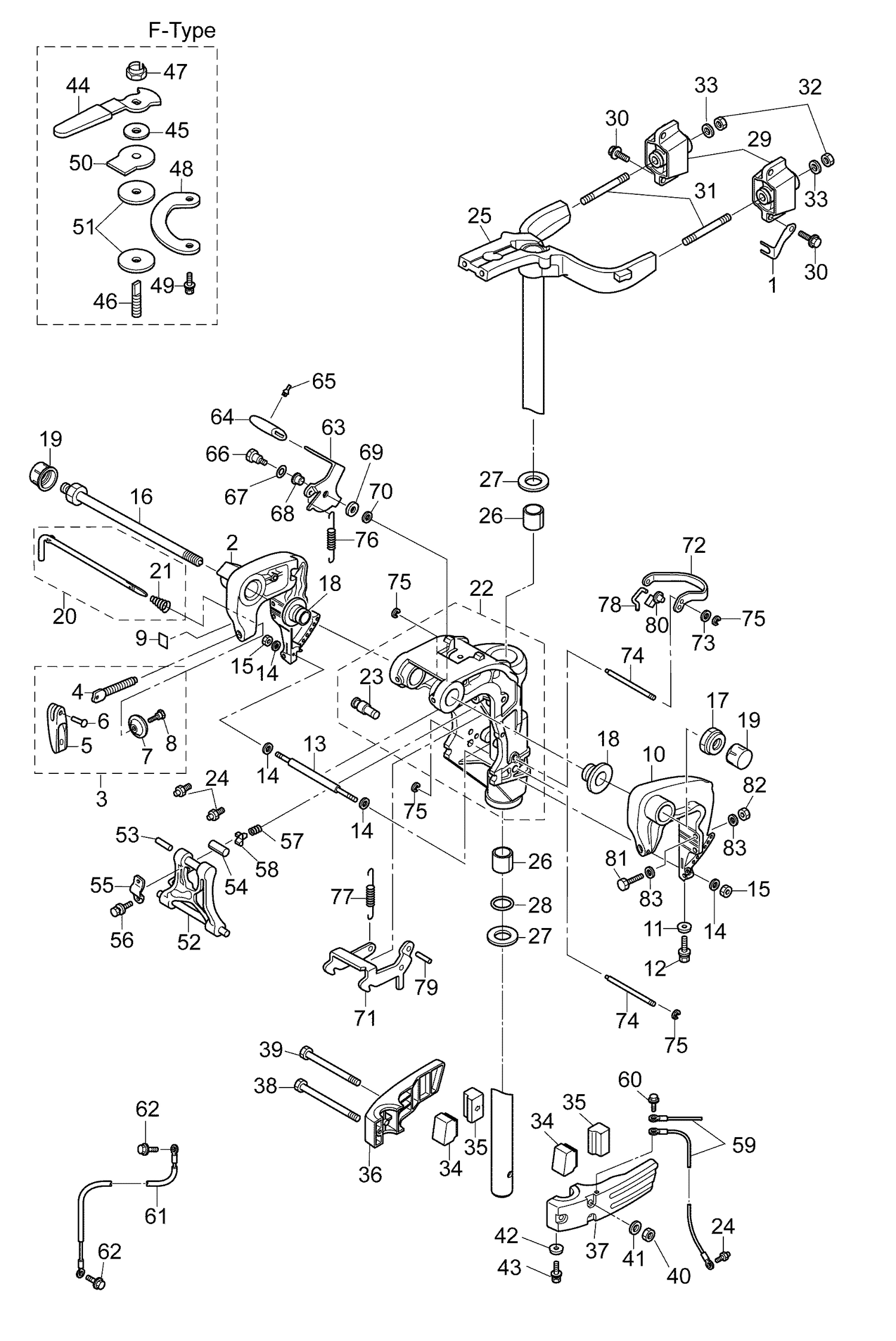

16-4_STERN & SWIVEL BRACKET (MANUAL TILT)
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5041220 | Lock Plate Water Pipe |
| 3 | 5040358 | CLAMP SCREW KIT |
| 12 | 5041533 | BOLT |
| 13 | 5041462 | DISTANCE PIECE |
| 17 | 5040069 | NYLON NUT 7/8 |
| 18 | 5040087 | BUSHING 26-32 |
| 20 | 5040677 | THRUST ROD ASSEMBLY |
| 22 | 5041860 | SWIVEL BRACKET ASSEMBLY |
| 24 | 5040055 | GREASE FITTING |
| 25 | 5041866 | STEERING SHAFT ASSEMBLY |
| 26 | 5041211 | Bushing 28-31-35 |
| 27 | 5041083 | THRUST PLATE |
| 28 | 5041082 | O-Ring 3.5-25.7 |
| 31 | 5041209 | Stud Bolt 10-95 |
| 32 | 5041656 | NYLON NUT |
| 34 | 5040675 | DAMPER (LOWER) |
| 35 | 5040674 | RUBBER MOUNT (LOWER) |
| 38 | 5041554 | BOLT |
| 39 | 5041555 | BOLT |
| 41 | 5041138 | Washer 8.1-16-1.5 |
| 43 | 5041533 | BOLT |
| 52 | 5041871 | TILT STOPPER |
| 53 | 5041688 | SPRING PIN |
| 54 | 5040094 | BUSHING 8.2-10-26.5 |
| 55 | 5040095 | SETTING PLATE |
| 56 | 5041567 | BOLT |
| 57 | 5040771 | FRICTION SPRING |
| 58 | 5040072 | SETTING PIECE TILT STOPPER |
| 61 | 5040243 | GROUND L=130 |
| 62 | 5041557 | BOULON This part replaces 5041530. |
| 63 | 5040575 | REVERSE LOCK LEVER |
| 64 | 5040488 | REVERSE LOCK LEVER GRIP |
| 65 | 5040081 | STOPPER REVERSE LOCK LEVER GRIP |
| 66 | 5040486 | SHOULDER BOLT |
| 67 | 5041669 | WASHER |
| 68 | 5040485 | BUSHING |
| 71 | 5040579 | REVERSE LOCK |
| 72 | 5040576 | REVERSE LOCK ARM |
| 73 | 5040570 | COLLAR |
| 74 | 5040836 | REVERSE LOCK SHAFT B |
| 75 | 5041681 | E-RING |
| 76 | 5040580 | REVERSE LOCK LEVER SPRING |
| 77 | 5040578 | REVERSE LOCK SPRING |
| 78 | 5040574 | REVERSE LOCK LINK |
| 79 | 5041687 | SPRING PIN |
| 80 | 5040058 | Rod Snap 3.5-2 |
