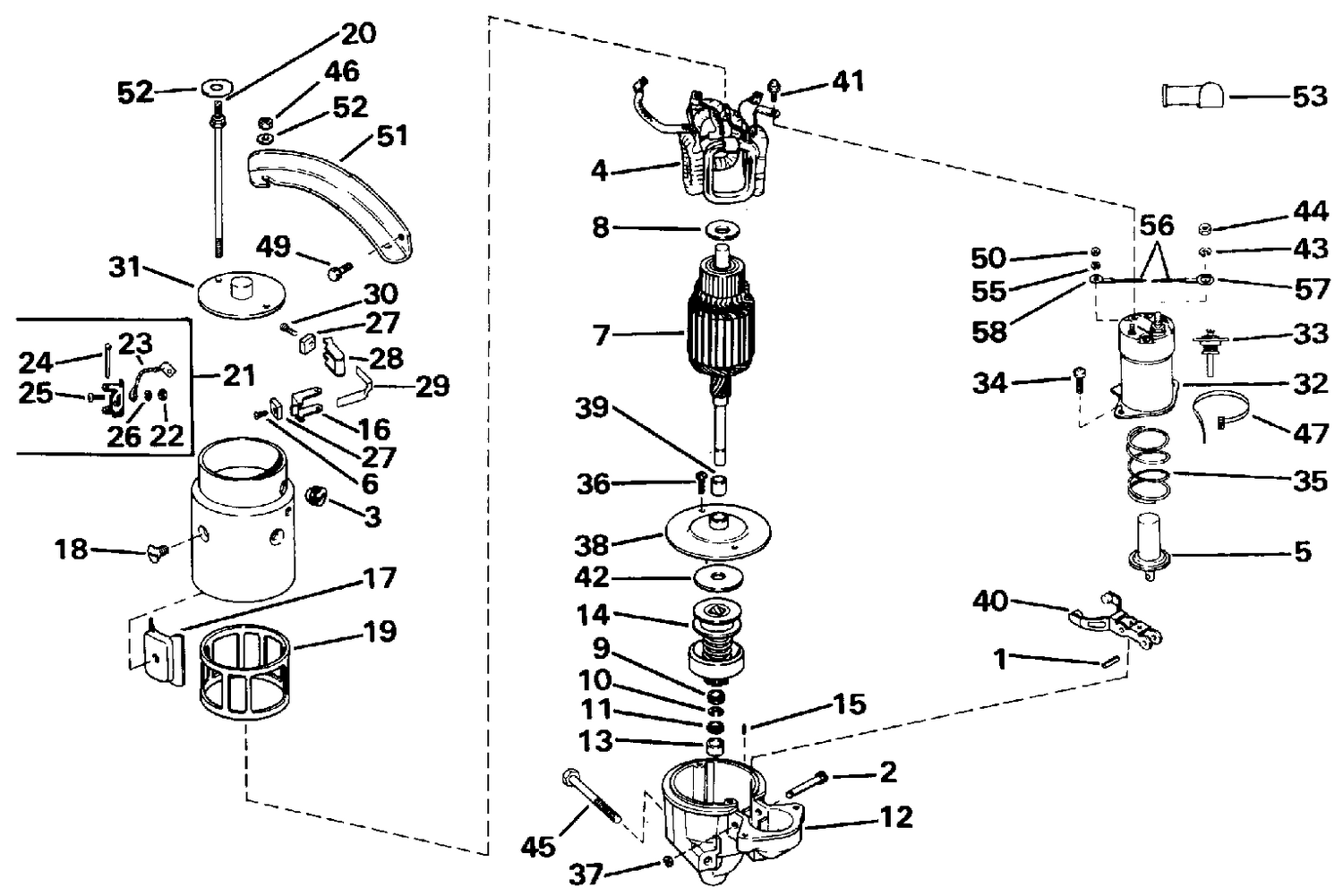

STARTER MOTOR

STARTER MOTOR

Parts (52)

RefPart NumberDescription
1 3853185 PIN, Plunger attaching This part replaces 0914396.
2 3853188 STUD, Shift lever This part replaces 0914399.
3 3852716 GROMMET, Field frame This part replaces 0913524.
4 3853999 FIELD COIL This part replaces 0985806.
5 3853186 PLUNGER This part replaces 0914397.
6 0327953 SCREW ,Ground brush
7 3853875 ARMATURE This part replaces 0985805.
8 3852727 WASHER, Drive stop This part replaces 0913535.
9 3852725 COLLAR, Pinion stop This part replaces 0913533.
10 3852726 COLLAR STOP This part replaces 0913534.
11 3852724 COLLAR THRUST This part replaces 0913532.
12 3853181 DRIVE HSG (incl bushing) This part replaces 0914392.
13 3852723 BUSHING, Drive end This part replaces 0913531.
14 3853874 DRIVE ASSY This part replaces 0985804.
15 3853183 DOWEL PIN, Drive end This part replaces 0914394.
16 3853873 BRUSH HOLDER, Grounded This part replaces 0985803.
17 3853191 POLE SHOE This part replaces 0914402.
18 3853192 SCREW, Pole shoe This part replaces 0914403.
19 3853235 INSULATOR, Field coil This part replaces 0914454.
20 3852722 THRU BOLT This part replaces 0913530.
20 3853872 THRU BOLT & STUD This part replaces 0985802.
21 3853871 SUPPORT PACKAGE This part replaces 0985801.
23 3853190 LEAD, Brush ground This part replaces 0914401.
24 3853184 PIN, Support This part replaces 0914395.
25 0303394 SCREW, Support
27 3852721 BRUSH This part replaces 0913529.
28 3853866 BRUSH HOLDER, Insulated This part replaces 0985796.
29 3852720 SPRING, Brush This part replaces 0913528.
31 3853870 CONNECTOR, Oil filter This part replaces 0985800.
32 3853869 SOLENOID SWITCH This part replaces 0985799.
33 3852719 CONTACT ASSY., Switch This part replaces 0913527.
34 3852459 SCREW, Switch This part replaces 0908769.
35 3852718 SPRING, Plunger return This part replaces 0913526.
36 3853959 SCREW This part replaces 0986335.
37 3853187 RETAINING RING This part replaces 0914398.
38 3853868 PLATE & BUSHING This part replaces 0985798.
39 3852717 BUSHING, Center This part replaces 0913525.
40 3853189 LEVER, Shift This part replaces 0914400.
41 0319614 SCREW, Bar clamp
42 3852715 THRUST WASHER This part replaces 0913523.
43 3852521 LOCK WASHER, Metric This part replaces 0911146.
44 3852519 NUT, Starter solenoid, metric This part replaces 0911144.
45 0315782 SCREW, Starter
49 3853398 SCREW, Clamp to cylinder head This part replaces 0915007.
50 3852518 NUT, Solenoid, metric This part replaces 0911143.
51 3852594 BRACKET This part replaces 0912344.
52 0306407 LOCCKWASHER,Cover latch
53 3852487 BOOT, Battery cable This part replaces 0910111.
55 3852520 LOCK WASHER, Ground This part replaces 0911145.
56 3853963 LEAD, Starter motor This part replaces 0986345.
57 3852527 RING TERMINAL This part replaces 0911523.
0984456 3860566 Motor Ay This part replaces 0984456.
