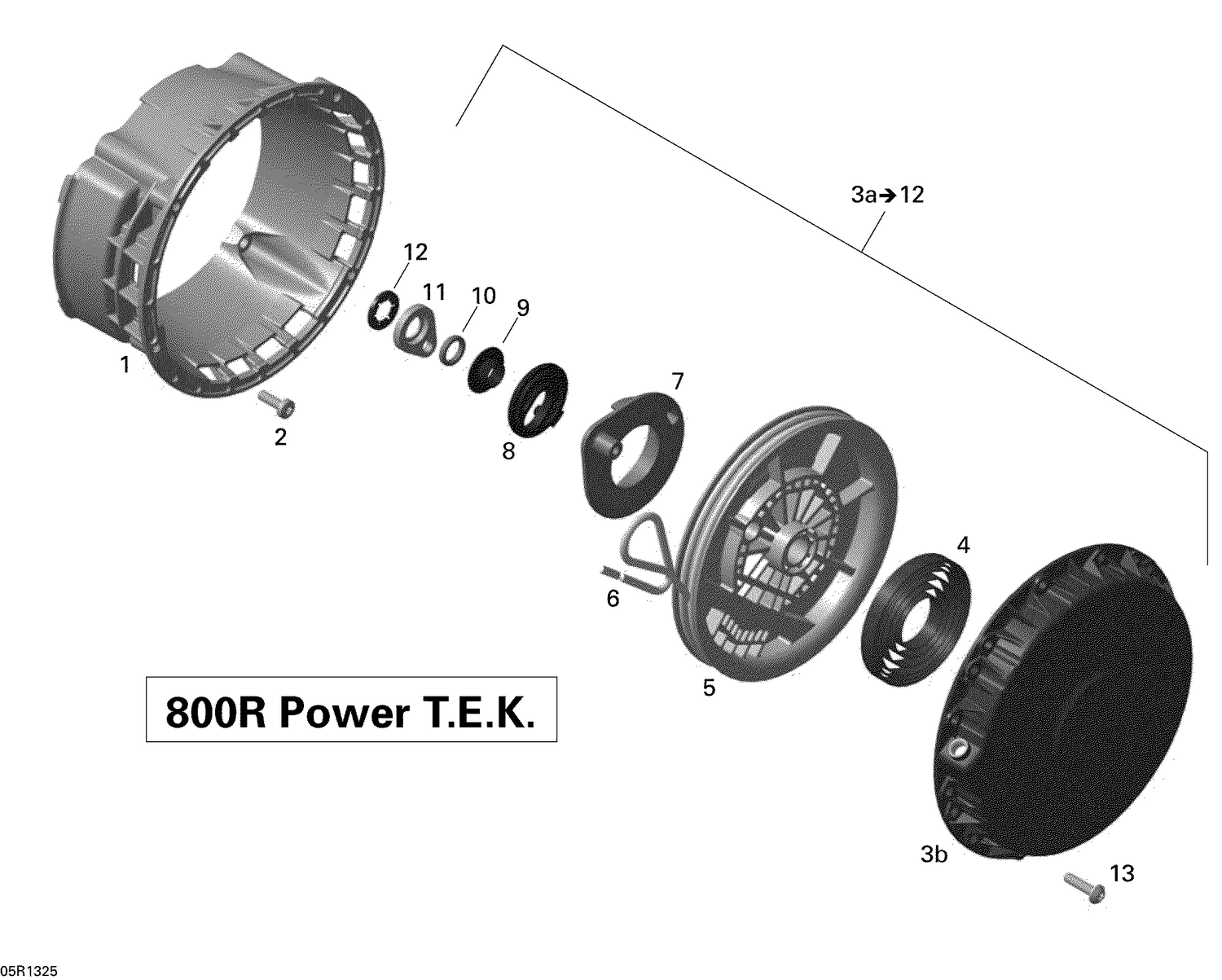

04- Rewind Starter
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420812941 | Flange Connector |
| 2 | 420441386 | Torx Flange Screw M6 X 20 This part replaces 420941256. |
| 3b | 420910256 | Starter Housing |
| 4 | 420939115 | Rewind Spring |
| 5 | 420852288 | Rope Sheave |
| 6 | 219704403 | Was 412500100 Rope-Starter |
| 7 | 420852633 | Pawl This part replaces 420852295. |
| 8 | 420852640 | Pawl Lock |
| 9 | 420847926 | Stage Sleeve |
| 10 | 420250407 | O-Ring |
| 11 | 420852520 | Lock Ring |
| 12 | 420845560 | Locking Element |
