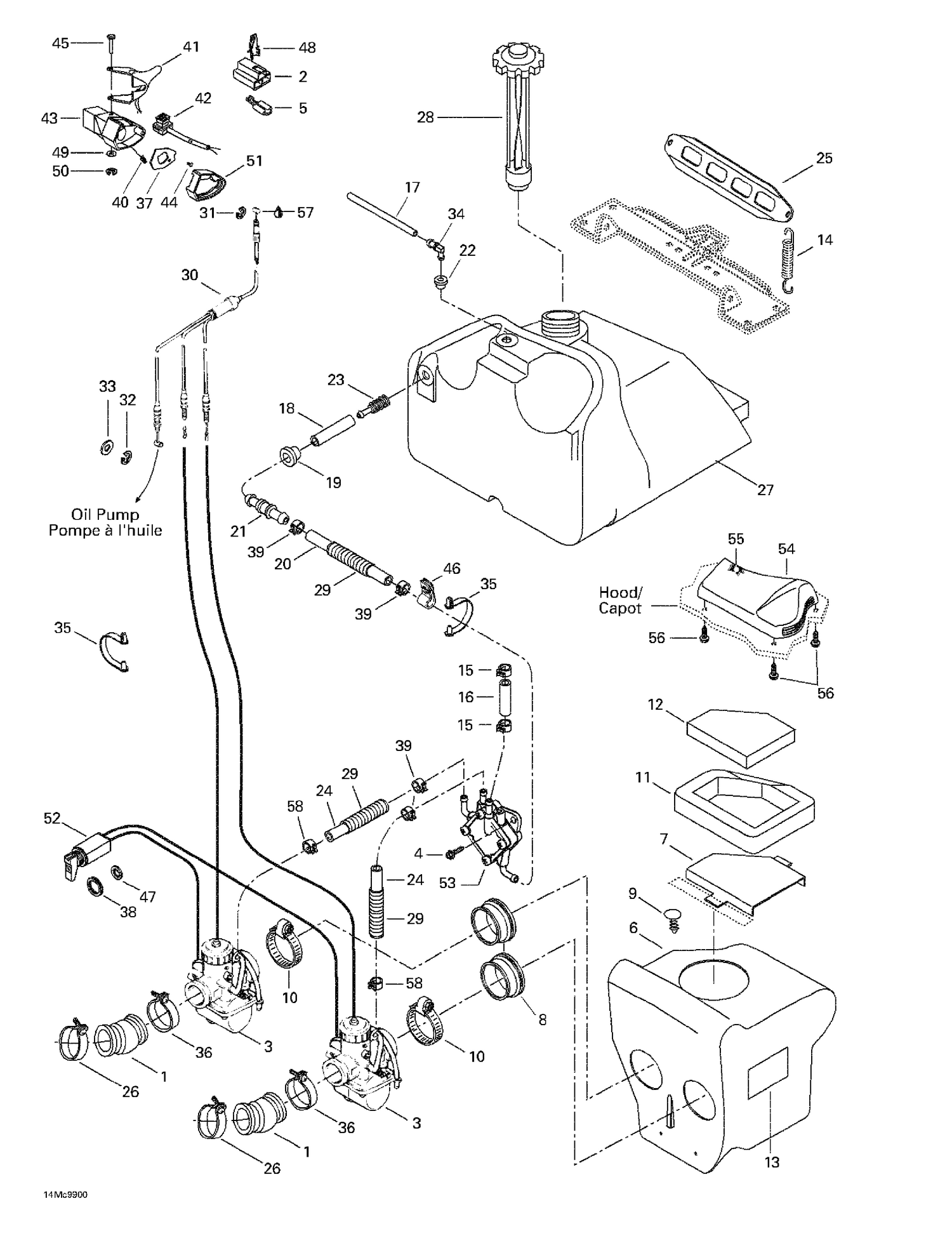

| Ref | Part Number | Description |
|---|
| 1 |
570066800 |
CARBURATOR ADAPTOR - Call your local BRP dealership |
| 2 |
409008500 |
Female Terminal Housing (3 circuits) |
| 3 |
403138543 |
Carburetor VM 34-530 (PTO) |
| 4 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 732600002. |
| 5 |
515175253 |
FEMALE TERMINAL - Call your local BRP dealership |
| 7 |
517285900 |
Intake Grill |
| 8 |
570043600 |
Adaptor 34 mm |
| 9 |
414644300 |
Black, Dart |
| 10 |
408801600 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 11 |
415106000 |
Lower Foam |
| 12 |
415037600 |
Air Filter |
| 13 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516000130. |
| 14 |
517182100 |
SPRING - Call your local BRP dealership |
| 15 |
414415200 |
Spring Clamp |
| 16 |
219704549 |
Hose This part replaces 219704439. |
| 17 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 18 |
Not |
Available As Spare Part - Fuel Line |
| 19 |
570045500 |
Grommet |
| 20 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 21 |
414518500 |
Male Connector |
| 22 |
709200285 |
Grommet This part replaces 570135100. |
| 23 |
414865700 |
Fuel Filter |
| 24 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 25 |
517249200 |
Fuel Tank Bracket |
| 26 |
414532700 |
COLLAR - Call your local BRP dealership |
| 27 |
572093100 |
Fuel Tank |
| 28 |
415074400 |
Fuel Tank Cap |
| 29 |
219704407 |
Tubing 10 MM 1000MM Long |
| 30 |
414883100 |
THROTTLE CABLE AND HOUSING - Call your local BRP dealership |
| 31 |
414274500 |
Circlip |
| 32 |
414753500 |
Circlip |
| 33 |
234081100 |
Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 34 |
414814100 |
Male Connector |
| 35 |
414379300 |
CABLE CLIP - Call your local BRP dealership |
| 36 |
408803800 |
Gear Clamp (47 mm) |
| 37 |
512060390 |
Plate This part replaces 572099400. |
| 38 |
512059364 |
NUT-PLASTIC - Call your local BRP dealership This part replaces 414977200. |
| 39 |
414554800 |
Spring Clamp |
| 40 |
414440800 |
Socket Set Screw M8 X 10 |
| 41 |
512060214 |
Handle Ass'y This part replaces 572085900. |
| 42 |
515177362 |
Emergency Stop Switch This part replaces 414612700. |
| 43 |
512060603 |
Throttle Housing This part replaces 572086700. |
| 44 |
414473200 |
Screw |
| 45 |
414438700 |
Lever Pin |
| 46 |
415018200 |
CLIP - Call your local BRP dealership |
| 47 |
394103300 |
Lock Washer, Interior Teeth |
| 48 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 49 |
234051600 |
Flat Washer M5, Stainless This part replaces 414438900. |
| 50 |
414439000 |
Circlip |
| 51 |
572044600 |
THROTTLE COVER - Call your local BRP dealership |
| 52 |
414967000 |
CHOKE CABLE - Call your local BRP dealership |
| 53 |
403801000 |
Fuel Pump |
| 54 |
572077900 |
INTAKE COVER - Call your local BRP dealership |
| 55 |
414972600 |
Air Filter |
| 56 |
243141630 |
Hex. Plastic Screw M4.8 X 16 This part replaces 732603009. |
| 57 |
293550004 |
Dielectric Grease, 150 g This part replaces 413701700. |
| 403138544 |
Carburetor |
VM 34-531 (MAG) 403138544 |
