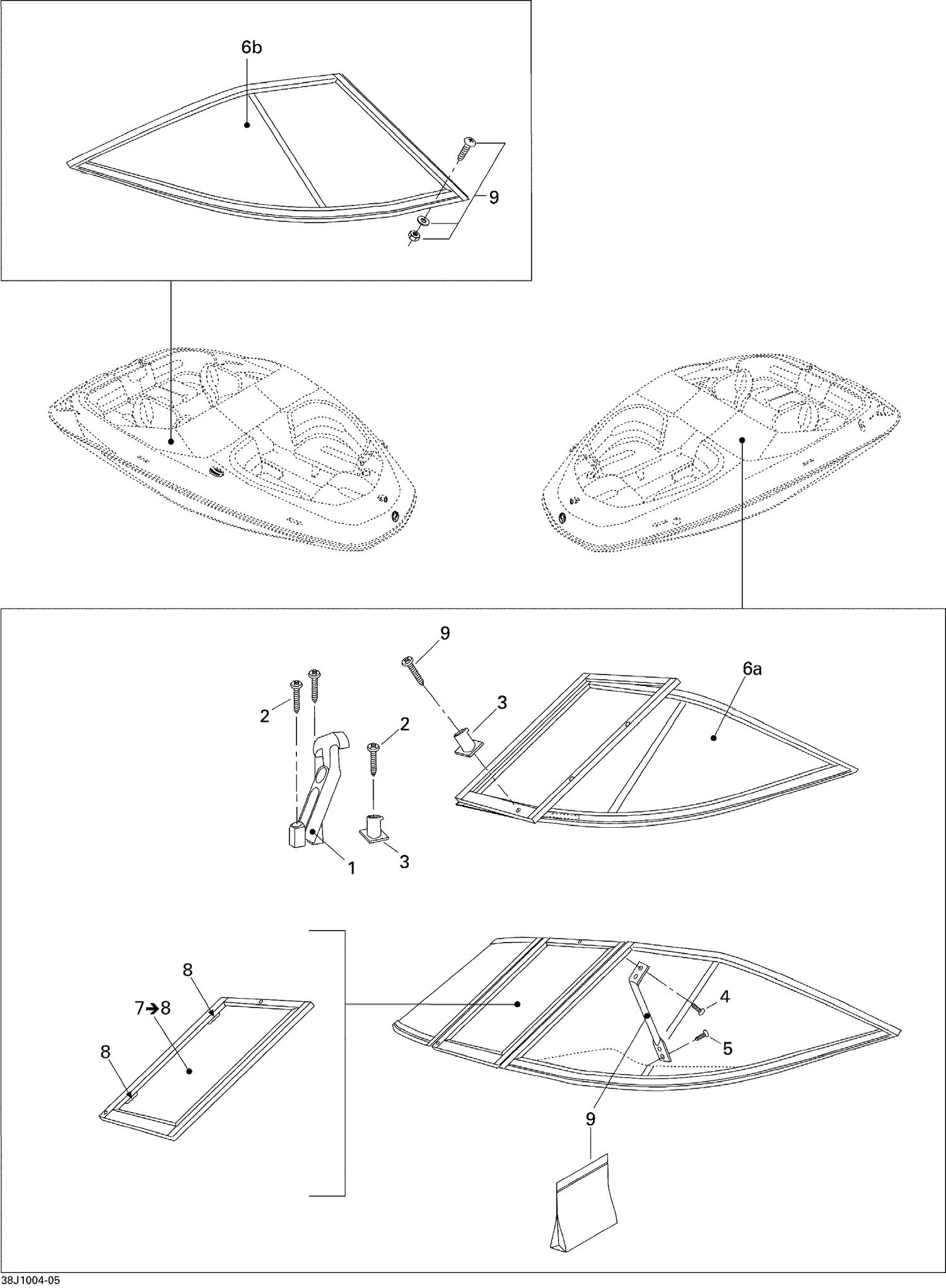

| Ref | Part Number | Description |
|---|
| 1 |
204071291 |
DOOR STRAP - Call your local BRP dealership |
| 2 |
204100081 |
SCREW #8 X 1-1/4? - Call your local BRP dealership |
| 3 |
204071376 |
STRAP KEEPER - Call your local BRP dealership |
| 4 |
211000180 |
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership |
| 5 |
202000203 |
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership |
| 6a |
204440056 |
SIDE WINDSHIELD ASS'Y, PORT SIDE - Call your local BRP dealership |
| 6b |
204440058 |
SIDE WINDSHIELD ASS'Y, STARBOARD - Call your local BRP dealership |
| 8 |
204071572 |
DOOR LATCH - Call your local BRP dealership |
