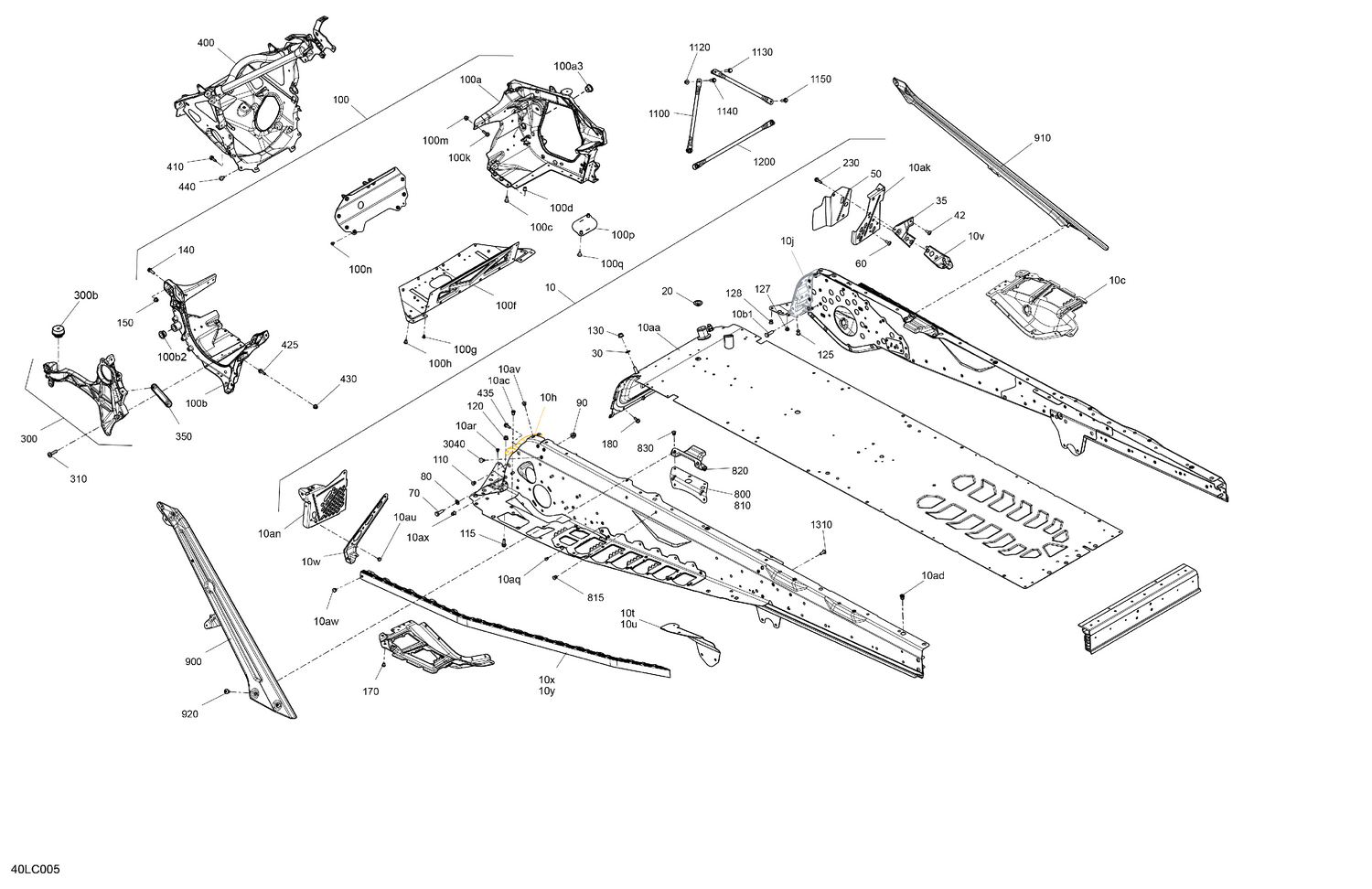

| Ref | Part Number | Description |
|---|
| 10aa |
518332622 |
Radiator |
| 10ac |
605636003 |
Clinch Nut M6 Hexsert |
| 10ad |
293450275 |
Insert |
| 10ak |
518330540 |
RH Footrest 500MM |
| 10an |
518330541 |
LH Footrest 500MM |
| 10aq |
390909100 |
Avex Rivet |
| 10ar |
390909200 |
Avex Rivet |
| 10au |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 10av |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10aw |
293150266 |
Rivet Ornit 6,5 X 14.5 |
| 10ax |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10b1 |
250300027 |
Clinch Stud M6 X 20 |
| 10c |
518332805 |
RH Drive Axle Cover |
| 10h |
518329368 |
LH Frame Corner 20 |
| 10j |
518329369 |
RH Molded Spacer |
| 10t |
518330538 |
LH Rear Support |
| 10u |
518330539 |
RH Rear Support |
| 10v |
518329789 |
RH Footrest Reinforcement |
| 10w |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10x |
518330282 |
RH Roller |
| 10y |
518330281 |
LH Roller |
| 20 |
293730052 |
Black, Plug |
| 30 |
234081430 |
Flat Washer M8 |
| 35 |
518331727 |
RH Stirrup Reinforcement |
| 42 |
250000717 |
Torx Head Screw M6 X 16 |
| 50 |
518330928 |
Heat Shield |
| 60 |
250000717 |
Torx Head Screw M6 X 16 |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a3 |
505072690 |
Leg Bushing |
| 100b2 |
505072690 |
Leg Bushing |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100f |
518332715 |
Bottom Plate |
| 100g |
390909100 |
Avex Rivet |
| 100h |
293450268 |
Insert M5 X 0.8 |
| 100k |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100m |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100n |
390909100 |
Avex Rivet |
| 100p |
518332276 |
Oil Plate |
| 100q |
250000767 |
Torx Truss Screw M6 X 12 |
| 110 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 115 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 125 |
293150268 |
Rivet Ornit 6,5 X 18.5 |
| 127 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 128 |
293150266 |
Rivet Ornit 6,5 X 14.5 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 170 |
293450268 |
Insert M5 X 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 300b |
512061516 |
Vibration Damper |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 350 |
518331740 |
LH Front Chassis Reinforcement |
| 400 |
518334551 |
Chassis Suspension Module Ass'y This part replaces 518332098. |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 425 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 430 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 435 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 440 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 800 |
518331729 |
LH Under Chassis Reinforcement |
| 810 |
518331731 |
RH Under Chassis Reinforcement |
| 815 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 820 |
518331733 |
Cross Member Support |
| 830 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 900 |
518334728 |
Viper Red, LH Diagonal Cross Member Ass'y |
| 910 |
518334734 |
Viper Red, RH Diagonal Cross Member Ass'y |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329370 |
Upper Colomn Support |
| 1120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1150 |
207562054 |
Hex. Flange Screw S.GRIP M6 X 20 |
| 1200 |
518329756 |
Center Colomn Support |
| 1310 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
