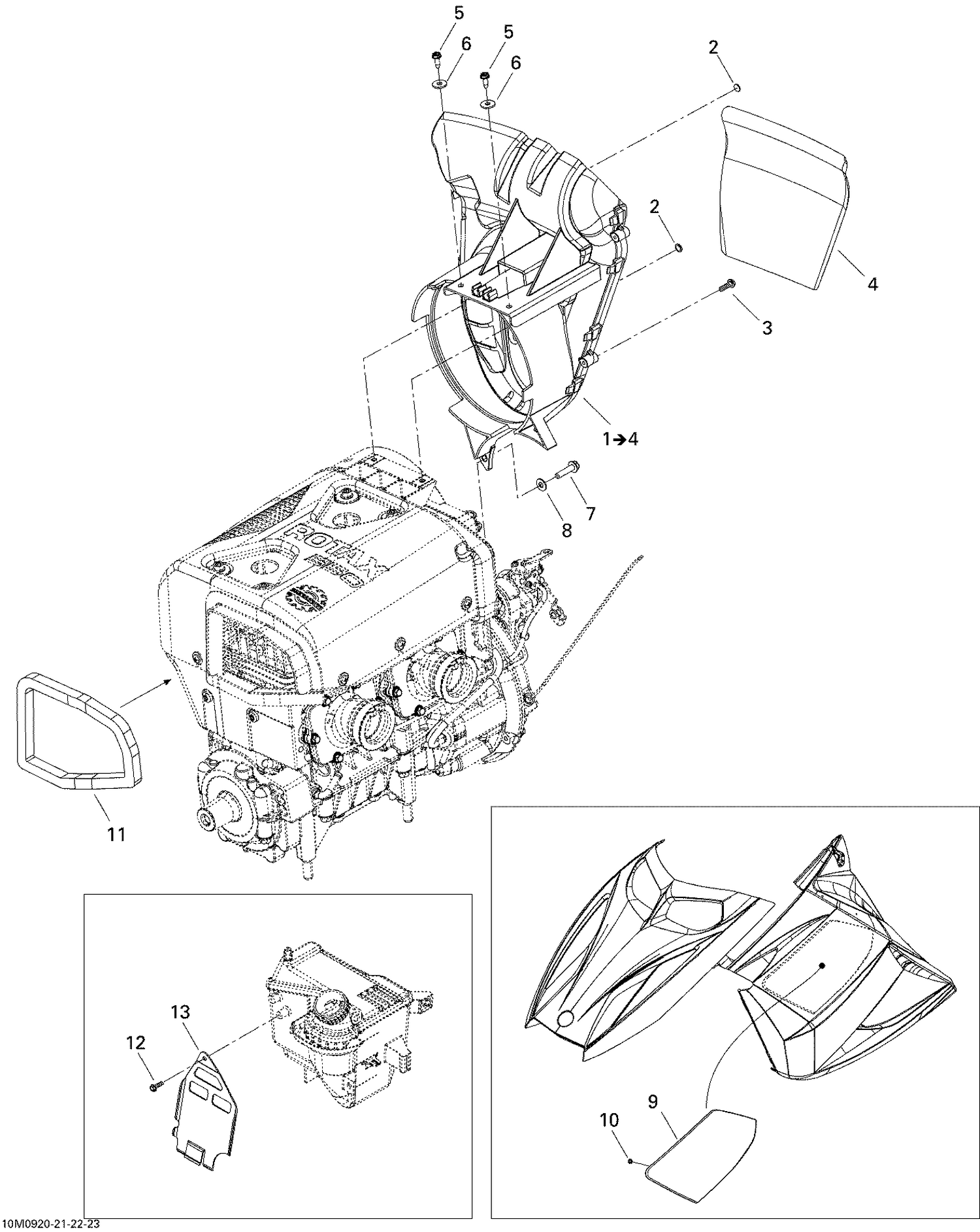

01- Cooling System
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 389804300 | Push Nut |
| 3 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 4 | 514054014 | Reflective Sheet |
| 5 | 250000202 | Self Tapping Screw #8 X 5/8 This part replaces 250000222. |
| 6 | 391301600 | Washer |
| 7 | 210262550 | Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 8 | 224061121 | Flat Washer |
| 9 | 509000318 | AIR OUTLET DEFLECTOR - Call your local BRP dealership |
| 10 | 732610072 | Push Nut |
| 11 | 508000450 | Engine Foam |
| 12 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 13 | 509000257 | DEFLECTOR - Call your local BRP dealership |
