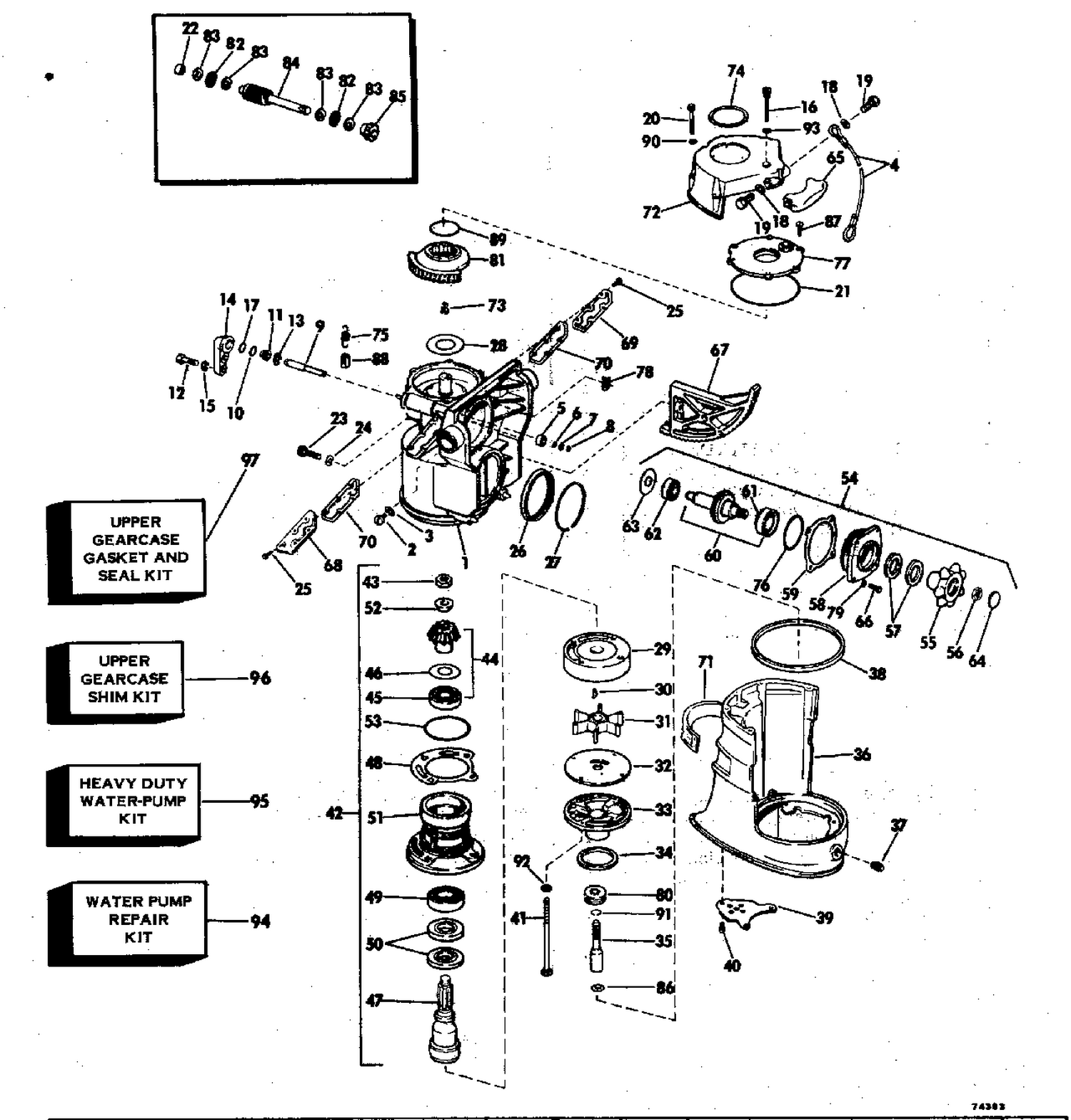

| Ref | Part Number | Description |
|---|
| 1 |
0980805 |
GEAR HOUSING AND BUSHING ASSY |
| 4 |
0980025 |
CABLE ASSEMBLY, Ground |
| 5 |
0308883 |
BUSHING |
| 6 |
0909048 |
REAL RING, Shaft |
| 7 |
0314390 |
RETAINER |
| 8 |
0911317 |
RETAINING RING, Shaft This part replaces 0313236. |
| 9 |
0908890 |
SPACER SHAFAT |
| 10 |
0909139 |
QUAD RING, Retainer |
| 11 |
0908871 |
RETAINER, Steering worm |
| 12 |
0305282 |
BOLT, Bowl & suction piece |
| 13 |
0911316 |
RETAINING RING This part replaces 0313238. |
| 14 |
0908870 |
BRACKET Steering worm ret |
| 15 |
0307708 |
RONDELLE GROWER |
| 16 |
0980657 |
INDICATOR PLUG, Cover |
| 17 |
0909140 |
O RING, Retainer backup |
| 18 |
0307708 |
RONDELLE GROWER |
| 20 |
0981185 |
SCREW, Cover to base This part replaces 0909171. |
| 21 |
0313175 |
O RING, Cover |
| 22 |
0308883 |
BUSHING |
| 23 |
0308843 |
SCREW, Gearcase to housing |
| 24 |
0120177 |
L'WASHER, Alternator to brkt |
| 26 |
0308768 |
EXHAUST SEAL |
| 27 |
0308590 |
SPRING, Seal |
| 28 |
0313220 |
SHIM |
| 29 |
0983298 |
IMPELLER HOUSING This part replaces 0313172. |
| 31 |
0379475 |
IMPELLER ASSEMBLY |
| 32 |
0313176 |
IMPELLER HOUSING PLATE |
| 33 |
0910239 |
SWIVEL HOUSING This part replaces 0313155. |
| 34 |
0310648 |
THRUST WASHER |
| 35 |
0909753 |
DRIVESHAFT This part replaces 0909114. |
| 36 |
0907742 |
EXHAUST HOUSING |
| 37 |
0313221 |
PLUG, Exhaust housing |
| 38 |
0308596 |
SEAL, Exhaust hosing |
| 39 |
0313541 |
PLATE, Back pressure |
| 41 |
0313540 |
SCREW, Housing |
| 42 |
0979706 |
BEARING HOUSING ASSY |
| 42 |
0979926 |
BEARING HOUSING ASSY |
| 42 |
0981094 |
BEARING HOUSING ASSY |
| 42 |
0981230 |
BEARING HOUSING ASSY |
| 43 |
0907866 |
LOCKNUT |
| 44 |
0098116 |
PINION GEAR & BUSHING ASSY |
| 44 |
0979855 |
PINION GEAR & BEARING ASSY |
| 44 |
0979925 |
PINION GEAR & BEARING ASSY |
| 44 |
0981219 |
PINION GEAR & BEARING ASSY |
| 46 |
0313192 |
SHI,Thrust washer,.002" |
| 46 |
0313193 |
SHIM BRG.TO PINION,.003" |
| 46 |
0313194 |
PINION,.005" |
| 46 |
0313195 |
SHIM, Bearing to pinion , .005" |
| 46 |
0313196 |
SHIM, Bearing to pinion .006" |
| 46 |
0313197 |
SHIM, Bearing to pinion 0.007 inch |
| 46 |
0313198 |
SHIM, Bearing to pinion 0.008 inch |
| 46 |
0313199 |
SHIM, Bearing to pinion 0.009 inch |
| 46 |
0313200 |
SHIM, Bearing to pinion 0.010 inch |
| 47 |
0907738 |
DRIVESHAFT, Upper |
| 47 |
0909121 |
DRIVESHAFT Upper |
| 48 |
0313185 |
SHIM, Bearing housing, .005" |
| 48 |
0313186 |
SHIM, Bearing housing, .006" |
| 48 |
0313187 |
SHIM, Bearing housing, .007" |
| 48 |
0313188 |
SHIM, Bearing housing, .008" |
| 48 |
0313189 |
GASKET,Screw plug |
| 48 |
0313190 |
SHIM, Bearing housin, 0010 |
| 49 |
0382165 |
ROLLER BEARING, Lover |
| 50 |
0981268 |
SEAL, Bearing retainer This part replaces 0981587. |
| 51 |
0910240 |
BEARING HOUSING This part replaces 0907734. |
| 52 |
0909123 |
CENTERING CONE |
| 54 |
0980752 |
BALL GEAR & SHAFT ASSY |
| 54 |
0980753 |
BALL GEAR & SHAFT ASSY |
| 54 |
0980754 |
BALL GEAR & SHAFT ASSY |
| 54 |
0980755 |
BALL GEAR & SHAFT ASSEMBLY |
| 55 |
0908069 |
BALL DEAR, Shaft |
| 56 |
0908064 |
NUT |
| 57 |
0981196 |
OIL RETAINER |
| 58 |
0313184 |
BEARING RETAINER |
| 59 |
0313202 |
SHIM, Retainer hsg. 0.002" |
| 59 |
0313203 |
SHIM, Retainer hsg. 0.003" |
| 59 |
0313204 |
SHIM, Retainer hsg. 0.004" |
| 59 |
0313205 |
SHIM, Retainer hsg. 0.005" |
| 59 |
0313206 |
SHIM, Retainer hsg. 0.010" |
| 60 |
0980480 |
SHAFT & BEARING |
| 60 |
0980481 |
SHAFT & BEARING |
| 60 |
0980482 |
SHAFT & BEARING |
| 60 |
0980483 |
SHAFT & BEARING |
| 62 |
0375761 |
BEARING, Roller |
| 63 |
0313162 |
SHIM BEARING TO HOUSING, .002" |
| 63 |
0313163 |
SHIM BEARING TO HOUSING, .003" |
| 63 |
0313164 |
SHIM BEARING TO HOUSING, .004" |
| 63 |
0313165 |
SHIM BEARING TO HOUSING, .005" |
| 63 |
0313166 |
SHIM BEARING TO HOUSING, .006" |
| 63 |
0313167 |
AHIM,Bearing to hsg.,.007" |
| 63 |
0313168 |
SHIM BEARING TO HOUSING, .008" |
| 64 |
0908062 |
PLUG, Bail gear |
| 65 |
0379259 |
BUMPER ASSEMBLY |
| 67 |
0313223 |
TILT QUADRANT |
| 68 |
0308591 |
COVER,Starboard |
| 69 |
0308699 |
COVER,Port |
| 70 |
0308592 |
GASKET, Water cover |
| 71 |
0908914 |
TRANSFER,120 hp |
| 71 |
0908915 |
TRANSFER,140 hp |
| 71 |
0908917 |
TRANSFER,175 hp |
| 71 |
0908918 |
TRANSFER,190 hp |
| 71 |
0909008 |
TRANSEFER,235 hp |
| 72 |
0980758 |
COVER,Exhaust housing |
| 73 |
0908834 |
SCREW, 3/8-16 unc, 3/4 lg |
| 74 |
0908912 |
TRANSFER |
| 75 |
0308896 |
SPRING |
| 76 |
0308621 |
O RING, Retainer to housing |
| 77 |
0313228 |
COVER, Gear housing |
| 78 |
0302647 |
CLAMP |
| 80 |
0907774 |
SEAL |
| 81 |
0313183 |
WORM WHEEL |
| 83 |
0312815 |
THRUST WASHER, Worm gear |
| 84 |
0313234 |
SORM GEAR,Steering |
| 85 |
0313235 |
GEAR |
| 86 |
0314491 |
O RING |
| 87 |
0308684 |
SCREW, Cover to housing |
| 88 |
0308485 |
CLAMP |
| 91 |
0909163 |
RETAINER, Drivesaft |
| 92 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 93 |
0315189 |
GASKET, Oil indicator |
| 94 |
0983218 |
WATER PUMP REPAIR KIT This part replaces 0981802. |
| 95 |
0983219 |
HEAVY DUTY WATER PUMP & IMPELLER HOUSING KIT This part replaces 0981683. |
| 96 |
0981796 |
UPPER GEARCASE SHIM KIT |
