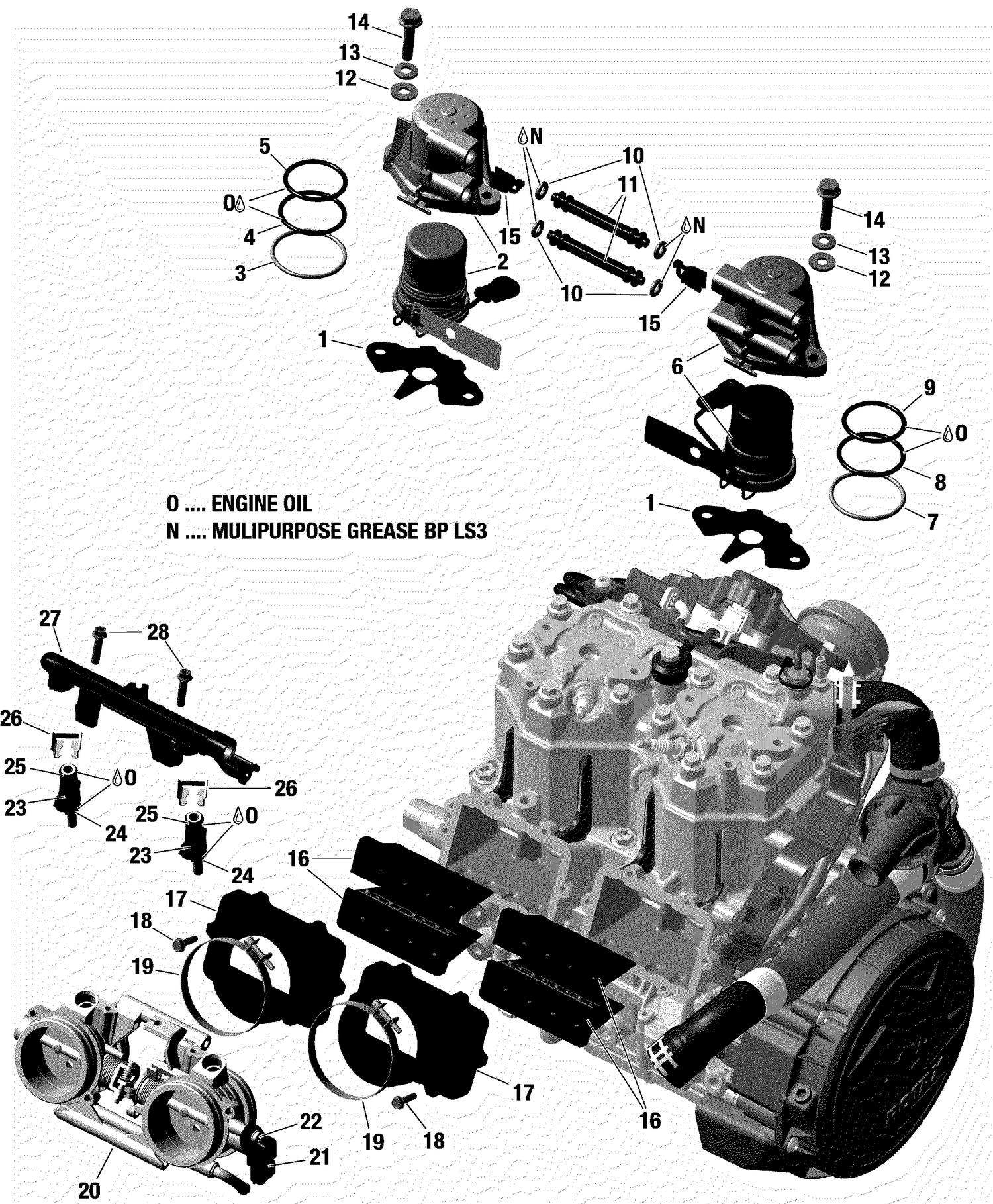

02- EFI
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420430056 | Gasket This part replaces 420430055. |
| 3 | 415129497 | Crush Ring |
| 4 | 415129498 | O-Ring |
| 5 | 415129499 | O-Ring |
| 7 | 415129497 | Crush Ring |
| 8 | 415129498 | O-Ring |
| 9 | 415129499 | O-Ring |
| 10 | 420430775 | O-Ring |
| 11 | 420874190 | Tube |
| 12 | 420901550 | Washer |
| 13 | 420245462 | Spring Washer |
| 14 | 420840090 | Hex Screw M8 x 35 |
| 15 | 420951785 | Tie Rap |
| 16 | 420924798 | Reed Valve Ass'y |
| 17 | 420867390 | Intake Socket |
| 18 | 420841550 | Tapping Screw M5 X 22 |
| 19 | 420251209 | Clamp |
| 21 | 420866680 | Throttle Valve Position Sensor |
| 22 | Not | Available As Spare Part - Screw |
| 24 | 420431890 | O-Ring |
| 25 | 420631220 | O-Ring |
| 26 | 420853030 | Injector Clip |
| 27 | 420874153 | Fuel Rail |
