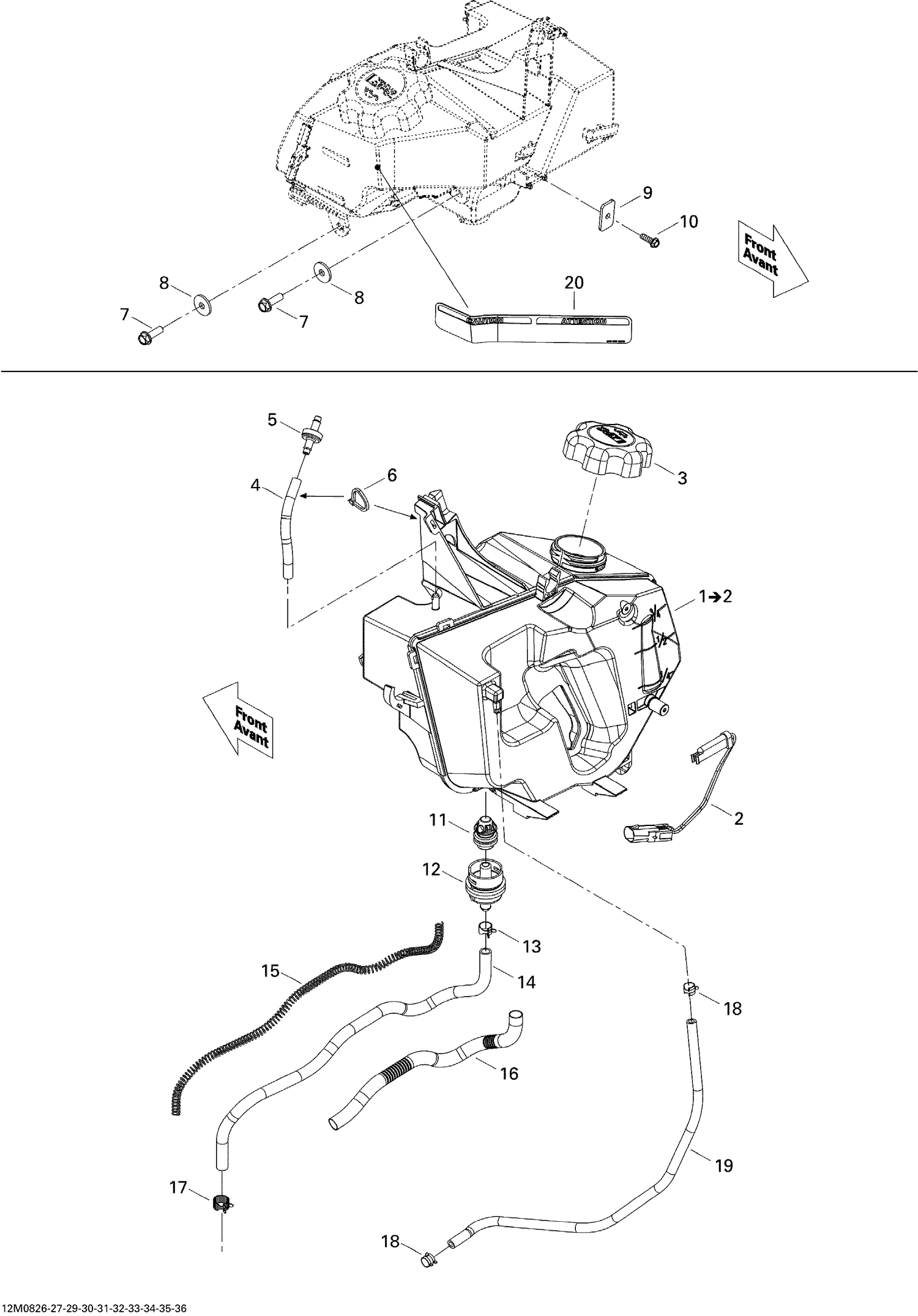

02- Oil System
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 515176508 | Oil Level Sensor |
| 3 | 519000194 | CAP - Call your local BRP dealership |
| 4 | 219704410 | Polyurethane Hose 10000Mm Long |
| 5 | 275500398 | Check Valve |
| 6 | 293750002 | Tie Wrap 142 mm |
| 7 | 250000331 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 8 | 224061201 | Flat Washer |
| 9 | 519000179 | Bracket |
| 10 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 18 | 414554800 | Spring Clamp |
| 19 | 219704410 | Polyurethane Hose 10000Mm Long |
