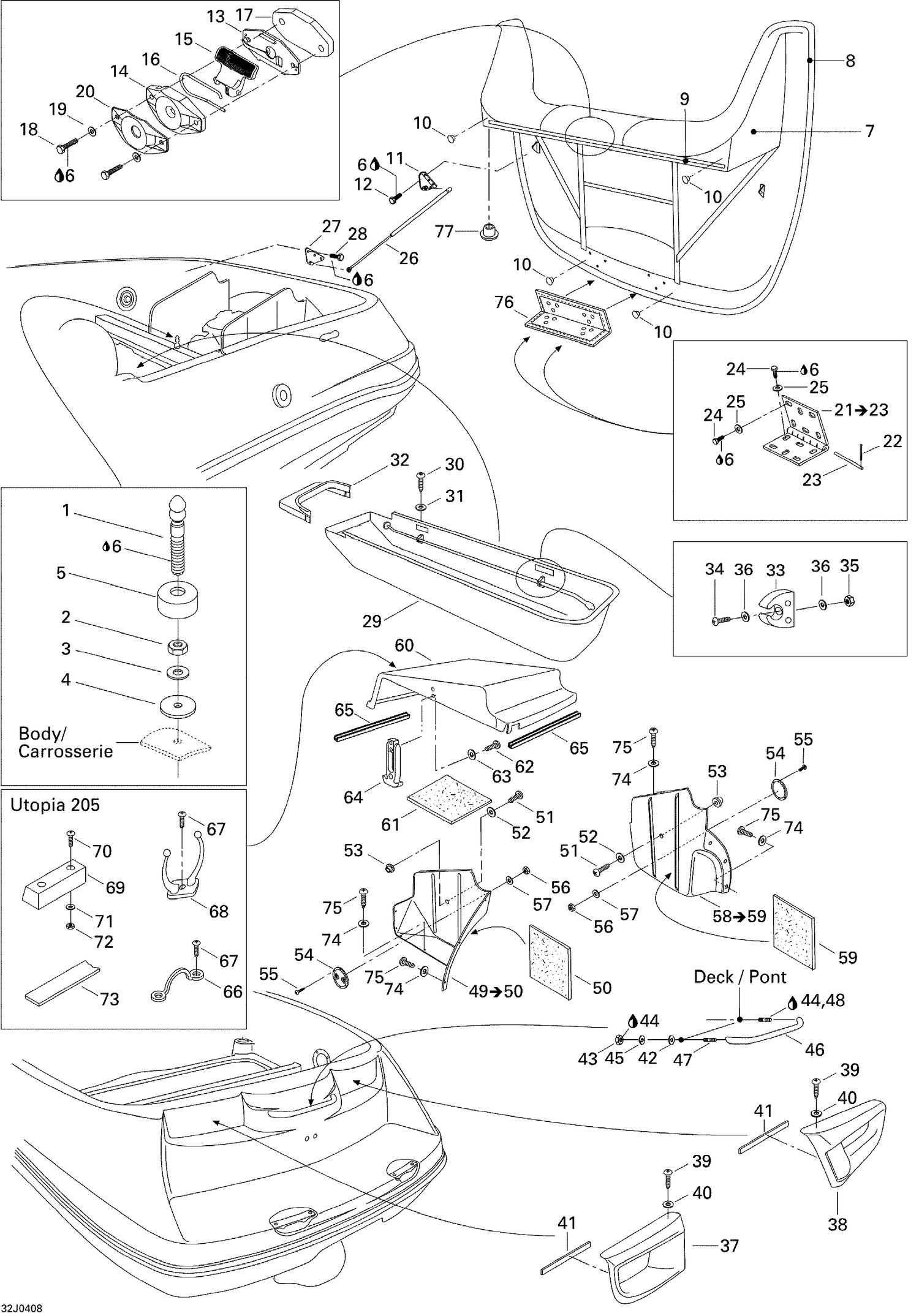

| Ref | Part Number | Description |
|---|
| 1 |
204130052 |
DOUBLE LATCH STUD - Call your local BRP dealership |
| 2 |
232100600 |
Hex. Jam Nut M10 |
| 3 |
234002600 |
Flat Washer 10 mm, Stainless |
| 4 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 5 |
293830025 |
Rubber Pad |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
204071980 |
Engine Cover |
| 8 |
219704368 |
Seal Tray 1000Mm Long |
| 9 |
219704365 |
Was 293200017 Neoprene Seal |
| 10 |
293720017 |
GROMMET - Call your local BRP dealership |
| 11 |
204073074 |
Shock Bracket This part replaces 204071700. |
| 12 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 13 |
269700109 |
Latch Ass'y This part replaces 269700076. |
| 14 |
269700109 |
Latch Ass'y This part replaces 269000015. |
| 15 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 16 |
269700017 |
Latch Spring |
| 17 |
269700015 |
SHIM - Call your local BRP dealership |
| 18 |
207065060 |
Hex. Screw M6 X 50 |
| 19 |
234061600 |
Stainless Flat Washer M6 |
| 20 |
204070952 |
LATCH PROTECTOR - Call your local BRP dealership |
| 22 |
204070204 |
HINGE ROD - Call your local BRP dealership |
| 23 |
204070205 |
Cotter Pin M2.5 X 12 |
| 24 |
207162560 |
Hex. Screw M6 X 25 |
| 25 |
234061600 |
Stainless Flat Washer M6 |
| 26 |
204071925 |
Gas Shock |
| 27 |
204071673 |
Shock Bracket |
| 28 |
207152560 |
HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 29 |
204071177 |
Rear Seat Storage |
| 30 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 31 |
204100057 |
FINITION WASHER - Call your local BRP dealership |
| 32 |
204071329 |
Cap End |
| 33 |
291000642 |
Pole Support |
| 34 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 35 |
232541600 |
Elastic Stop Nut M4 |
| 36 |
234040600 |
Flat Washer 4 mm |
| 37 |
204071500 |
Vent Cover Ass’y, Port Side |
| 38 |
204071502 |
Vent Cover Ass’y, Starboard |
| 39 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 40 |
204100057 |
FINITION WASHER - Call your local BRP dealership |
| 41 |
219704365 |
Was 293200017 Neoprene Seal |
| 42 |
234002600 |
Flat Washer 10 mm, Stainless |
| 43 |
211100063 |
HEX. NUT 3/8-16 - Call your local BRP dealership |
| 44 |
293800005 |
Loctite 271, 10 ml |
| 45 |
234101601 |
Helicoidal Lock Washer M10 |
| 46 |
204071122 |
GRAB HANDLE - Call your local BRP dealership |
| 47 |
204100031 |
Threaded Stud |
| 48 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 50 |
204071400 |
Sound Barrier, Port Side |
| 51 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 52 |
234052600 |
Flat Washer 5 mm, Stainless |
| 53 |
204071384 |
Strap Retainer |
| 54 |
204070622 |
BOTTOM PLATE - Call your local BRP dealership |
| 55 |
208442060 |
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership |
| 56 |
232541600 |
Elastic Stop Nut M4 |
| 57 |
234042600 |
Flat Washer 4 mm, Stainless |
| 59 |
204071400 |
Sound Barrier, Port Side |
| 61 |
204071400 |
Sound Barrier, Port Side |
| 62 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 63 |
234052600 |
Flat Washer 5 mm, Stainless |
| 64 |
204071330 |
Rubber Latch |
| 65 |
219704368 |
Seal Tray 1000Mm Long |
| 74 |
204100057 |
FINITION WASHER - Call your local BRP dealership |
| 75 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 76 |
204612605 |
Hinge Cover |
