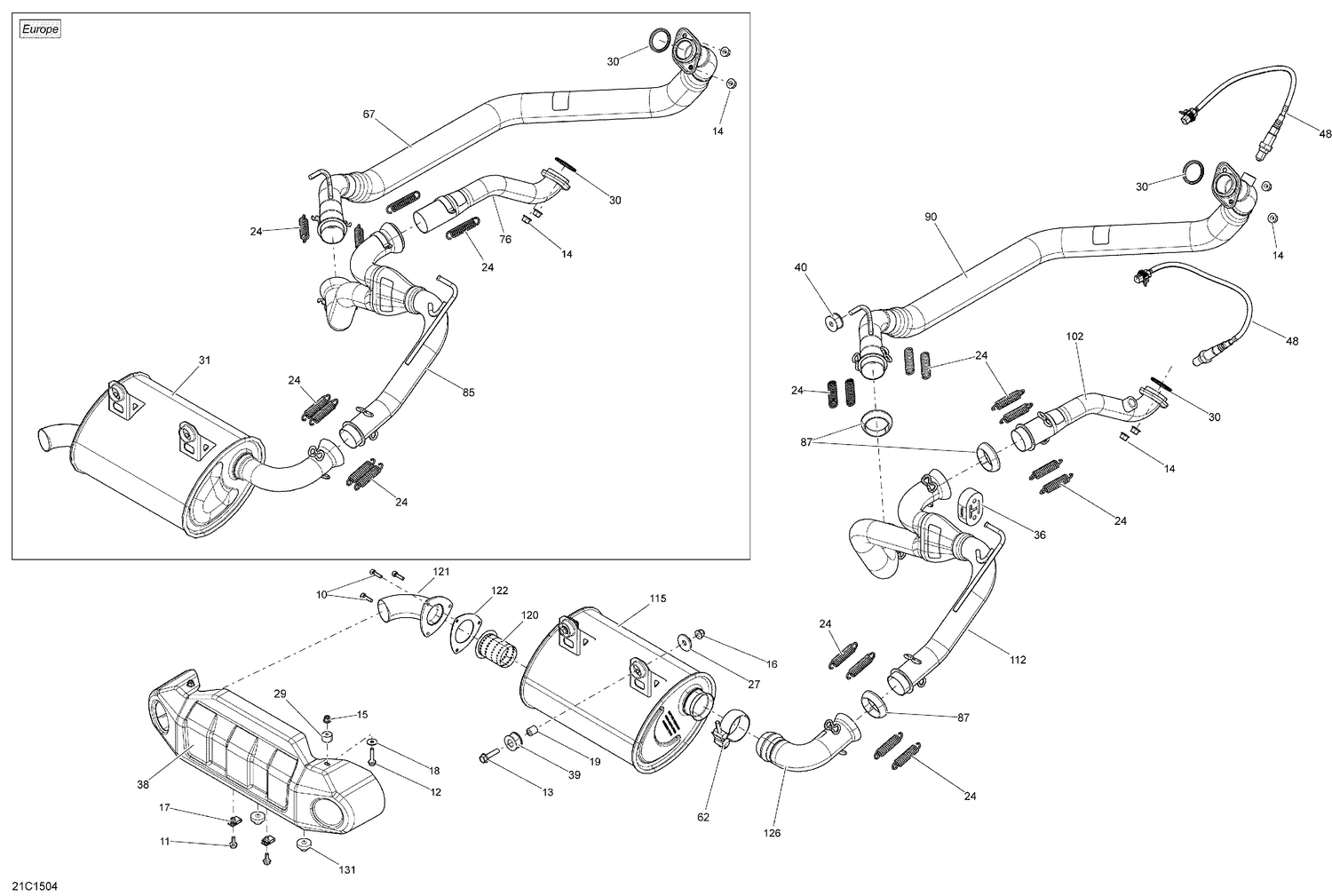

01- Exhaust System _21C1504
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 205062060 | Socket Head Screw M6 X 20 |
| 11 | 207661644 | Hex. Flange Screw M6 X 16 |
| 12 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 13 | 207683544 | Hex. Flange Screw M8 X 35 |
| 14 | 233081416 | Hex. Flange Nut M8 |
| 15 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 16 | 233281414 | Hex. Flange Elastic Nut M8 |
| 17 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 18 | 250200082 | Flat Washer |
| 19 | 293900106 | Bushing |
| 24 | 415107100 | Spring |
| 27 | 503032900 | Washer |
| 29 | 707000882 | Bushing |
| 30 | 707600317 | Gasket |
| 36 | 707600638 | Rubber Bumper |
| 38 | 707600675 | Deflector |
| 39 | 707603323 | Vibration Damper This part replaces 707600701. |
| 40 | 707600702 | Anti-Vibration Rubber |
| 87 | 707601033 | Exhaust Gasket |
| 120 | 707601803 | Spark Arrester This part replaces 715900089. |
| 121 | 715900091 | Muffler Outlet End Piece |
| 122 | 715900090 | Gasket |
