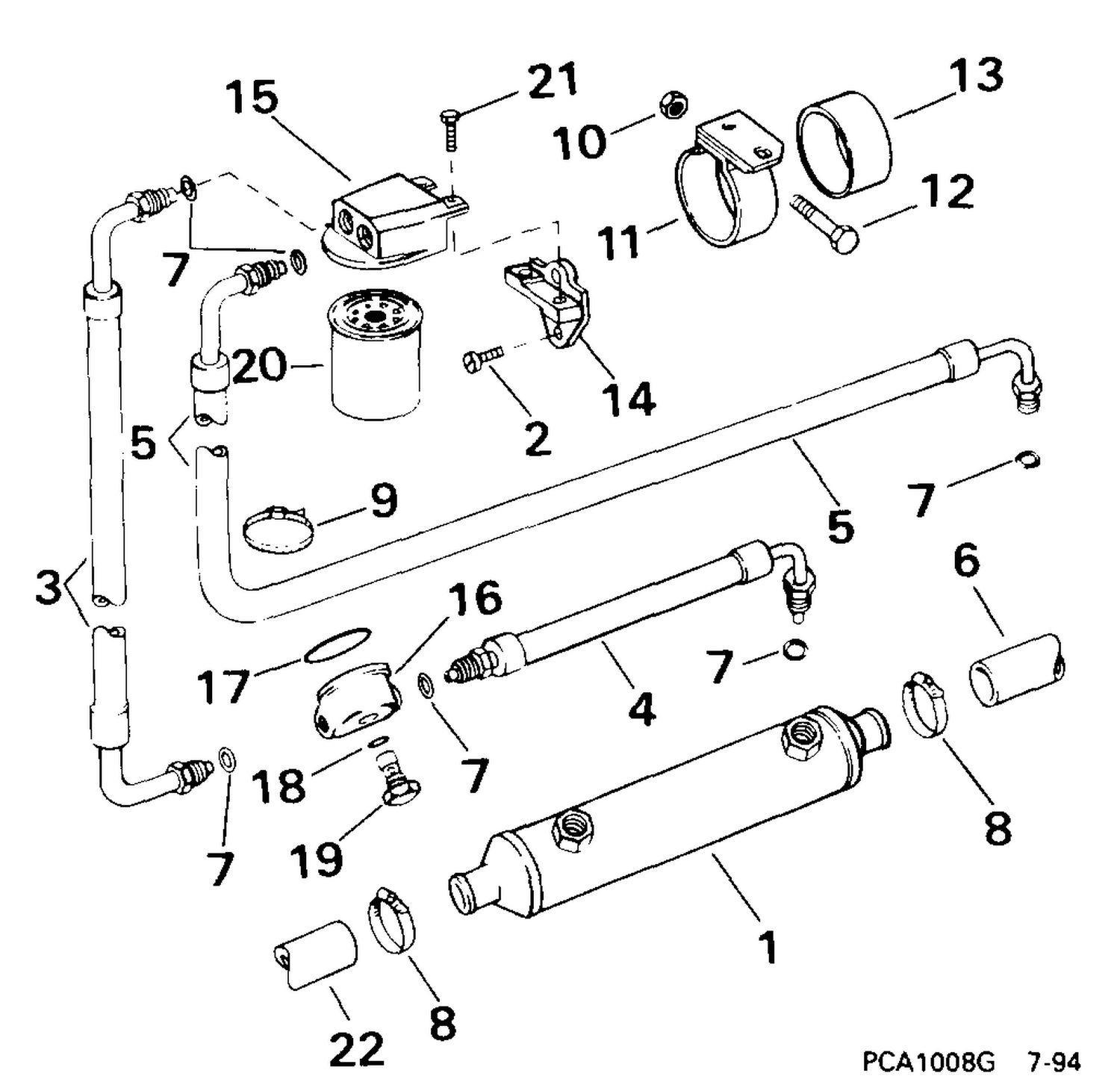

| Ref | Part Number | Description |
|---|
| 1 |
3853969 |
OIL COOLER |
| 2 |
3853266 |
BOLT, Distributor |
| 3 |
3854419 |
HOSE, Adapter to filter |
| 4 |
3854418 |
HOSE, Adapter to cooler |
| 5 |
3854417 |
HOSE, Filter to cooler |
| 6 |
3850907 |
HOSE, Cooler to cooler |
| 8 |
0912627 |
CLAMP This part replaces 3852602. |
| 9 |
3852620 |
TIE STRAP, Oil lines |
| 10 |
3852079 |
BRACKET, Oil cooler |
| 11 |
3852218 |
BRACKET, Oil cooler |
| 13 |
3853236 |
SLEEVE, Ignition coil |
| 14 |
3857359 |
Kit This part replaces 3854413. |
| 15 |
3854592 |
ADAPTER, Oil filter |
| 16 |
3854414 |
Adaptor |
| 17 |
3854416 |
O-RING, Adapter |
| 18 |
3852289 |
HOSE, Water pump |
| 19 |
3854415 |
RETAINER, Adapter |
| 20 |
0502900 |
OIL FILTER This part replaces 0173231. |
| 21 |
3853266 |
BOLT, Distributor |
