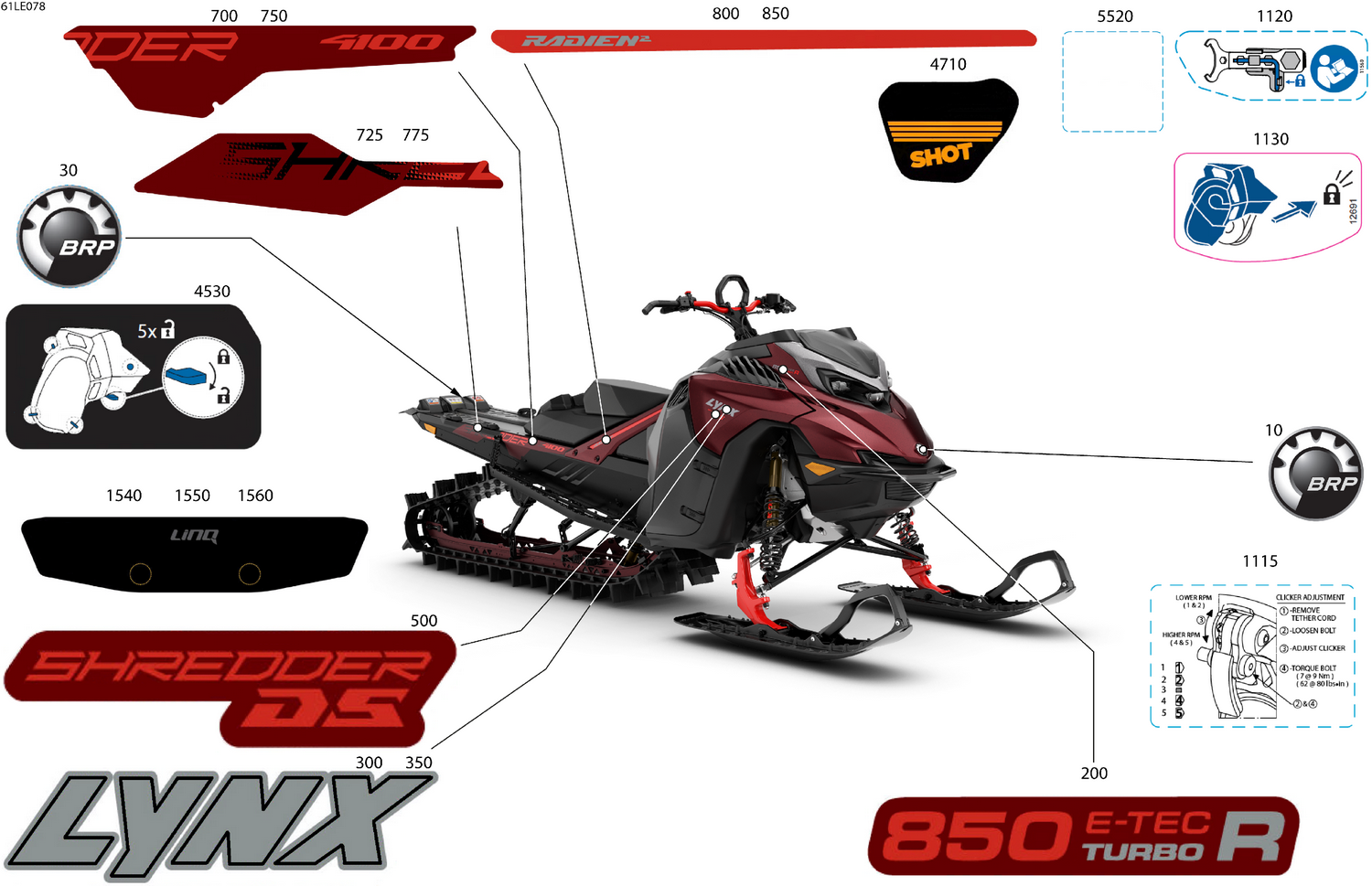

07- Body - Decals
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704909040 | Emblem BRP Logo 48 MM UV |
| 30 | 704909039 | Emblem BRP Logo 35 MM UV |
| 200 | 516012646 | Decal Moon Engine |
| 300 | 516012649 | Silver, Ident LH Decal Lynx Logo |
| 350 | 516012650 | Silver,Ident RH Decal Lynx Logo |
| 500 | 516012652 | LH/RH Panel Decal |
| 700 | 516012671 | LH Middle Tunnel Decal |
| 725 | 516012673 | LH Middle Tunnel Decal |
| 750 | 516012672 | RH Middle Tunnel Decal |
| 775 | 516012674 | RH Middle Tunnel Decal |
| 800 | 516012607 | LH Cross Member Decal |
| 850 | 516012608 | RH Cross Member Decal |
| 1115 | 516009265 | Ramp Clicker Decal |
| 1120 | 516011560 | Tool Instruction Label |
| 1130 | 516012691 | Lock Label |
| 1540 | 516011681 | Decal Q-Link |
| 1550 | 516011681 | Decal Q-Link |
| 1560 | 516011681 | Decal Q-Link |
| 4530 | 516012715 | Latch Label |
| 4710 | 516008187 | Decal Shot |
