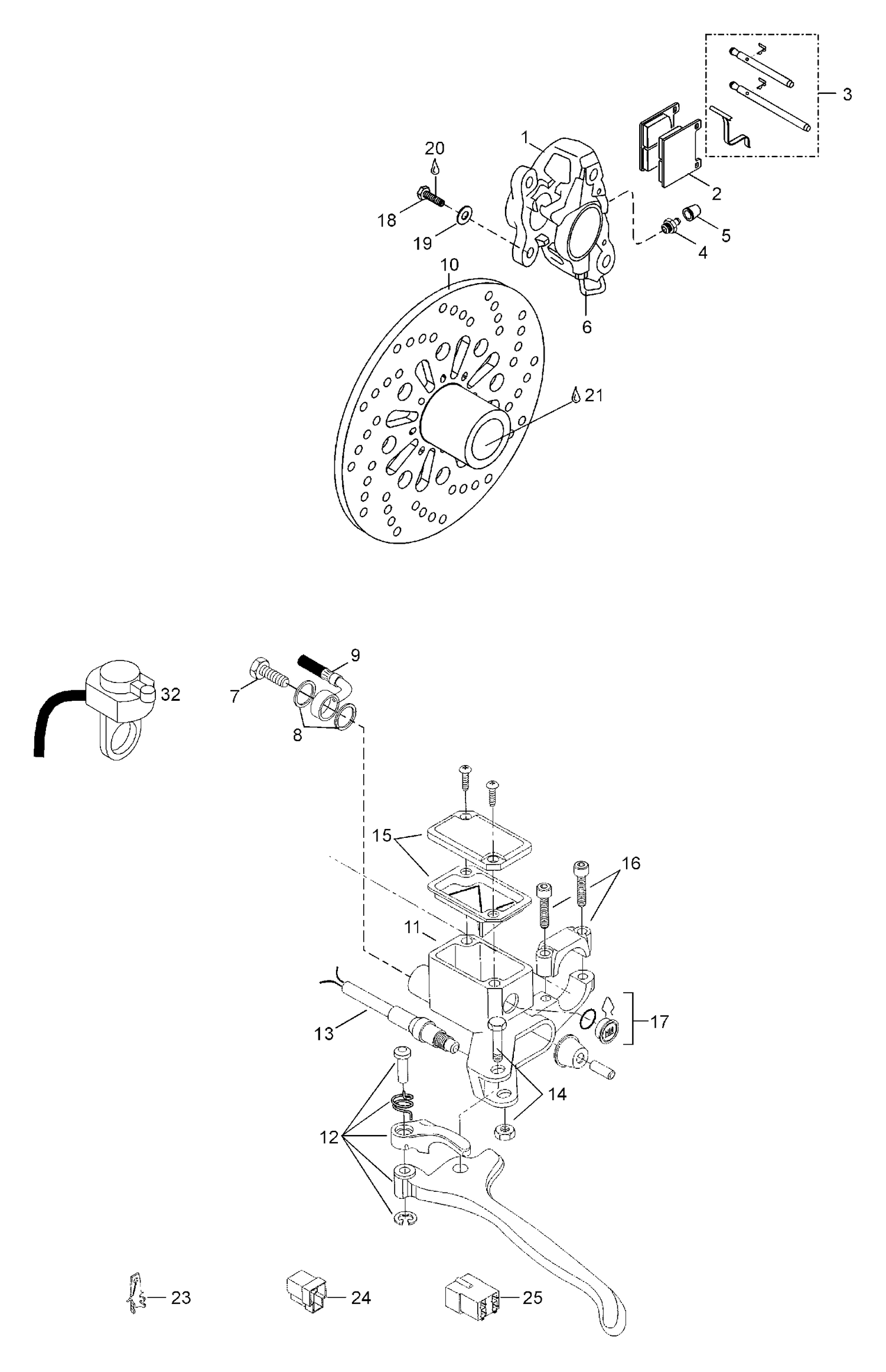

| Ref | Part Number | Description |
|---|
| 2 |
415084600 |
Brake lining kit This part replaces 414990000. |
| 3 |
414990700 |
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership |
| 4 |
414989800 |
BLEEDER SCREW - Call your local BRP dealership |
| 5 |
414989700 |
BOOT-QTS 20 - Call your local BRP dealership |
| 6 |
414989900 |
RIGID TUBING - Call your local BRP dealership |
| 7 |
414920500 |
Bolt for hose connect. |
| 8 |
414920600 |
Washer |
| 9 |
507032219 |
HOSE - Call your local BRP dealership |
| 10 |
507030900 |
Brake Disk |
| 12 |
507032428 |
LEVER - Call your local BRP dealership This part replaces 415075300. |
| 13 |
507032366 |
Microswitch ass'y This part replaces 415117500. |
| 14 |
415030000 |
Pin Ass'y |
| 15 |
415029900 |
Cover |
| 16 |
507032477 |
Clamp This part replaces 415029800. |
| 17 |
414990600 |
WINDOW - Call your local BRP dealership |
| 18 |
207103544 |
Screw M10 x 35 This part replaces 222003565. |
| 19 |
20068 |
Lock washer |
| 20 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 21 |
413701000 |
LUBRICANT-ANTI - Call your local BRP dealership |
| 23 |
42031 |
Tab |
| 24 |
42036 |
Housing tab |
| 25 |
42122 |
Housing tab |
