Parts Catalog

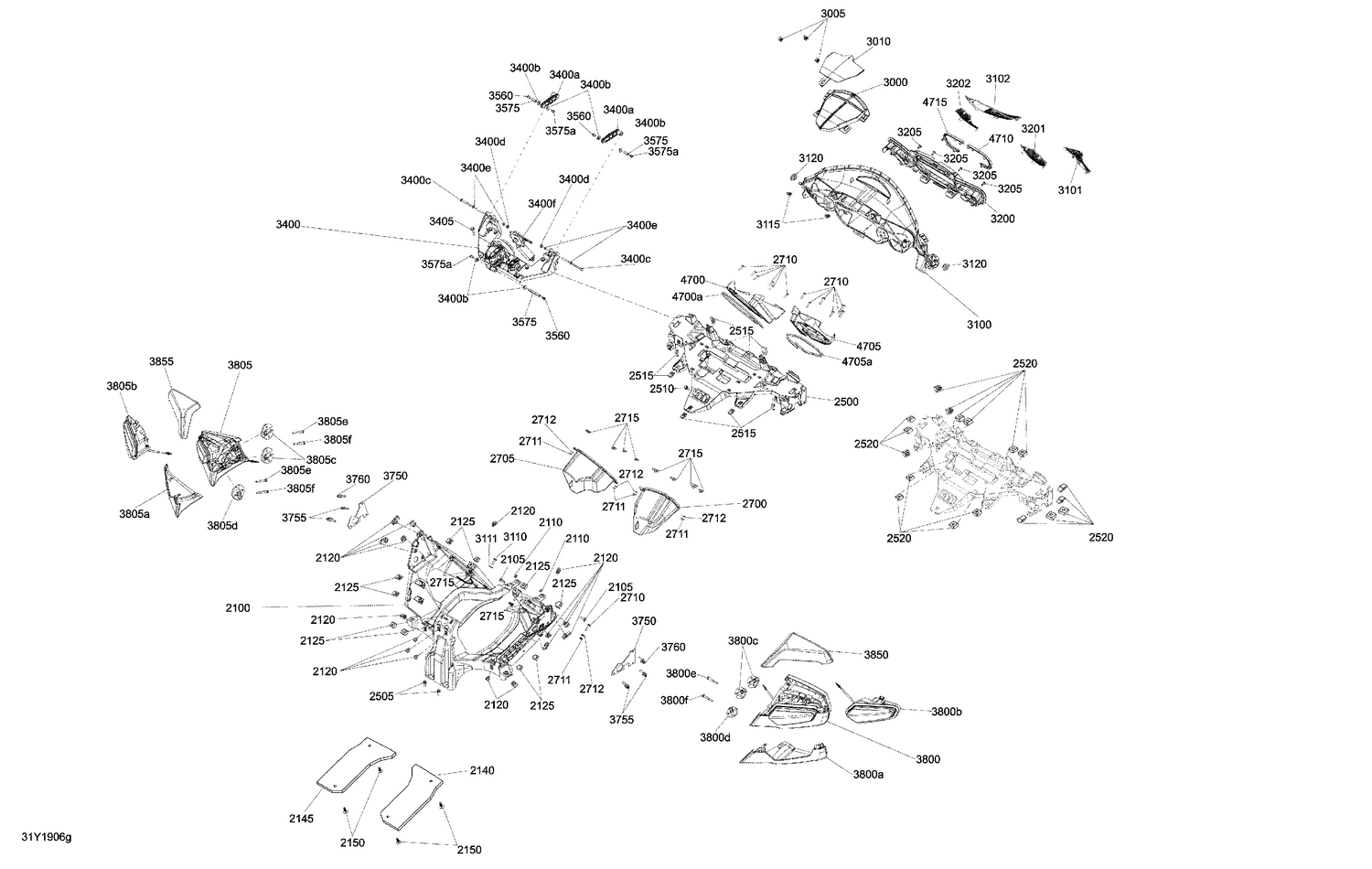

09- System Console - Front Console, Mirrors & Supports

Parts (46)

Ref	Part Number	Description
2100	705002743	Console Support
2105	250000712	Torx Screw M6 X 20
2110	232862412	Square Nut M6
2120	250100198	Panel Nut M6 X 1.0
2125	269502408	Housing Nut M6 This part replaces 269501166.
2140	707800349	LH Acoustic Foam
2145	707800341	RH Acoustic Foam
2150	293730006	Black, Dart
2500	705012150	Console Cross-support
2505	210261650	Hex. Flange Screw M6 X 16
2510	207662044	Hex. Flange Screw M6 X 20
2515	250100198	Panel Nut M6 X 1.0
2520	269502408	Housing Nut M6 This part replaces 269501166.
2700	705011996	LH Speaker Housing Ass'y
2705	705011997	RH Speaker Housing Ass'y
2710	250000762	Torx Screw M5 X 25
2711	250100071	Hex. Flange Nut M5
2712	250200025	Washer M5
2715	250000958	Panel Nut M5 X 0.8
3000	705002746	Guide Chart Support
3005	517302785	Edge Clip
3010	705009360	Guide Chart
3100	705006656	Dashboard
3101	705011416	LH Lower Speaker Grille
3102	705011417	RH Lower Speaker Grille
3110	250000722	Torx Screw M6 X 20
3111	250200164	Flat washer M6
3115	250000958	Panel Nut M5 X 0.8
3120	705000321	Oval Washer
3200	705011418	Dashboard Bezel
3201	705011603	LH Upper Speaker Grille
3202	705011605	RH Upper Speaker Grille
3205	250000742	Torx Screw M5 X 14
3400b	705003267	Sleeve
3400c	207065060	Hex. Screw M6 X 50
3400d	232561200	Brass Elastic Stop Nut M6
3400e	234061600	Stainless Flat Washer M6
3400f	278002579	Windshield Motor
3405	207663544	Hex. Flange Screw M6 X 35
3560	205961060	Socket Head Screw M6 X 10, Scotch Grip
3575a	205961060	Socket Head Screw M6 X 10, Scotch Grip
3750	705003779	Console Support Plate
3755	705004322	Spherical Head Stud
3760	705004323	Spherical Head Stud
4700a	219704373	Seal 1000Mm Long
4705a	219704373	Seal 1000Mm Long
