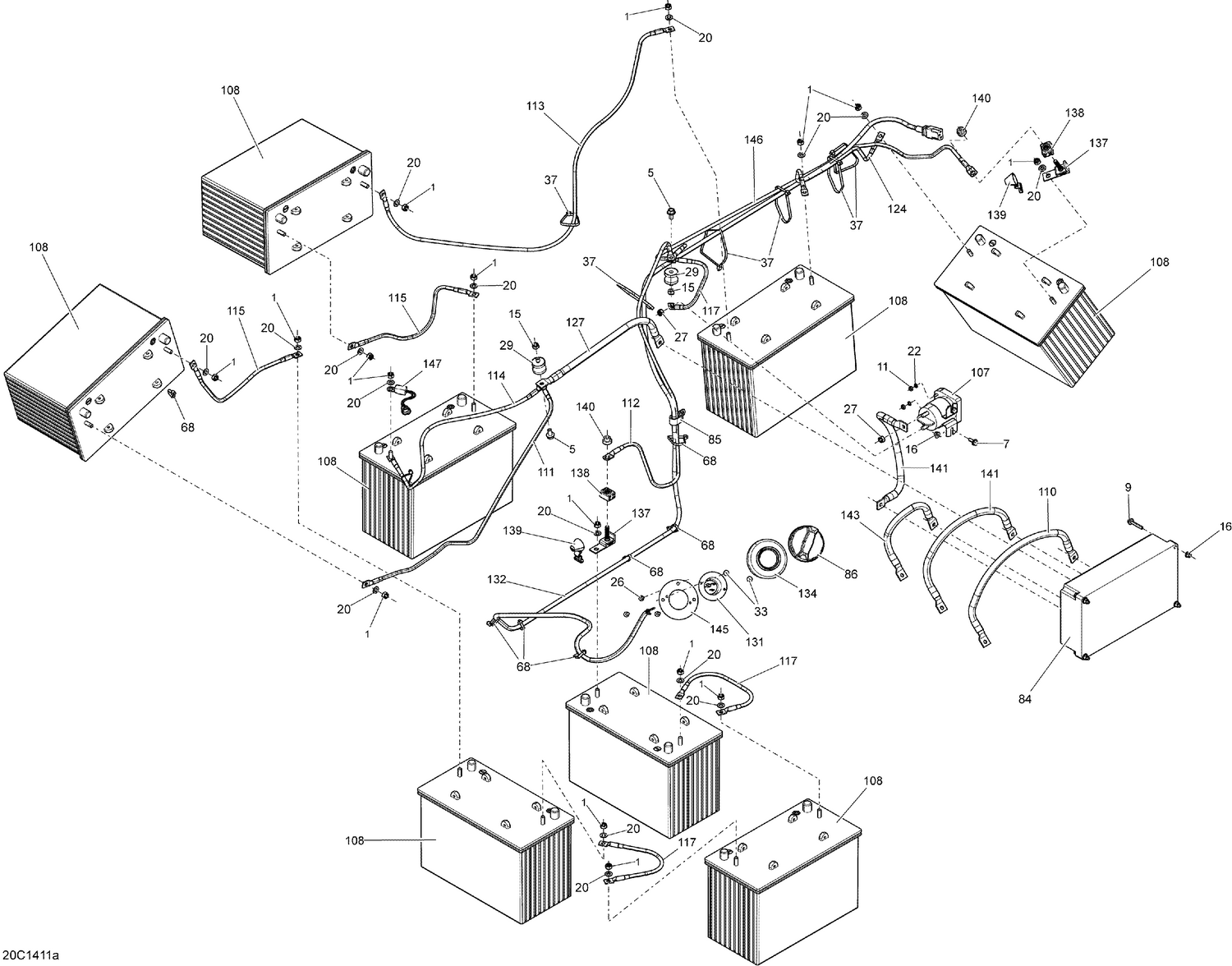

10- Electrical System Batteries_20C1411a
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204100100 | Elastic Stop Nut 5/16-18 |
| 5 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 7 | 207661644 | Hex. Flange Screw M6 X 16 |
| 9 | 207663544 | Hex. Flange Screw M6 X 35 |
| 11 | 212100005 | Hex. Nut |
| 15 | 232581414 | Hex. Elastic Stop Nut M8 |
| 16 | 233061414 | Hex. Flange Nut M6 |
| 20 | 234081670 | Stainless Steel Flat Washer 8 mm |
| 22 | 234151601 | Helical Lock Washer M5 |
| 26 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 27 | 250000629 | Elastic Stop Nut 5/16-24 |
| 29 | 707000949 | Rubber Isolator |
| 33 | 293150170 | Pop Rivet 5/32" |
| 37 | 293750008 | Tie Wrap 368 mm |
| 68 | 414115200 | Tie-Rap 180 mm |
| 84 | 707001105 | MOTOR CONTROL MODULE (MCM) - Call your local BRP dealership |
| 85 | 709000057 | Open Clamp |
| 86 | 709000529 | Fuel Cap This part replaces 709000268. |
| 107 | 710002807 | CONTACTOR - Call your local BRP dealership |
| 108 | 710002808 | BATTERY_12 VOLT 72AH - Call your local BRP dealership |
| 110 | 710002867 | CABLE - Call your local BRP dealership |
| 111 | 710002871 | Battery Cable |
| 112 | 710002872 | Battery Cable |
| 113 | 710002873 | Battery Cable |
| 114 | 710002874 | Battery Cable |
| 115 | 710002875 | Battery Cable |
| 117 | 710002876 | Cable |
| 124 | 710002880 | Battery Cable |
| 127 | 710002881 | CABLE - Call your local BRP dealership |
| 131 | 710002934 | INLET, 15A 125V - Call your local BRP dealership |
| 132 | 710002935 | Charging Cable |
| 134 | 710002936 | Upper Inlet Support |
| 137 | 710003145 | Fuse Holder |
| 138 | 710003146 | FUSE, 300 AMPERES - Call your local BRP dealership |
| 139 | 710003147 | BOOT - Call your local BRP dealership |
| 140 | 710003148 | Nut |
| 141 | 710003171 | Cable |
| 143 | 710003172 | Cable |
| 145 | 710003246 | Lower Inlet Support |
| 146 | 710003251 | CABLE - Call your local BRP dealership |
