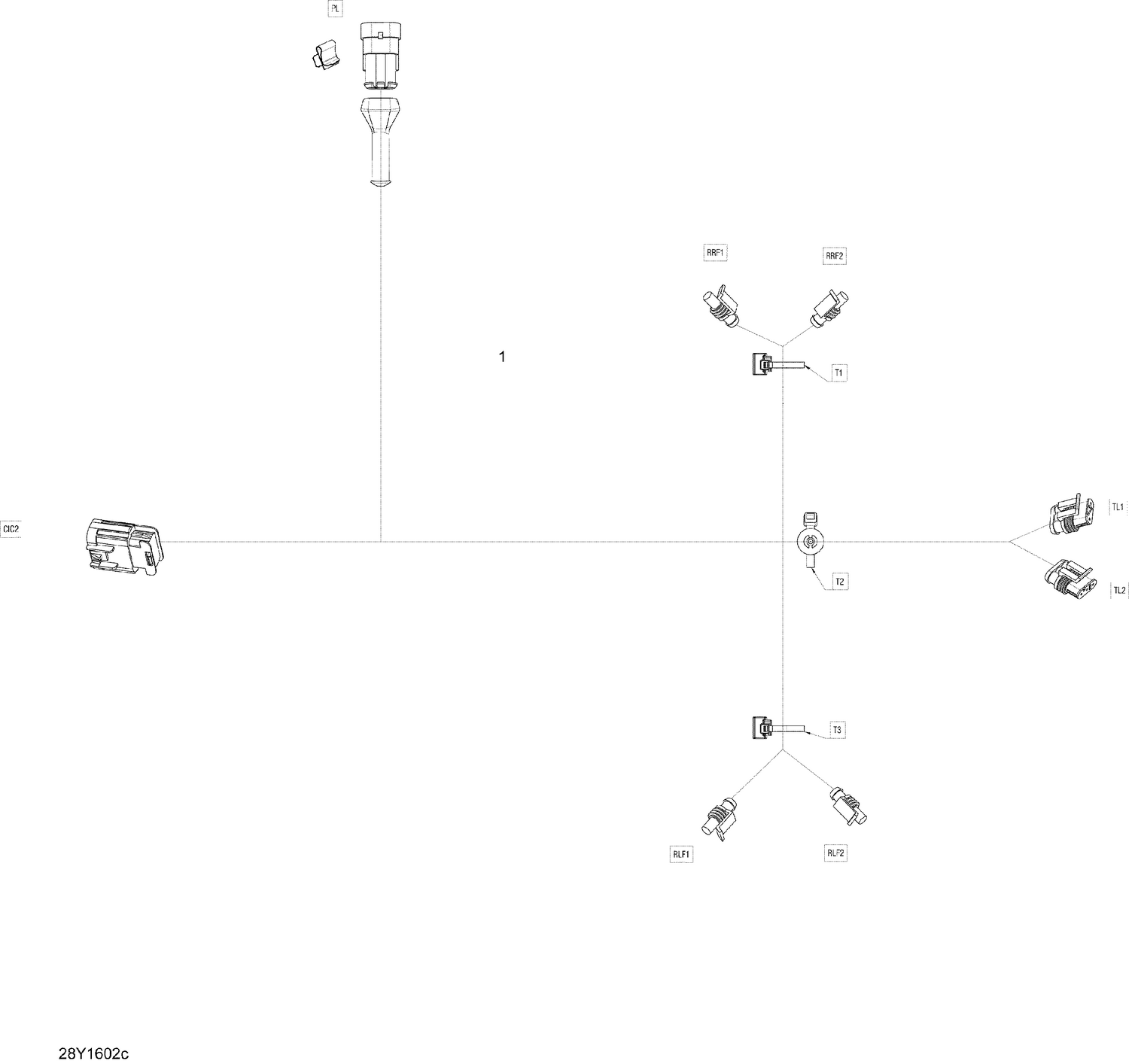

10- Electrical Harness - Cargo
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| CIC2 | 710001223 | Terminal |
| CIC2 | 710001224 | Terminal |
| CIC2 | 710001225 | Cap |
| CIC2 | 710001233 | Seal |
| CIC2 | 710001332 | Seal Wire |
| CIC2 | 710001952 | Housing |
| PL | 409210100 | Clip Bracket Connector (edge) |
| PL | 515176164 | Male Terminal |
| PL | 515176621 | Wire Seal |
| PL | 710000568 | Housing |
| PL | 710003324 | PROTECTOR CAP - Call your local BRP dealership |
| RLF1 | 278001012 | Male Housing, 1 Circuit |
| RLF1 | 515176621 | Wire Seal |
| RLF1 | 710001340 | Female Terminal |
| RLF2 | 278001012 | Male Housing, 1 Circuit |
| RLF2 | 515176621 | Wire Seal |
| RLF2 | 710001340 | Female Terminal |
| RRF1 | 278001012 | Male Housing, 1 Circuit |
| RRF1 | 515176621 | Wire Seal |
| RRF1 | 710001340 | Female Terminal |
| RRF2 | 278001012 | Male Housing, 1 Circuit |
| RRF2 | 515176621 | Wire Seal |
| RRF2 | 710001340 | Female Terminal |
| T1 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| T3 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| TL1 | 409209600 | Female Housing, 3 Circuits |
| TL1 | 515176621 | Wire Seal |
| TL1 | 710001340 | Female Terminal |
| TL2 | 409209600 | Female Housing, 3 Circuits |
| TL2 | 515176621 | Wire Seal |
| 1 | 710004756 | WIRING HARNESS REAR - Call your local BRP dealership |
