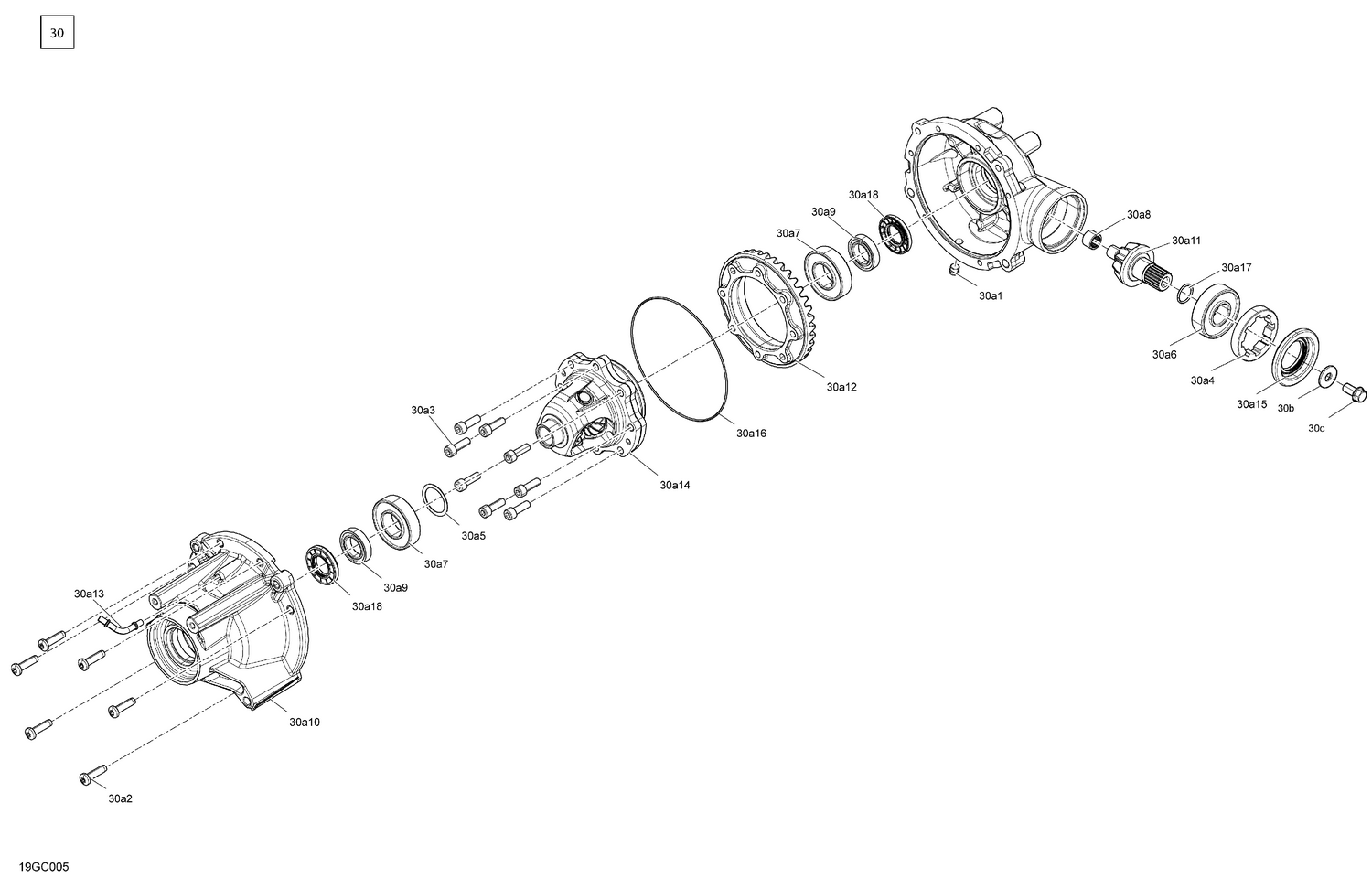

04- Drive - Front - Differential Parts
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 30a1 | 705501885 | Drain Plug |
| 30a10 | 705401610 | Front Cover |
| 30a11 | 705402841 | Pinion 10 Teeth |
| 30a12 | 705402842 | Gear 36 Teeth |
| 30a13 | 705401613 | Vent Valve |
| 30a14 | 705402182 | Differential |
| 30a15 | 705401615 | Oil Seal |
| 30a16 | 705401616 | Seal |
| 30a17 | 705401617 | O'Ring |
| 30a18 | 705401618 | Gasket |
| 30a2 | 705401601 | Screw |
| 30a3 | 705401602 | Screw |
| 30a4 | 705401603 | Nut |
| 30a5 | 705401604 | Shim |
| 30a6 | 705401605 | Ball Bearing |
| 30a7 | 705401606 | Ball Bearing |
| 30a8 | 705402848 | Ball Bearing |
| 30a9 | 705401608 | Ball Bearing |
| 30b | 250200014 | Flat Washer M10 |
