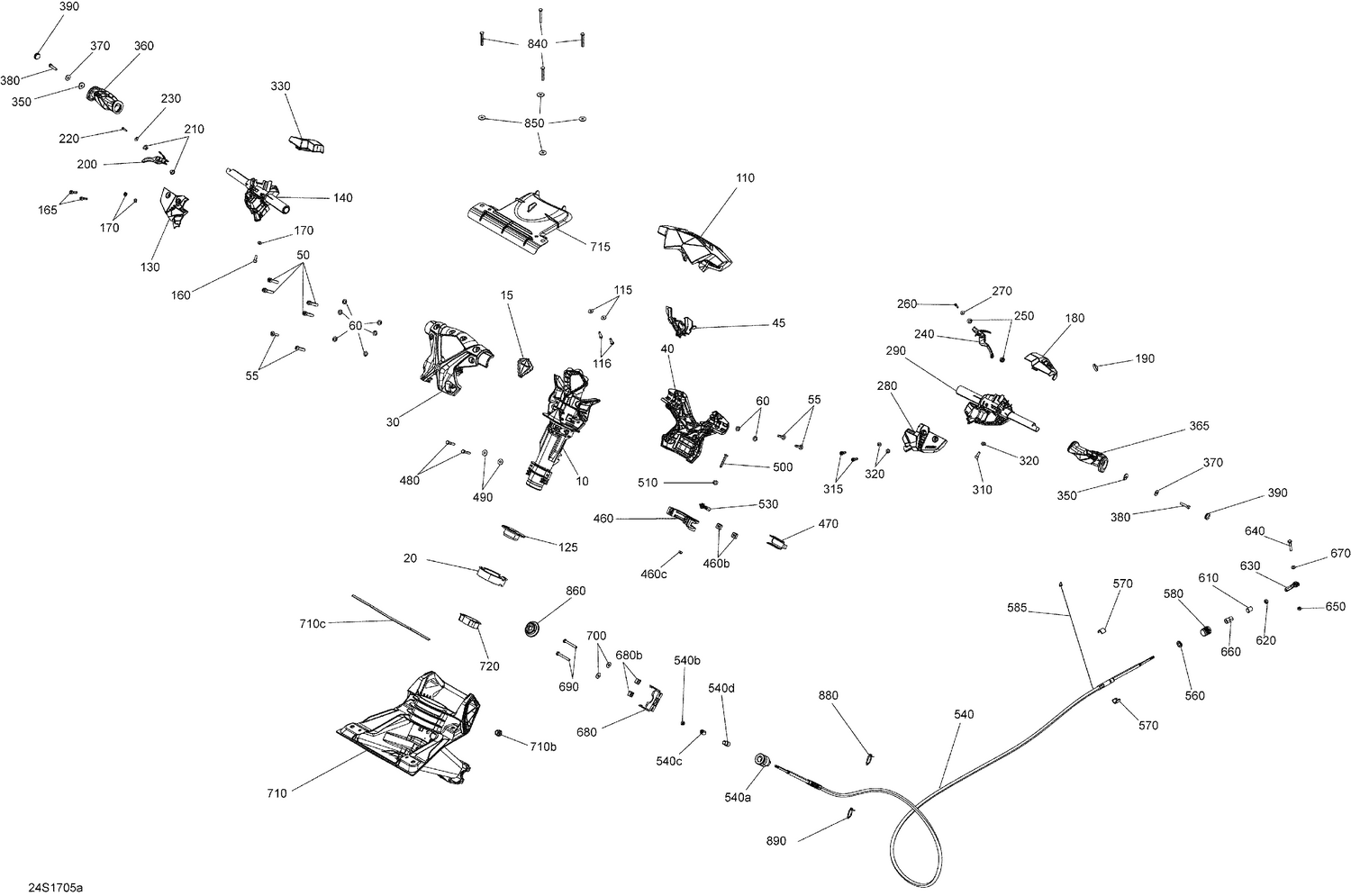

| Ref | Part Number | Description |
|---|
| 10 |
277001685 |
Steering Column |
| 15 |
277001919 |
AESTHETIC CAP - Call your local BRP dealership |
| 20 |
277001653 |
Wear Ring |
| 30 |
277001909 |
FRONT EXTENSION BLOC - Call your local BRP dealership |
| 40 |
277001926 |
REAR EXTENSION BLOCK - Call your local BRP dealership |
| 45 |
277001920 |
RADIO FREQUENCY KEY SUPPORT - Call your local BRP dealership |
| 50 |
205084060 |
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership |
| 55 |
250000845 |
Torx-Button M/S M8 X 40 Stlss S.Gri |
| 60 |
234080600 |
Flat Washer M8, Stainless |
| 110 |
277001683 |
Handle Pad |
| 115 |
234052600 |
Flat Washer 5 mm, Stainless |
| 116 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 125 |
293720086 |
Grommet |
| 130 |
277001688 |
Upper Housing RH |
| 140 |
277001951 |
RH LOWER HOUSING - Call your local BRP dealership This part replaces 277001966. |
| 160 |
205061660 |
Socket Screw M6 X 16 |
| 165 |
205562060 |
Socket Head Screw M6 X 20, Scotch Grip |
| 170 |
234061600 |
Stainless Flat Washer M6 |
| 180 |
277001794 |
LH HOUSING COVER - Call your local BRP dealership |
| 190 |
277001887 |
Red, Knob Switch |
| 200 |
277001944 |
Throttle Handle |
| 210 |
293900091 |
Bushing |
| 220 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 230 |
234042600 |
Flat Washer 4 mm, Stainless |
| 240 |
277001945 |
Reverse Handle |
| 250 |
293900091 |
Bushing |
| 260 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 270 |
234042600 |
Flat Washer 4 mm, Stainless |
| 280 |
277001686 |
LH UPPER HOUSING - Call your local BRP dealership |
| 290 |
277001950 |
LH Lower Housing This part replaces 277001965. |
| 310 |
205061660 |
Socket Screw M6 X 16 |
| 315 |
205562060 |
Socket Head Screw M6 X 20, Scotch Grip |
| 320 |
234061600 |
Stainless Flat Washer M6 |
| 330 |
277001718 |
RH Housing Cover |
| 350 |
277001863 |
Insert Grip Handle |
| 360 |
277001946 |
Deep Black, RH Handle Grip |
| 365 |
277001958 |
Deep Black, LH Handle Grip |
| 370 |
234062600 |
Flat Washer M6, Stainless |
| 380 |
250000002 |
Hex. Screw M6 X 30, Scotch Grip |
| 390 |
277000203 |
Black, Cap |
| 460b |
269502408 |
Housing Nut M6 This part replaces 269501166. |
| 460c |
232561200 |
Brass Elastic Stop Nut M6 |
| 470 |
277001654 |
Spacer |
| 480 |
207163560 |
Hex. Screw M6 X 35 |
| 490 |
234062600 |
Flat Washer M6, Stainless |
| 500 |
207064060 |
Hex. Screw M6 X 40 |
| 510 |
234061600 |
Stainless Flat Washer M6 |
| 530 |
277000775 |
Ball Joint |
| 540a |
277000782 |
Ajustment Knob |
| 540b |
211100056 |
Hex. Nut 1/4"-28 |
| 540c |
277001582 |
Wiper Rod |
| 540d |
277001583 |
End Piece |
| 560 |
293830063 |
Rubber Washer |
| 570 |
277001527 |
Half Ring |
| 580 |
277001729 |
Steering Cable Lock |
| 585 |
219704454 |
Was 293800013 Loctite 56765 |
| 610 |
277001582 |
Wiper Rod |
| 620 |
211100056 |
Hex. Nut 1/4"-28 |
| 630 |
277000775 |
Ball Joint |
| 640 |
207063560 |
Hex. Screw M6 X 35 |
| 650 |
232561200 |
Brass Elastic Stop Nut M6 |
| 660 |
277001583 |
End Piece |
| 670 |
234061600 |
Stainless Flat Washer M6 |
| 680b |
269502408 |
Housing Nut M6 This part replaces 269501166. |
| 690 |
207165060 |
Hex. Screw M6 X 50 |
| 700 |
234062600 |
Flat Washer M6, Stainless |
| 710b |
517302716 |
Cap |
| 710c |
293250008 |
GASKET PAC = 1.0m - Call your local BRP dealership |
| 715 |
293000117 |
Deflector |
| 720 |
277002318 |
Wear Ring This part replaces 277001741. |
| 840 |
245064560 |
Hex Cap Screw M6X1.0X45 S.Grip |
| 850 |
250200022 |
Flat Washer M6.6 X 22 |
| 860 |
293720090 |
Cable Grommet |
| 880 |
414115200 |
Tie-Rap 180 mm |
