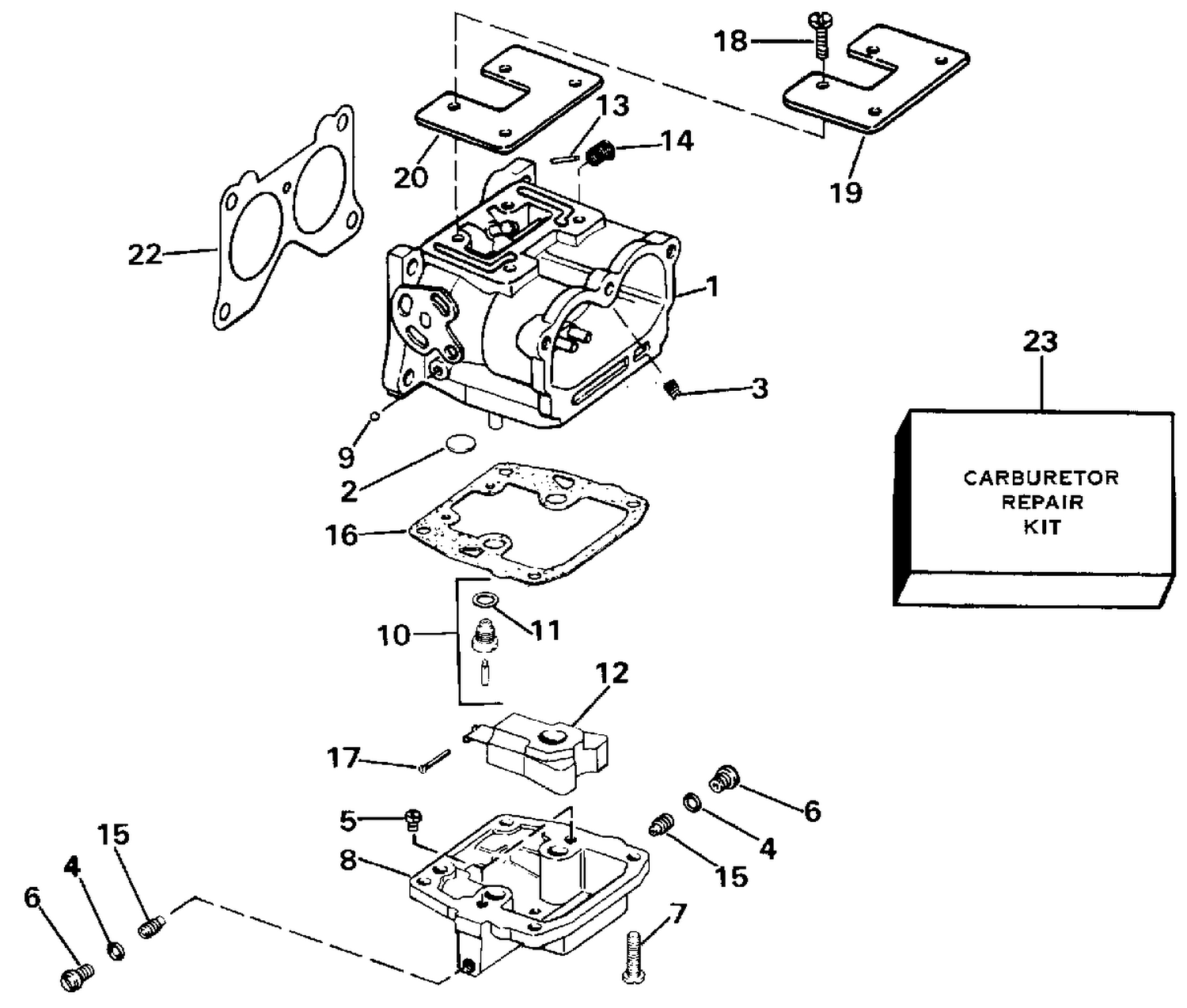

CARBURETOR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0397158 | CARB ASSY. |
| 3 | 0322936 | ORIFICE, # 28 |
| 6 | 0330131 | CLAMP, Fuel filter |
| 7 | 0319682 | VIS, capteur vers plaque |
| 8 | 0392376 | FLOAT CHAMBER ASSY. This part replaces 0393784. |
| 12 | 0383437 | FLOAT ASSEMBLY |
| 15 | 0324389 | ORFICIE PLUG 175 only |
| 16 | 0338884 | GASKET, Float bowl This part replaces 0323784. |
| 18 | 0334352 | COVER, Idle channel This part replaces 0330132. |
| 19 | 0330133 | SCREW, Breaker plate |
| 20 | 0334353 | GASKET, Cover This part replaces 0327931. |
| 22 | 0327707 | GASKET, Air silencer |
