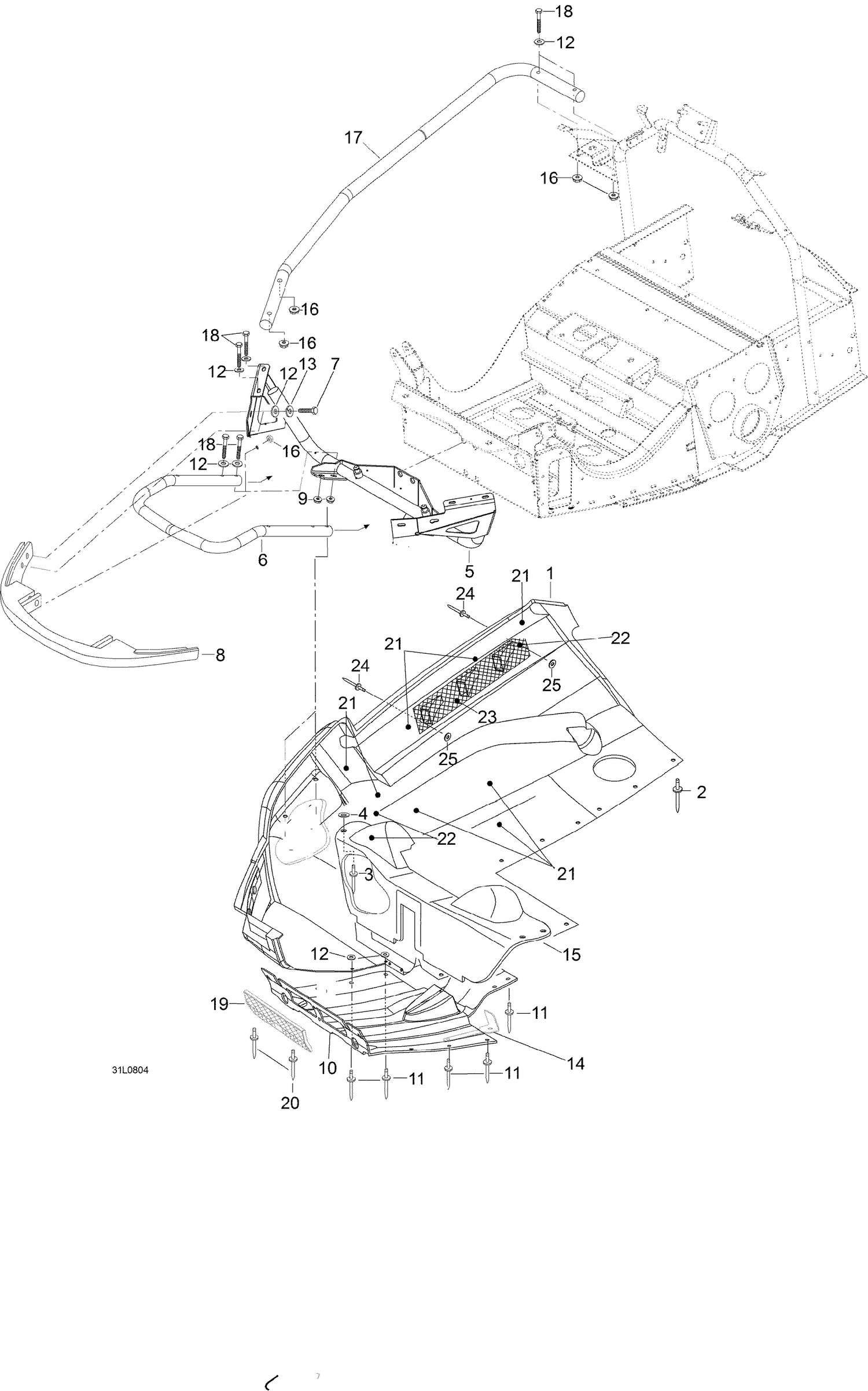

| Ref | Part Number | Description |
|---|
| 1 |
605154928 |
LH Bottom pan |
| 1 |
605155126 |
RH Bottom pan |
| 2 |
36037 |
Black Rivet This part replaces M36037. |
| 3 |
36108 |
Rivet This part replaces M36108. |
| 4 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 5 |
605255398 |
WELDED FRONT BUMPER SUPPORT - Call your local BRP dealership |
| 6 |
605351509 |
BUMPER FRONT - Call your local BRP dealership |
| 7 |
207161644 |
Hex. Screw M6 X 16 |
| 8 |
502006719 |
Bumper, Black |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 10 |
605154930 |
Central Front Pottom Pan |
| 11 |
M36072 |
RIVET - Call your local BRP dealership |
| 12 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 13 |
234161471 |
Lock Washer M6, Black |
| 14 |
605355617 |
BOTTOM PAN RIVETING PLATE - Call your local BRP dealership |
| 15 |
605355606 |
SHOCK COVER - Call your local BRP dealership |
| 16 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 17 |
605255395 |
SIDE BUMPER - Call your local BRP dealership |
| 18 |
207064044 |
Hex. Screw M6 X 40 |
| 19 |
605255513 |
FRONT GRILL - Call your local BRP dealership |
| 20 |
M36071 |
Rivet |
| 21 |
619690002 |
ISOLATION SHEET - Call your local BRP dealership |
| 22 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001. |
| 23 |
605351546 |
GRILL - Call your local BRP dealership |
| 24 |
M36036 |
Black, Rivet |
