Parts Catalog

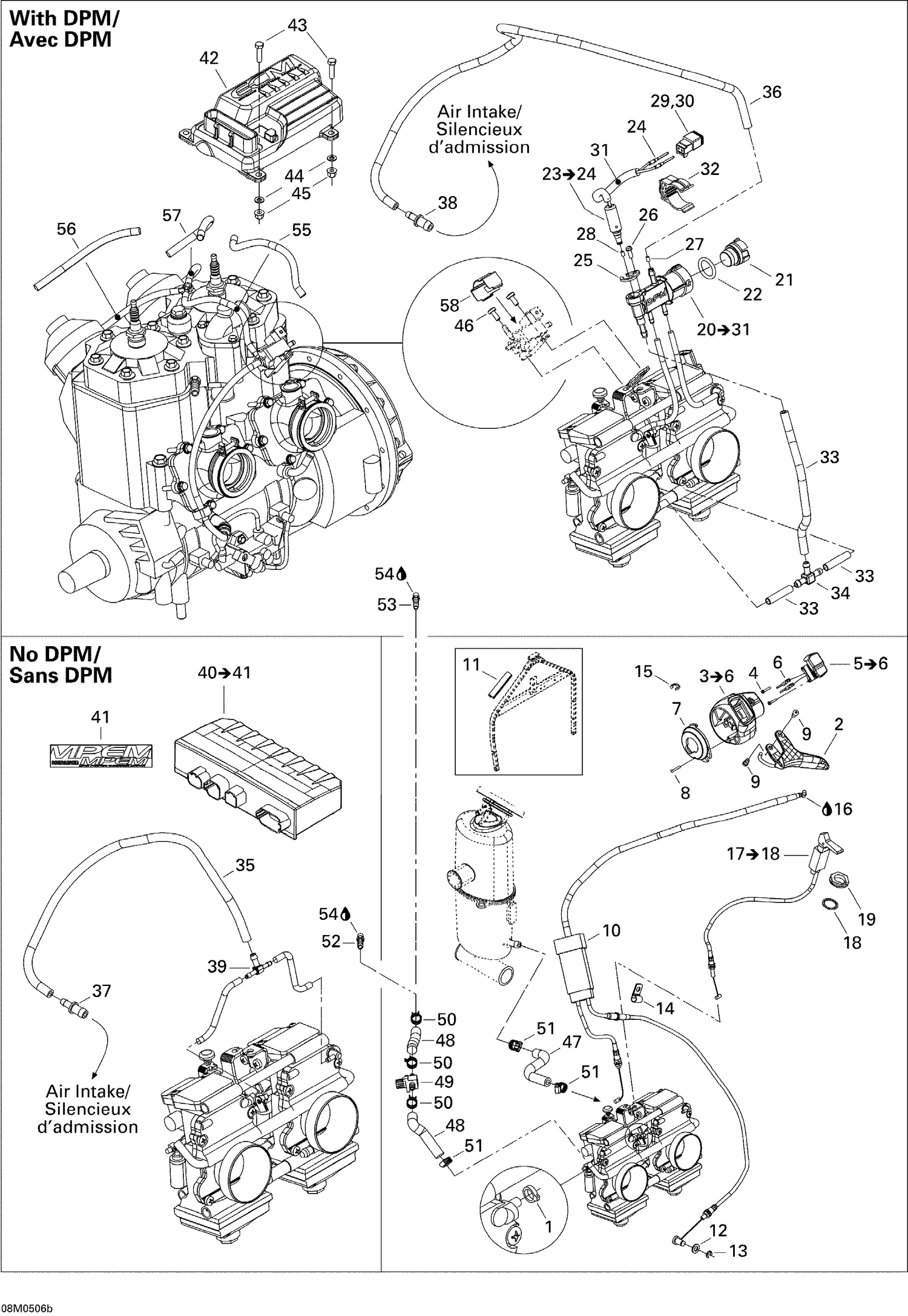

01- Engine, GSX 500SS

Parts (49)

Ref	Part Number	Description
1	293750001	Tie Wrap 94 mm
2	512060484	Throttle Handle Ass'y This part replaces 512059766.
4	250000098	PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership
6	515175232	Male Terminal
7	512059698	COVER - Call your local BRP dealership
8	250000098	PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership
9	732601143	Flange Screw
10	512060085	Throttle Cable This part replaces 512059856.
11	512059750	PROTECTOR - Call your local BRP dealership
12	234081100	Flat Washer 8 mm, Nylon
13	414753500	Circlip
14	414176000	Open Clamp
15	414274500	Circlip
16	219704453	Was 293550004 Dielectric Grease, 150 g
18	394103300	Lock Washer, Interior Teeth
19	512059094	PLASTIC NUT - Call your local BRP dealership
20	XXX	Not Available As Spare Parts
21	XXX	Not Available As Spare Parts
22	XXX	Not Available As Spare Parts
23	XXX	Not Available As Spare Parts
24	XXX	Not Available As Spare Parts
25	XXX	Not Available As Spare Parts
26	XXX	Not Available As Spare Parts
27	XXX	Not Available As Spare Parts
28	XXX	Not Available As Spare Parts
29	XXX	Not Available As Spare Parts
30	XXX	Not Available As Spare Parts
31	XXX	Not Available As Spare Parts
32	XXX	Not Available As Spare Parts
33	XXX	Not Available As Spare Parts
34	XXX	Not Available As Spare Parts
36	XXX	Not Available As Spare Parts
38	XXX	Not Available As Spare Parts
41	516000245	Electrical Box Decal
42	XXX	Not Available As Spare Parts
43	XXX	Not Available As Spare Parts
44	XXX	Not Available As Spare Parts
45	XXX	Not Available As Spare Parts
46	XXX	Not Available As Spare Parts
47	509000171	FORMED HOSE - Call your local BRP dealership
48	509000093	Hose 8 mm
49	512059324	Valve 5/16”
50	414655700	Spring Clamp
51	293650170	Tridon Gear Clamp
53	XXX	Not Available As Spare Parts
54	219704455	Was 293800018 Loctite 592, 50 ml
55	XXX	Not Available As Spare Parts
56	XXX	Not Available As Spare Parts
57	XXX	Not Available As Spare Parts
