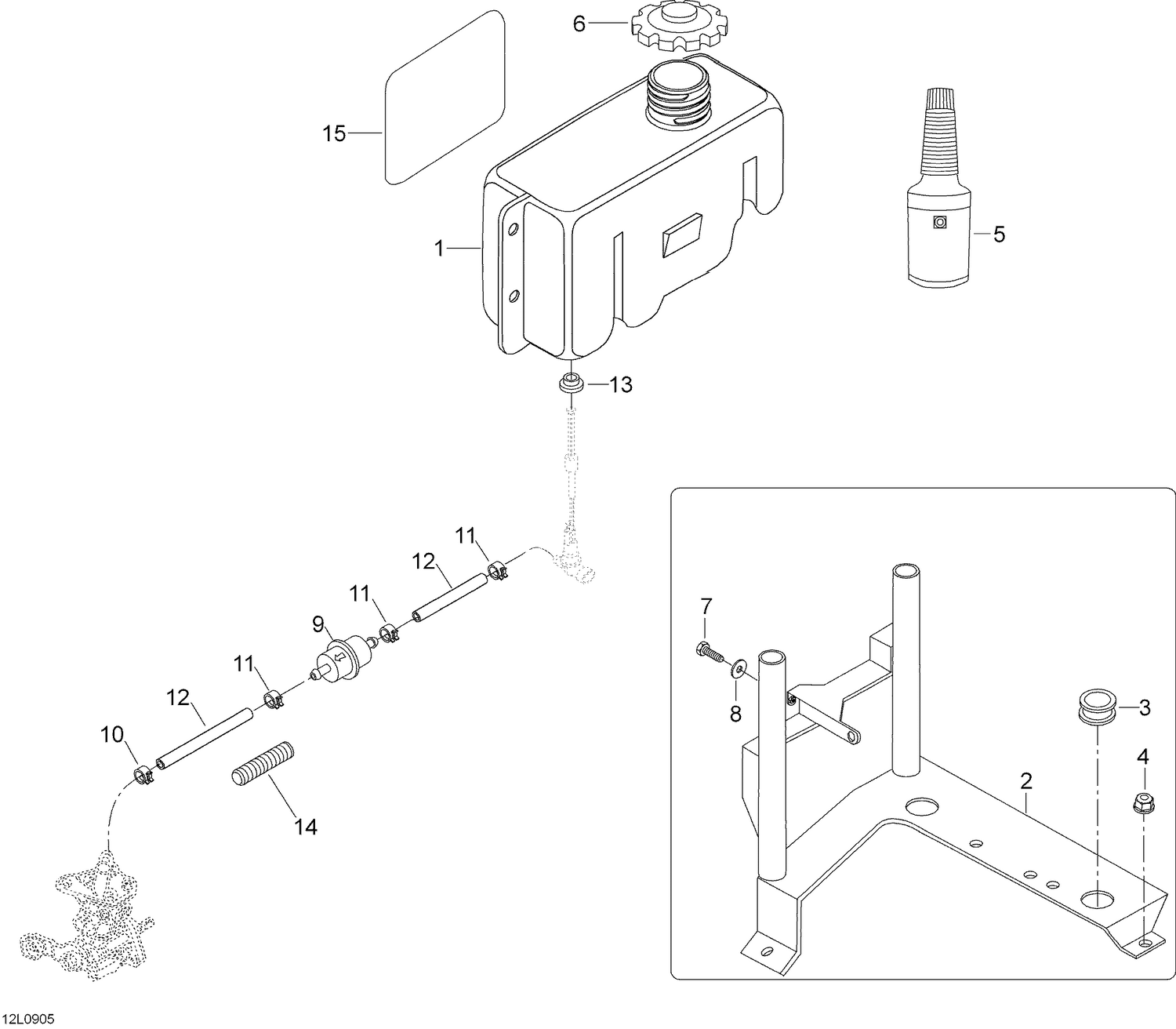

02- Oil System
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5142700 | Oil tank |
| 2 | 605355528 | Support |
| 3 | 28022 | Grommet |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 5 | 619590104 | Semi synthetic oil 3 x 4l |
| 6 | 519000044 | CAP - Call your local BRP dealership |
| 7 | 40322 | SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 8 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 9 | 414536500 | Oil filter |
| 10 | 414420700 | Universal Spring Clamp |
| 11 | 414415200 | Spring clip |
| 12 | 39046 | Oil line |
| 13 | 570023000 | Grommet |
| 14 | 409901800 | Tubing |
