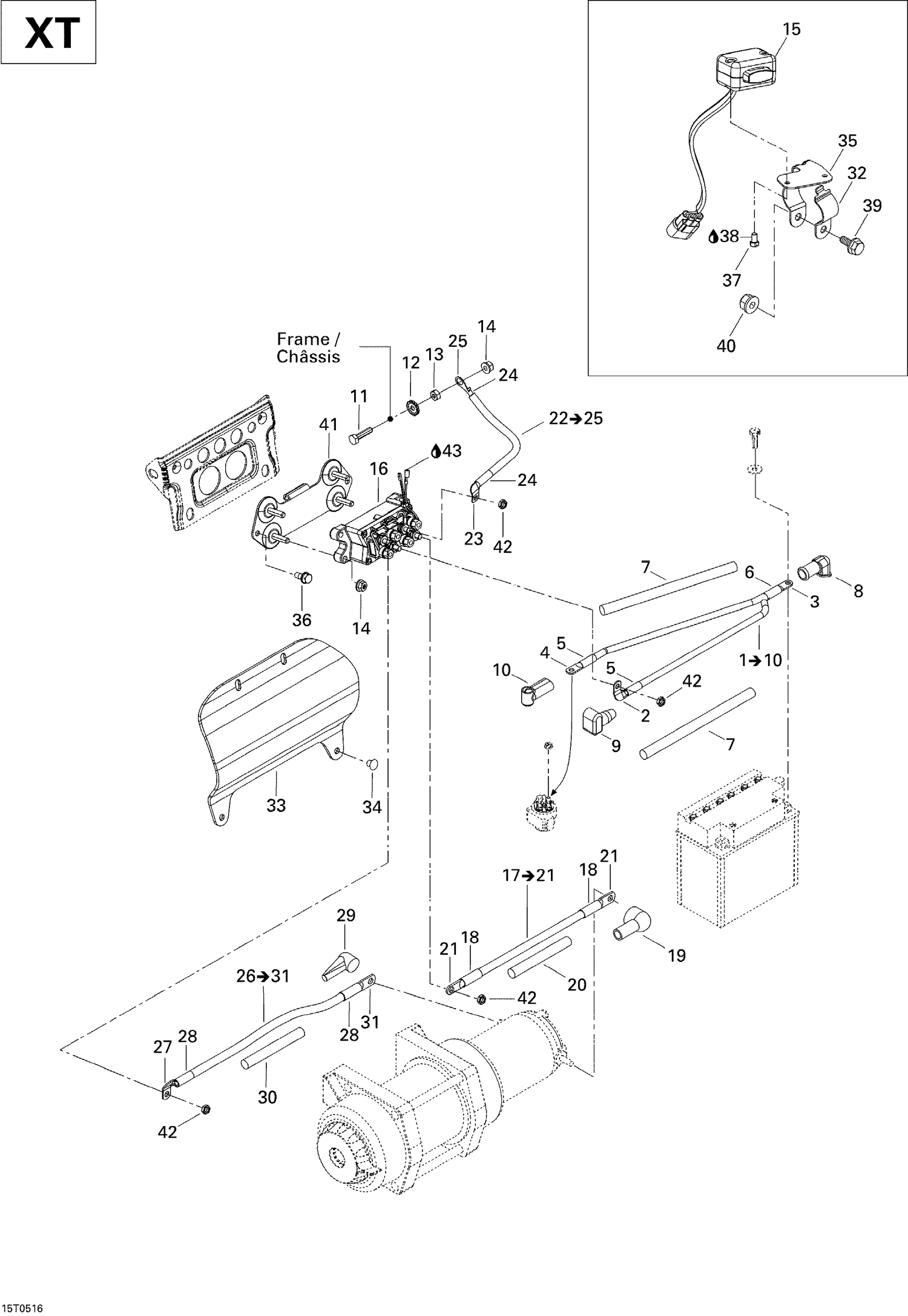

10- Electrical Harness, Front Section

10- Electrical Harness, Front Section

Parts (38)

RefPart NumberDescription
2 710000475 TERMINAL_FEMALE - Call your local BRP dealership
3 710000478 FLAT OPEN BAREL 6.6 MM - Call your local BRP dealership
4 710000479 Flat Open Barel 6.6 mm
5 219704447 Was 710000483 Heat Shrink Tubing
6 275500578 Shrink Tubing
7 710000497 PROTECTOR TUBE, 9 MM - Call your local BRP dealership
8 710000495 Protector Cap
9 710000523 Protector Cap
10 710000527 Protector Cap
11 207162044 Hex. Screw M6 X 20
12 234461608 External Serrated Lock Washer 6 mm
13 232061414 Hex. Nut M6
14 233261414 Hex. Flange Elastic Nut M6 x 1.0
15 710001001 WINCH INTERRUPTER - Call your local BRP dealership This part replaces 710000827.
16 710001000 Winch Solenoid This part replaces 710000826.
18 219704447 Was 710000483 Heat Shrink Tubing
19 710000494 Protector Cap
20 710000497 PROTECTOR TUBE, 9 MM - Call your local BRP dealership
21 710000530 Open Barrel
23 710000475 TERMINAL_FEMALE - Call your local BRP dealership
24 219704447 Was 710000483 Heat Shrink Tubing
25 710000530 Open Barrel
27 710000476 OPEN BARREL, 6.6 MM - Call your local BRP dealership
28 219704447 Was 710000483 Heat Shrink Tubing
29 710000494 Protector Cap
30 710000497 PROTECTOR TUBE, 9 MM - Call your local BRP dealership
31 710000530 Open Barrel
32 710000566 Collar
33 710000511 Protector Pad
34 293730011 Black, Dart
35 710000564 Support, Black
36 210261050 Hex. Forming Screw M6 X 10 This part replaces 210261080.
37 250000153 Hex. Cap Screw 6-32 X 1/4"
38 293800060 Loctite 243, 10 ml
39 207661654 Hex. Flange Screw M6 X 16 This part replaces 207661684.
40 233261494 Hex. Flange Elastic Nut M6
41 710000535 SOLENOID SUPPORT, BLACK - Call your local BRP dealership
42 232561414 Elastic Stop Nut M6
