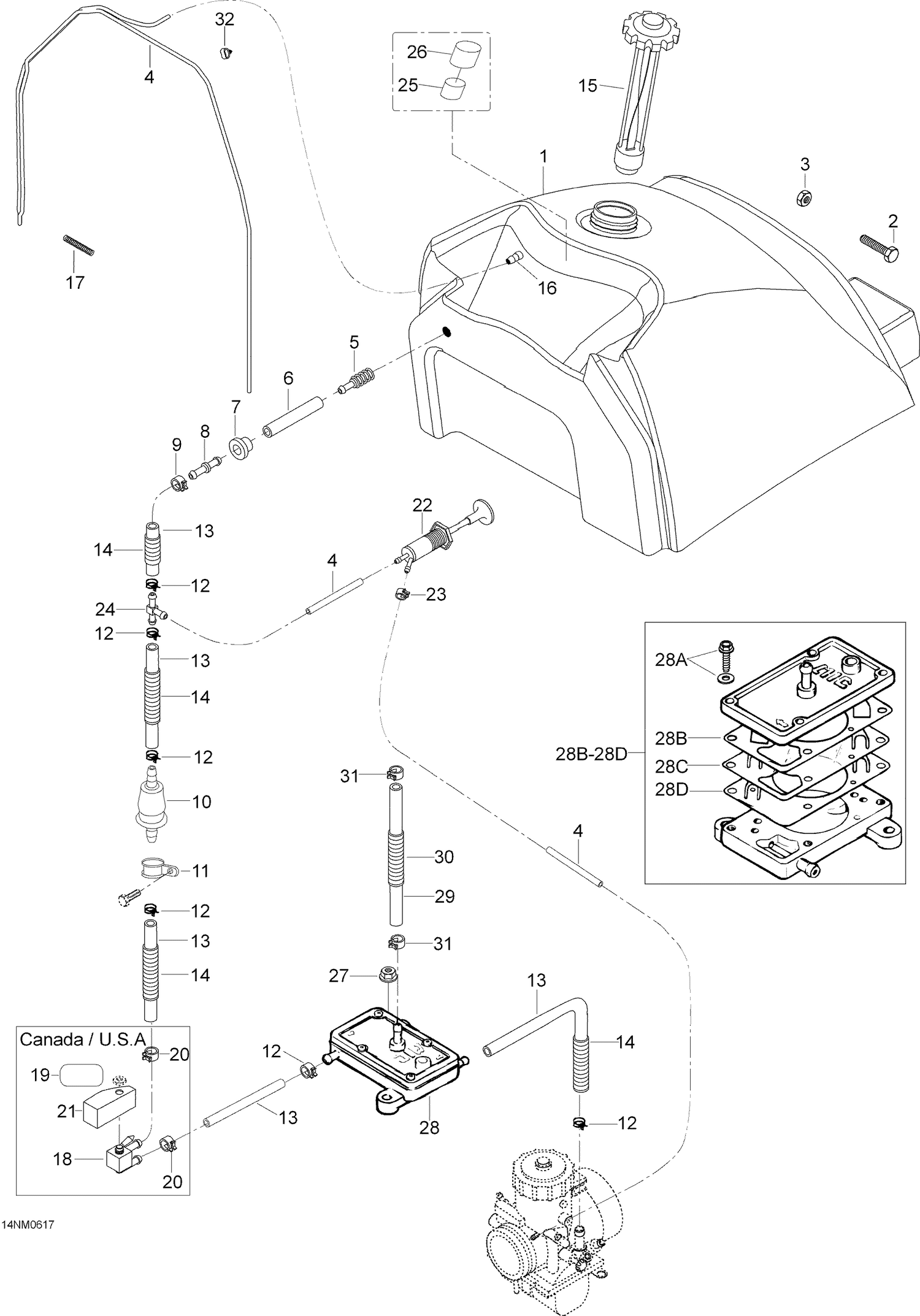

02- Fuel System
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | M5145048 | Fuel Tank |
| 2 | M40826 | Hex. Screw |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 4 | M39035 | HOSE - Call your local BRP dealership |
| 5 | 414865700 | Fuel Filter |
| 6 | M39030 | Hose |
| 7 | 570045500 | Grommet |
| 8 | 414518500 | Male Connector |
| 9 | 414554800 | Spring Clamp |
| 10 | 605352516 | Fuel Filter |
| 11 | M27039 | CLAMP - Call your local BRP dealership |
| 12 | M27086 | Spring Clamp |
| 13 | 219704397 | Hose 5/8 1000MM LONG - Call your local BRP dealership |
| 14 | M28012 | HOUSING - Call your local BRP dealership |
| 15 | 605349994 | Cap Fuel Tank |
| 16 | 404127600 | NIPPLE - Call your local BRP dealership |
| 17 | M25006 | SPRING - Call your local BRP dealership |
| 22 | 415060500 | Primer |
| 23 | M543230 | Clamp-spring |
| 24 | M21067 | T Fitting |
| 25 | M5446811 | HOLDER - Call your local BRP dealership |
| 26 | 605450311 | Plug Hose |
| 27 | 232561414 | Elastic Stop Nut M6 |
| 28 | 403800800 | FUEL PUMP DF44-226A - Call your local BRP dealership |
| 28A | 404118500 | Screw |
| 28B | 420831935 | Gasket |
| 28C | 420861137 | Pump-diaphragm |
| 28D | 420861135 | Pump Case Gasket |
| 29 | 219704410 | Polyurethane Hose 10000Mm Long |
| 30 | M28015 | HOUSING - Call your local BRP dealership |
| 31 | 414420700 | Spring Clamp |
