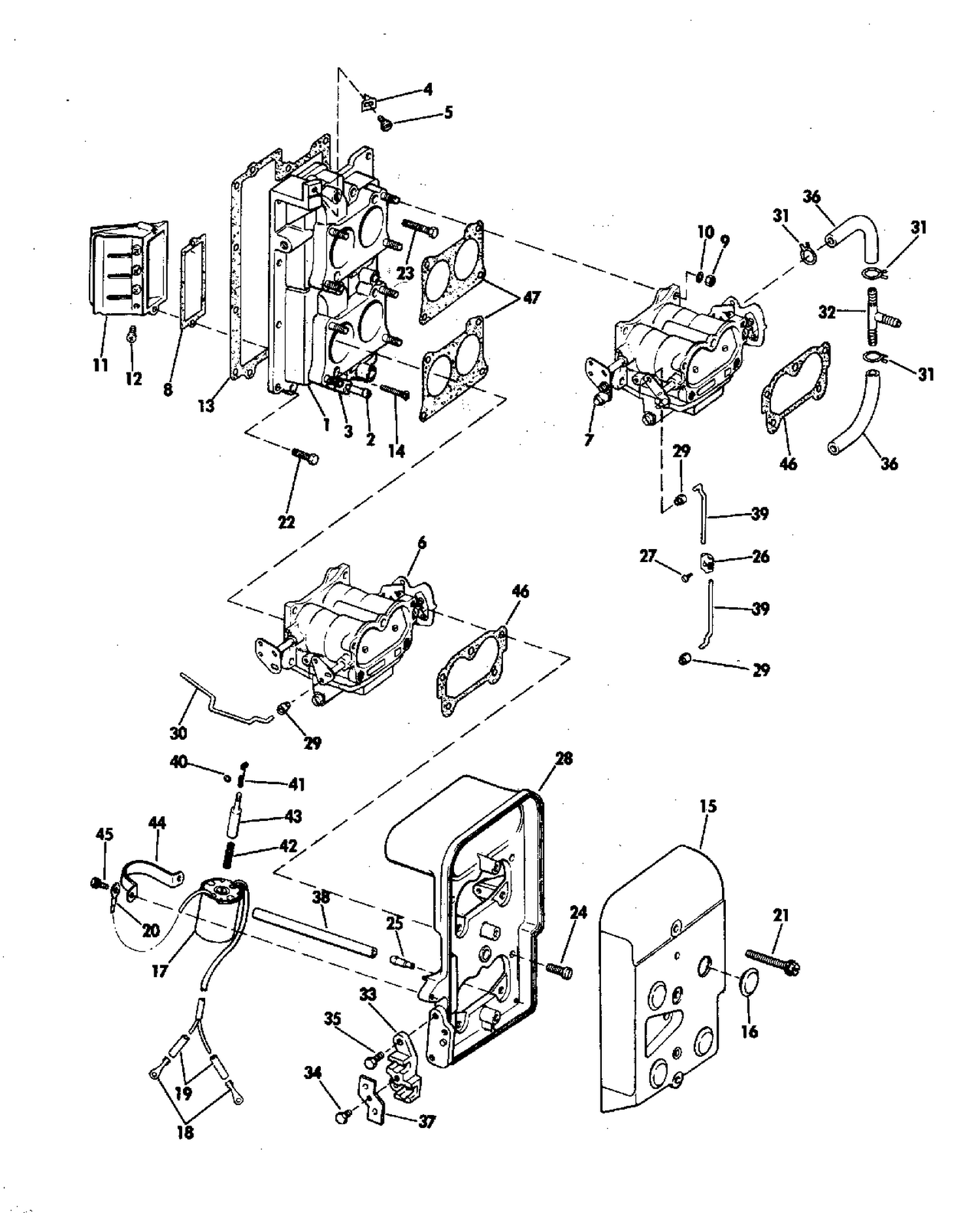

| Ref | Part Number | Description |
|---|
| 1 |
0385658 |
INTAKE MANIFOLD ASSY |
| 3 |
0314956 |
STUD |
| 4 |
0330115 |
CLAMP, Power pack connector This part replaces 0318174. |
| 5 |
0303212 |
VIS, collier & capot |
| 6 |
0385476 |
CARB ASSY ., Lower |
| 7 |
0385475 |
CARB ASSY., Upper |
| 8 |
0321907 |
GASKET, Leaf plate This part replaces 0316653. |
| 9 |
0328742 |
NUT This part replaces 0306338. |
| 11 |
0385465 |
LEAF PLATE ASSY |
| 13 |
0319174 |
GASKET, Exhaust cover, 85, 100, 115 hp This part replaces 0316129. |
| 14 |
0316116 |
SCREW |
| 15 |
0385254 |
COVER ASST |
| 16 |
0316074 |
BOUCHON, couvercle de volant-moteur |
| 21 |
0981185 |
SCREW, Cover to base This part replaces 0308686. |
| 22 |
0302288 |
BOLT |
| 23 |
0306493 |
SCREW, Regulator mounting |
| 24 |
0315092 |
SCREW, Air silencer base |
| 26 |
0318974 |
FASTENER, Cable clamp |
| 27 |
0303686 |
SCREW, Fastener |
| 28 |
0318507 |
BASE, Air silencer |
| 29 |
0313329 |
LOCKWASHER, Carburetor link |
| 30 |
0384148 |
LINK ASS |
| 32 |
0319741 |
TEE This part replaces 0315228. |
| 33 |
0318509 |
ANCHOR BLOCK |
| 34 |
0306419 |
SCREW |
| 35 |
0307604 |
SCREW |
| 36 |
HOSE, |
Tee to carburetor |
| 37 |
0321383 |
CLAMP, Throttle shift cable This part replaces 0318508. |
| 38 |
HOSE, |
Air silencer |
| 39 |
0314897 |
HOSE, Air silencer |
| 40 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 41 |
0387788 |
LINK & PLUNGER ASSY, 85 HP This part replaces 0317614. |
| 42 |
0314026 |
SPRING |
| 43 |
0313636 |
PLUNGER |
| 44 |
0315060 |
YOKE, Choke soleniod, 85 HP only |
| 46 |
0386573 |
GASKET SET, Air silencer This part replaces 0316508. |
