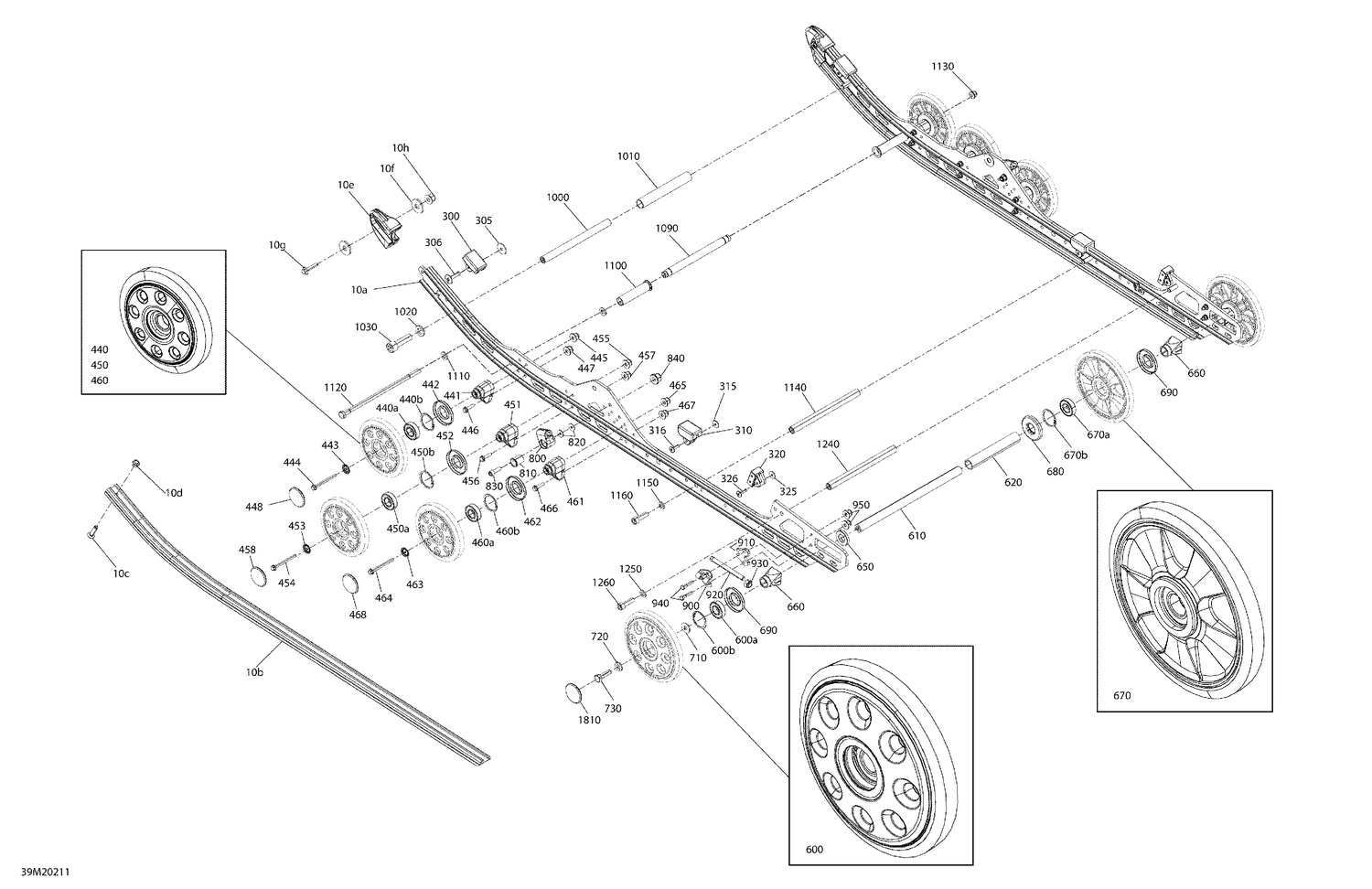

08- Suspension, Rear - Lower Section - Adrenaline
Parts (86)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 503193552 | Black, Runner 137" |
| 10b | 503191306 | Black, Slider Shoe 137'' |
| 10c | 208562531 | Phillips Screw M6 X 25 |
| 10d | 232561434 | Elastic Stop Nut M6 |
| 10e | 503196873 | Rail Protector This part replaces 503192530. |
| 10f | 250200140 | Washer |
| 10g | 207652544 | Hex. Flange Screw M5 X 25 |
| 10h | 233251434 | Flange Elastic Nut M5 |
| 300 | 503190576 | Rubber Stopper |
| 305 | 503191273 | Washer |
| 306 | 293150224 | Pop Rivet 3/16 |
| 310 | 503195523 | Rubber Stopper Ass'y |
| 315 | 503191273 | Washer |
| 316 | 293150224 | Pop Rivet 3/16 |
| 320 | 503192750 | Rubber Stopper |
| 325 | 503191273 | Washer |
| 326 | 293150224 | Pop Rivet 3/16 |
| 440a | 503190396 | Ball Bearing |
| 440b | 415129371 | Retaining Ring |
| 441 | 503193894 | Casted Support |
| 442 | 503190434 | Labyrinth Seal |
| 443 | 503191820 | Wheel Cup M6 |
| 444 | 250000944 | Hex. Flange Screw M6 X 70 |
| 445 | 233261466 | Hex. Flange Elastic Nut M6 |
| 446 | 250000945 | Hex. Flange Screw M6 X 25 |
| 447 | 233261466 | Hex. Flange Elastic Nut M6 |
| 448 | 503192771 | Black, Wheel Cap |
| 450a | 503190396 | Ball Bearing |
| 450b | 415129371 | Retaining Ring |
| 451 | 503193894 | Casted Support |
| 452 | 503190434 | Labyrinth Seal |
| 453 | 503191820 | Wheel Cup M6 |
| 454 | 250000944 | Hex. Flange Screw M6 X 70 |
| 455 | 233261466 | Hex. Flange Elastic Nut M6 |
| 456 | 250000945 | Hex. Flange Screw M6 X 25 |
| 457 | 233261466 | Hex. Flange Elastic Nut M6 |
| 458 | 503192771 | Black, Wheel Cap |
| 460a | 503190396 | Ball Bearing |
| 460b | 415129371 | Retaining Ring |
| 461 | 503193894 | Casted Support |
| 462 | 503190434 | Labyrinth Seal |
| 463 | 503191820 | Wheel Cup M6 |
| 464 | 250000944 | Hex. Flange Screw M6 X 70 |
| 465 | 233261466 | Hex. Flange Elastic Nut M6 |
| 466 | 250000945 | Hex. Flange Screw M6 X 25 |
| 467 | 233261466 | Hex. Flange Elastic Nut M6 |
| 468 | 503192771 | Black, Wheel Cap |
| 600a | 503190396 | Ball Bearing |
| 600b | 415129371 | Retaining Ring |
| 610 | 503190429 | Rear Axle |
| 620 | 503196317 | Spacer This part replaces 503190430. |
| 650 | 503190432 | Washer |
| 660 | 503190428 | Rear Wheel Spacer |
| 670a | 503190396 | Ball Bearing |
| 670b | 415129371 | Retaining Ring |
| 680 | 503190682 | Labyrinth Seal |
| 690 | 503190434 | Labyrinth Seal |
| 710 | 503191910 | Washer |
| 720 | 234201474 | Conical Spring Washer 10 mm |
| 730 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 800 | 861805547 | Spring Support Kit This part replaces 503195351. |
| 810 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 820 | 234082410 | Flat Washer 8 mm |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 840 | 233281466 | Elastic Flange Nut M8 |
| 900 | 503192583 | Tensioner |
| 910 | 503193250 | Spacer |
| 920 | 230100054 | Hex Screw M10 x 100 |
| 930 | 233601466 | Elastic Locking Nut M10 |
| 940 | 207063054 | Hex. Cap Screw M6 X 30 |
| 950 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1000 | 503191260 | Axle Strap |
| 1010 | 503196943 | Spacer This part replaces 503192678. |
| 1020 | 503192496 | Washer |
| 1030 | 205503554 | Socket Head Screw M10 X 35 |
| 1090 | 503193435 | Pivot Axle |
| 1100 | 503191259 | Center Bushing |
| 1110 | 250200143 | Flat Washer |
| 1120 | 503193227 | Bolt M10 X 251MM |
| 1130 | 233201466 | Flange Elastic Nut M10 |
| 1140 | 503191260 | Axle Strap |
| 1150 | 503192496 | Washer |
| 1160 | 205503554 | Socket Head Screw M10 X 35 |
| 1240 | 503191260 | Axle Strap |
| 1250 | 503192496 | Washer |
| 1260 | 205503554 | Socket Head Screw M10 X 35 |
