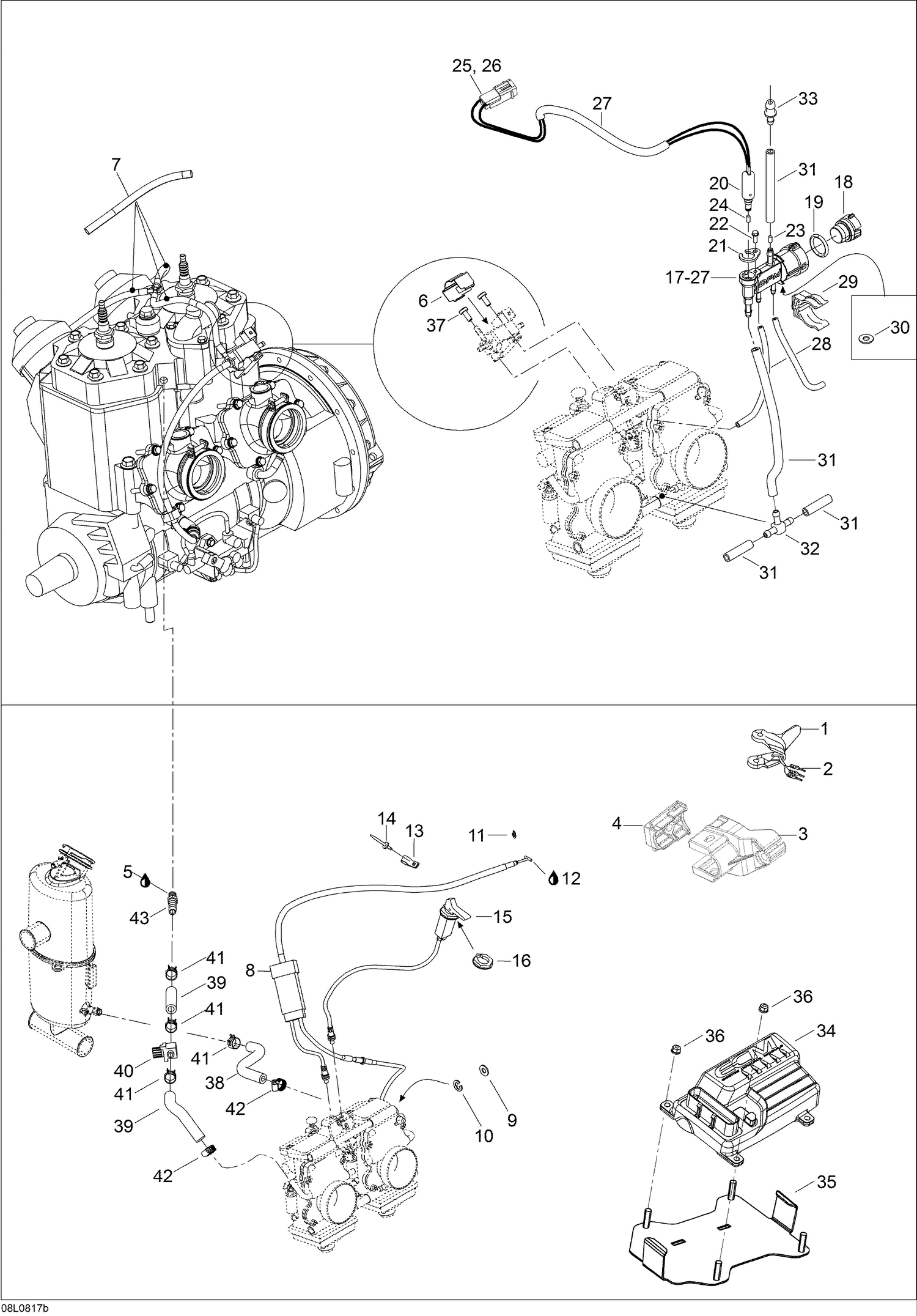

| Ref | Part Number | Description |
|---|
| 1 |
605354964 |
Kaasuvipu, lämmitetty |
| 2 |
605642628 |
CONNECTOR - Call your local BRP dealership |
| 3 |
512060197 |
LOWER HOUSING - Call your local BRP dealership |
| 4 |
512060198 |
Throttle handle body, upper part |
| 5 |
293800018 |
SEALANT LOCTITE 592 - Call your local BRP dealership |
| 6 |
512059809 |
Pidike, lämmitin |
| 7 |
28004 |
Suojaspiraali |
| 8 |
512060088 |
THROTTLE CABLE - Call your local BRP dealership |
| 9 |
234081100 |
Flat Washer 8 mm, Nylon |
| 10 |
414753500 |
Circlip This part replaces 31035. |
| 11 |
31038 |
Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 13 |
414115200 |
Tie-Rap 180 mm This part replaces 27026. |
| 14 |
36037 |
Pakoputken kannake |
| 15 |
512059266 |
CHOKE CABLE - Call your local BRP dealership |
| 16 |
512059094 |
PLASTIC NUT - Call your local BRP dealership |
| 18 |
270600009 |
CAP - Call your local BRP dealership |
| 19 |
293300042 |
O-RING - Call your local BRP dealership |
| 20 |
515175701 |
PRESSURE MANIFOLD HARNESS - Call your local BRP dealership |
| 21 |
415061600 |
SOLENOID LOCK - Call your local BRP dealership |
| 22 |
241140060 |
Hex. flanged screw K40 x 10 |
| 23 |
404161819 |
Käynnistinsuutin |
| 24 |
404161825 |
STARTER JET - Call your local BRP dealership |
| 25 |
515175670 |
Female terminal housing (2-circuits) |
| 26 |
515175675 |
Female lock (2 circuits) |
| 27 |
515175332 |
Vinyl Tubing, Low Temperature |
| 28 |
605639003 |
Pa-letku |
| 29 |
512058919 |
SUPPORT - Call your local BRP dealership |
| 30 |
504073700 |
WASHER - Call your local BRP dealership |
| 31 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership |
| 32 |
414729300 |
T-FITTING - Call your local BRP dealership |
| 33 |
293710035 |
Straight fitting |
| 34 |
512060226 |
CALIBRATED MODULE - Call your local BRP dealership |
| 35 |
605354065 |
ECM kiinnike |
| 36 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 37 |
40063 |
Uraruuvi M5 x 12 |
| 38 |
605354596 |
Letku |
| 39 |
509000093 |
Engine outlet hose |
| 40 |
512059324 |
Valve 5/16” |
| 41 |
414655700 |
Jousiklemmari |
| 42 |
293650170 |
Tridon Gear Clamp |
