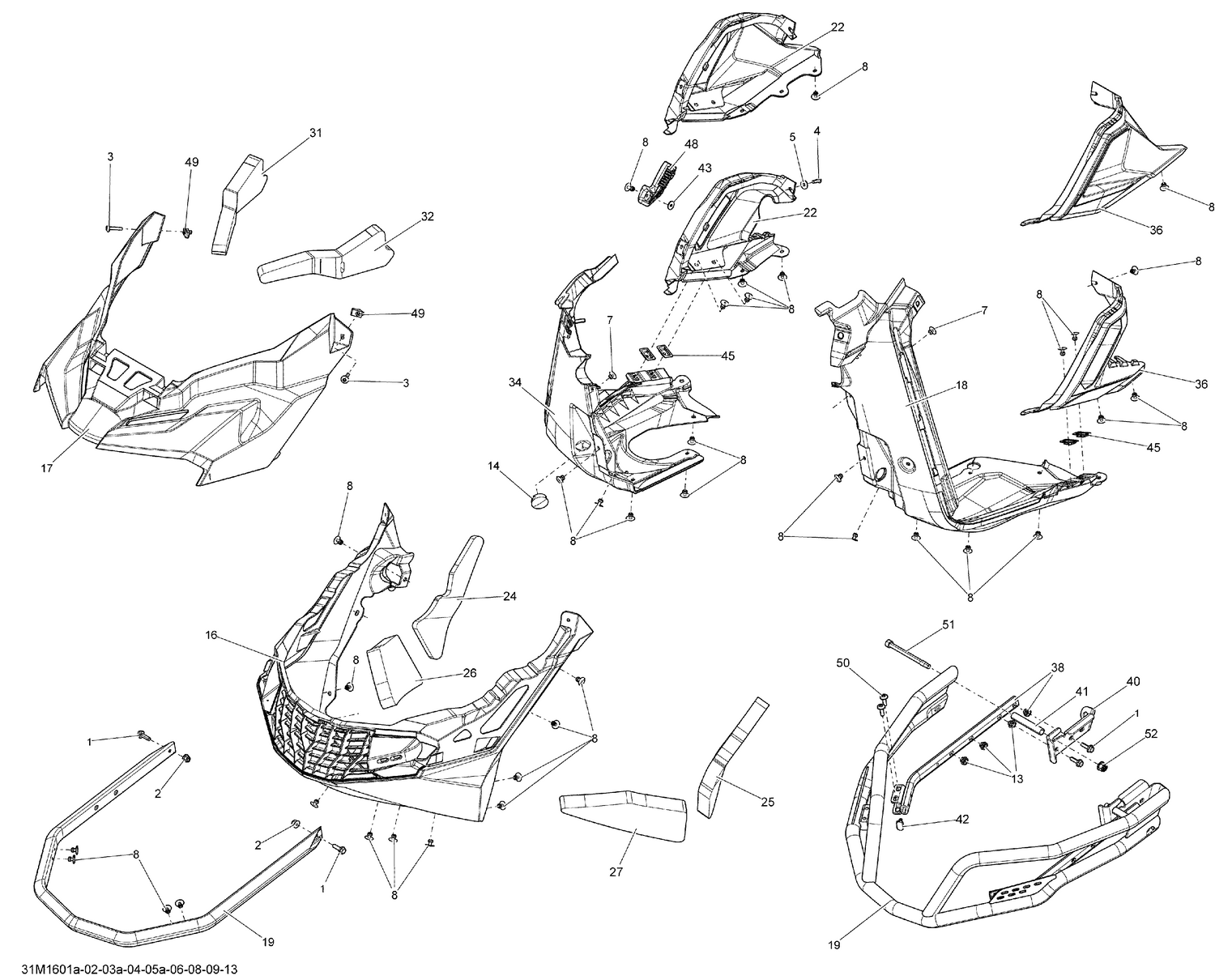

09- Bottom Pan
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3 | 250000587 | Torx Screw M5 X 26 |
| 4 | 250000652 | Socket Screw M5 X .80 X 16 |
| 5 | 250200025 | Washer M5 |
| 7 | 293150103 | Pop Rivet 3/16" |
| 8 | 293150104 | Pop Rivet 3/16" |
| 13 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450232. |
| 14 | 414916600 | Black, Nylon Cap |
| 16 | 502007516 | Red Front Bottom Pan |
| 17 | 502007517 | Red Bottom Pan Cap |
| 18 | 502007175 | Black LH Bottom Pan |
| 19 | 860201167 | Black Front Bumper This part replaces 502007176. |
| 22 | 502007514 | PANEL_BOTTOM PAN RH B-357 - Call your local BRP dealership |
| 23 | 502007515 | Manta Green LH Side Bottom Pan Panel |
| 24 | 502007243 | RH Bottom Pan Upper Foam |
| 25 | 502007244 | LH Bottom Pan Upper Foam |
| 26 | 502007245 | RH Bottom Pan Lower Foam |
| 27 | 502007246 | LH Bottom Pan Lower Foam |
| 31 | 502007263 | RH Bottom Pan Cap Foam |
| 32 | 502007264 | LH Bottom Pan Cap Foam |
| 34 | 502007340 | Black RH Bottom Pan |
| 36 | 502007515 | Manta Green LH Side Bottom Pan Panel |
| 38 | 502007801 | Tube This part replaces 502007493. |
| 40 | 502007496 | LH Plate |
| 41 | 502007498 | Pipe |
| 42 | 502007499 | Black Rubber Cap |
| 43 | 517124300 | Washer |
| 45 | 517305109 | Rivet Plate |
| 48 | 517305280 | Stopper Bumper |
| 49 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 50 | 250000721 | Torx Truss Screw M6 X 16 |
| 51 | 250000833 | Socket Screw M8 X 1.25 |
| 52 | 233281464 | Elastic Flange Nut M8 |
