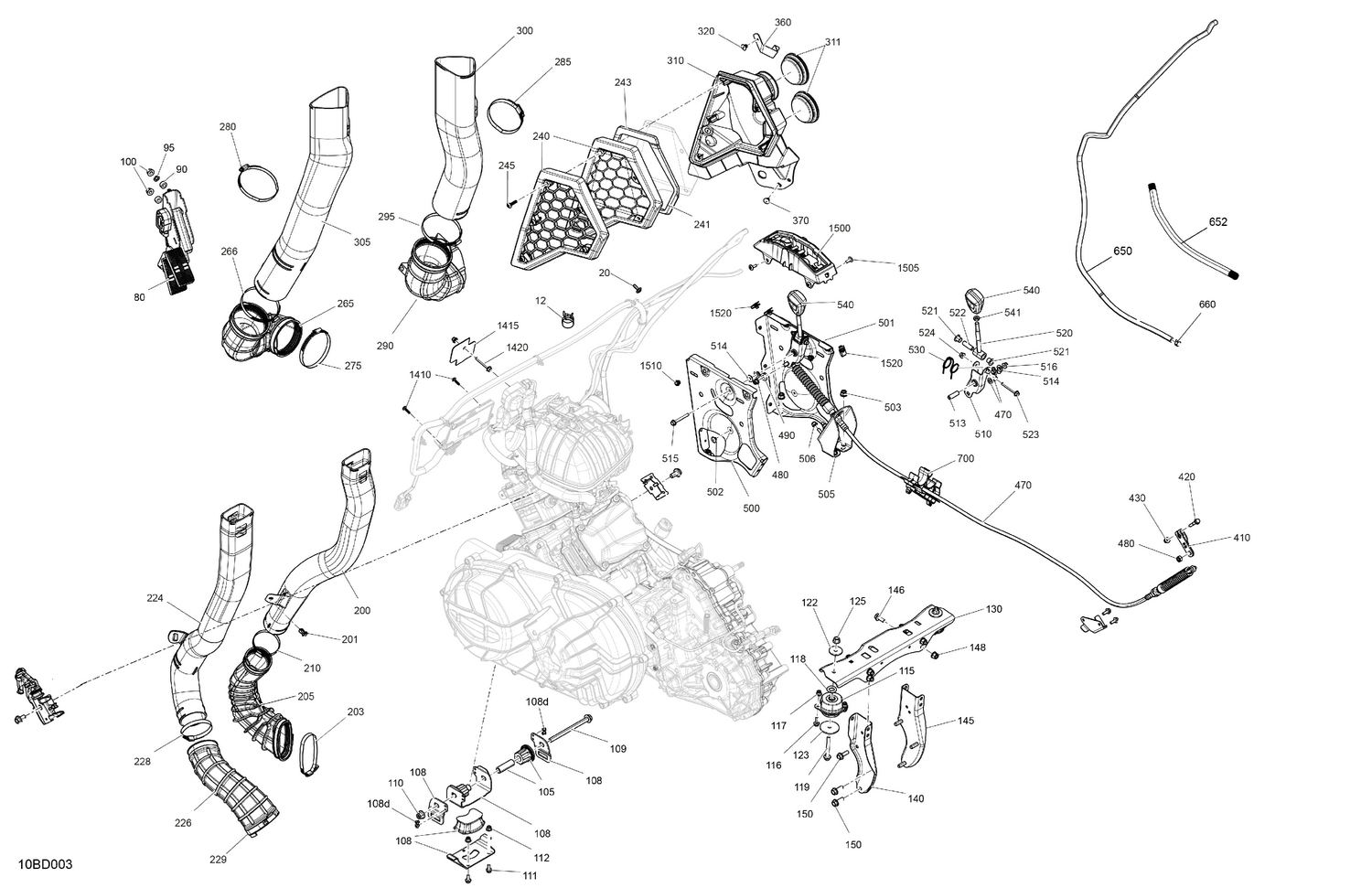

02- Engine - System
Parts (87)
| Ref | Part Number | Description |
|---|---|---|
| 12 | 293650214 | Norma Spring Clamp |
| 20 | 250000959 | Screw PT Type K-50 X 16 |
| 80 | 707001166 | Accelerator Pedal |
| 90 | 707000848 | Bushing |
| 95 | 250100031 | Push Nut |
| 100 | 233081436 | Hex. Flange Nut |
| 105 | 707001169 | Vibration Damper |
| 108d | 390402200 | Pop Rivet 3/16" |
| 109 | 230603546 | Hex. Flange Screw M10 X 135 |
| 110 | 233201436 | Hex. Flange Elastic Nut M10 |
| 111 | 207662044 | Hex. Flange Screw M6 X 20 |
| 112 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 115 | 707002590 | Rubber Mount |
| 116 | 207662044 | Hex. Flange Screw M6 X 20 |
| 117 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 118 | 293300215 | O-Ring |
| 119 | 207686544 | Hex. Flange Screw, M8 X 65 |
| 122 | 250200158 | Flat Washer M8 |
| 123 | 250200180 | Flat Washer M8 |
| 125 | 233081436 | Hex. Flange Nut |
| 130 | 707002290 | Rear Link Bracket |
| 140 | 707003338 | LH Rear Engine Support |
| 145 | 707003340 | RH Rear Engine Support |
| 146 | 207582046 | Hex Flange Screw M8 X 20 |
| 148 | 233281416 | Hex. Elastic Flange Nut M8 |
| 150 | 207582046 | Hex Flange Screw M8 X 20 |
| 200 | 706600259 | Front CVT Cooling Duct |
| 201 | 293150230 | Tuflok Plastic Rivet |
| 203 | 514052924 | Norma Clamp |
| 205 | 706600258 | Flexible Adapter |
| 210 | 293650091 | Norma Clamp |
| 224 | 706600256 | Rear CVT Cooling Duct |
| 226 | 706600332 | Adapter |
| 228 | 293650091 | Norma Clamp |
| 229 | 514052924 | Norma Clamp |
| 240 | 706600418 | CVT Filter |
| 241 | 706600191 | Gasket |
| 243 | 706600231 | Gasket |
| 245 | 250000980 | Hex. Screw Pt K60 X 25 |
| 265 | 706600257 | CVT Cooling Duct Out |
| 266 | 514052983 | Norma Gear Clamp |
| 275 | 514052983 | Norma Gear Clamp |
| 280 | 514052983 | Norma Gear Clamp |
| 285 | 293650091 | Norma Clamp |
| 290 | 706600261 | Air Baffle |
| 295 | 514052983 | Norma Gear Clamp |
| 300 | 706600268 | Pipe Vent |
| 305 | 706600269 | Pipe Vent |
| 310 | 706600196 | CVT Airbox |
| 311 | 707002217 | Plug |
| 320 | 293150104 | Pop Rivet 3/16" |
| 360 | 706600237 | Support |
| 370 | 293150104 | Pop Rivet 3/16" |
| 410 | 707000911 | Lever |
| 420 | 207663544 | Hex. Flange Screw M6 X 35 |
| 430 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 470 | 707002000 | Shifting Cable |
| 480 | 232581414 | Hex. Elastic Stop Nut M8 |
| 490 | 234001410 | Flat Washer 10 mm |
| 500 | 707002099 | LH Bracket |
| 501 | 707002100 | RH Bracket |
| 502 | 293150103 | Pop Rivet 3/16" |
| 503 | 233281416 | Hex. Elastic Flange Nut M8 |
| 505 | 707002098 | Cable Support |
| 506 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 510 | 707002093 | Lower Lever Arm |
| 513 | 707001376 | Bushing |
| 514 | 234062410 | Flat Washer 6 mm |
| 515 | 207665044 | Hex. Flange Screw M6 X 50 |
| 516 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 520 | 707000711 | Upper Lever Arm |
| 521 | 707000869 | Flanged Bushing |
| 522 | 707001376 | Bushing |
| 523 | 207665044 | Hex. Flange Screw M6 X 50 |
| 524 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 530 | 707000750 | Lever Arm Spring |
| 540 | 707003211 | Lever Trim |
| 541 | 232180491 | Hex. Jam Nut M8 |
| 652 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 660 | 293650042 | Oetiker Clamp |
| 700 | 707002116 | Hose Support |
| 1410 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1415 | 710000073 | Insulator Pad |
| 1420 | 250000213 | Hex. Flange Screw M6 X 1.0 X 45 |
| 1500 | 707900603 | Lever Indicator |
| 1505 | 250000717 | Torx Head Screw M6 X 16 |
| 1510 | 250100199 | Insert Half Hex Body M6 x 1.0 |
