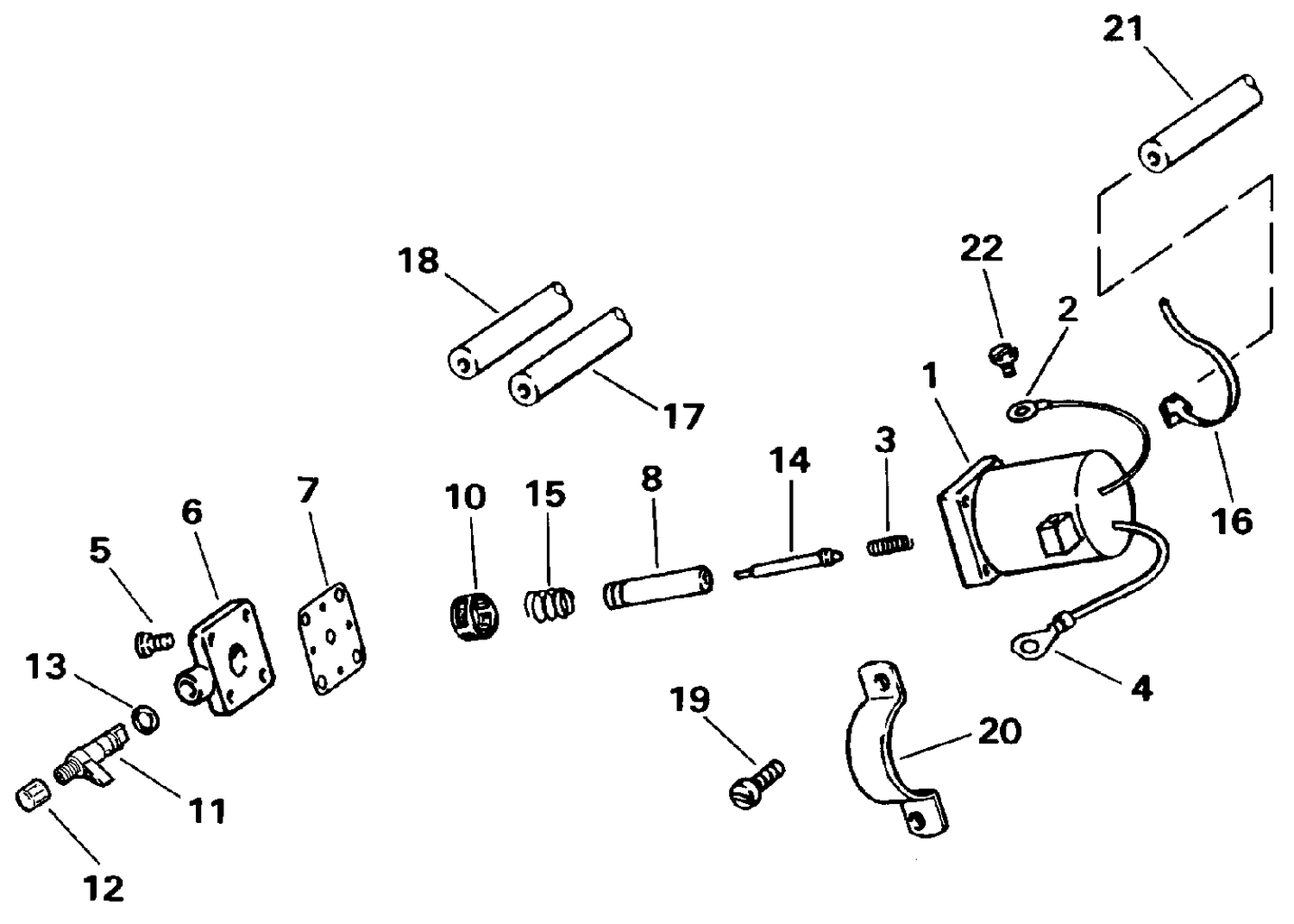

PRIMER SYSTEM
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5007356 | Kit Ay This part replaces 0434326. |
| 6 | 0511807 | COVER&GASKET AY |
| 7 | 0333448 | GASKET |
| 17 | HOSE, | Primer solenoid to lower carb., 9 1/2 in. (241mm) |
| 18 | HOSE, | Primer solenoid to upper carb., 14 in. (356mm) |
| 20 | 0330118 | CLAMP |
| 21 | HOSE, | Tee to primer solenoid 8 in. (203mm) |
