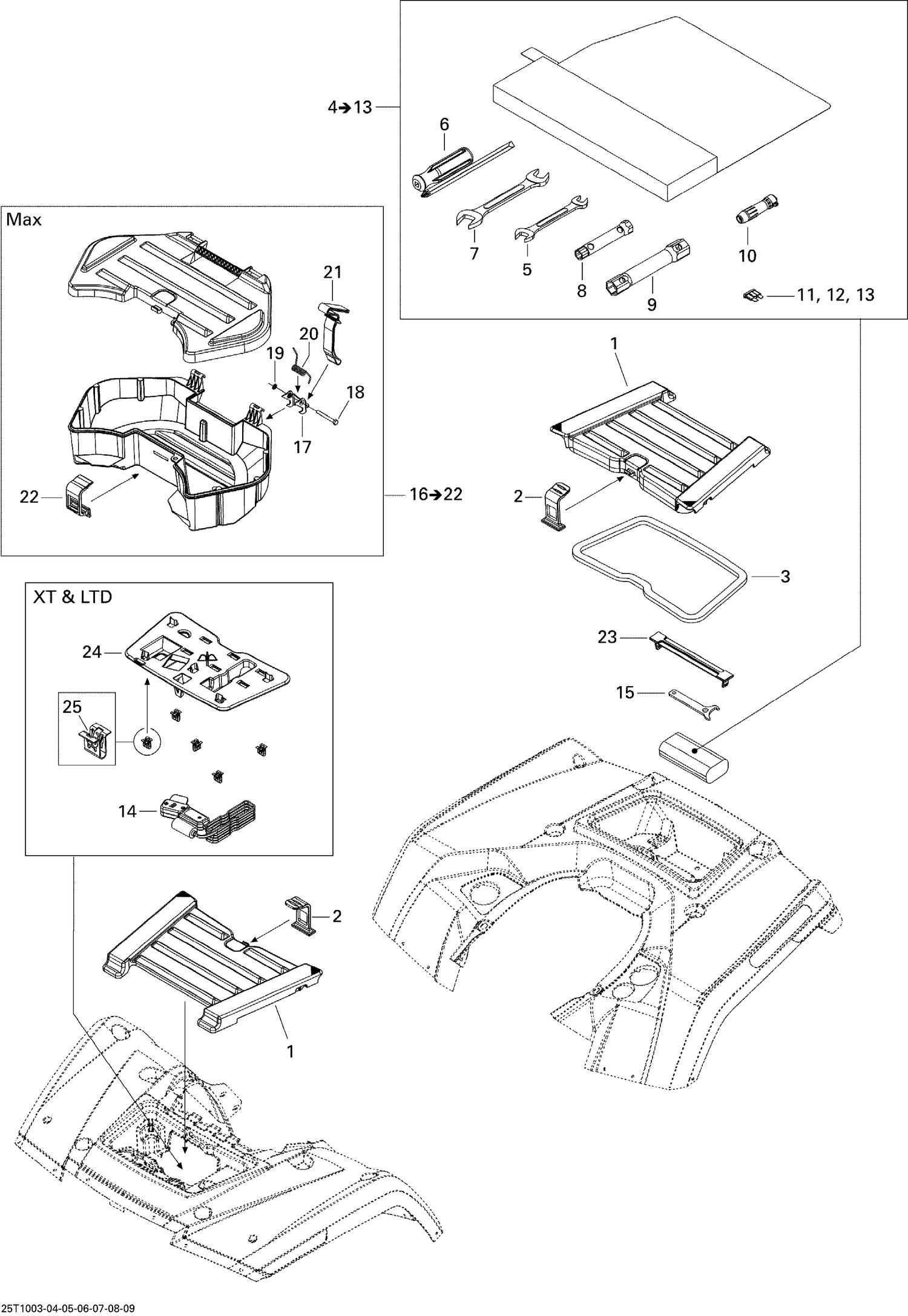

| Ref | Part Number | Description |
|---|
| 1 |
705003492 |
Storage Cover This part replaces 705001853. |
| 2 |
708200120 |
Cover Latch |
| 3 |
293250192 |
Neoprene Seal |
| 5 |
529000002 |
FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 6 |
529000004 |
SCREWDRIVER - Call your local BRP dealership |
| 7 |
529000003 |
FORK WRENCH 15/17 MM - Call your local BRP dealership |
| 8 |
529014900 |
Socket Wrench 10/13 mm |
| 9 |
Not |
Available As Spare Part - Socket Wrench 16/18 mm |
| 10 |
529000052 |
PRESSURE GAUGE - Call your local BRP dealership This part replaces 704700003. |
| 11 |
410917200 |
Fuse, 30 Amperes |
| 12 |
409003900 |
Fuse, 20 Amperes |
| 13 |
278000343 |
Fuse, 15 Amperes |
| 14 |
710001002 |
REMOTE CONTROL - Call your local BRP dealership |
| 15 |
529000035 |
Adjustment Wrench |
| 17 |
708200066 |
LATCH - Call your local BRP dealership |
| 18 |
207065544 |
Hex. Screw M6 X 55 |
| 19 |
732610072 |
Push Nut |
| 20 |
708000369 |
Spring |
| 21 |
510004495 |
BELT - Call your local BRP dealership |
| 22 |
708200120 |
Cover Latch |
| 23 |
708200121 |
COVER LATCH KIT - Call your local BRP dealership |
| 24 |
708200075 |
SUPPORT - Call your local BRP dealership |
