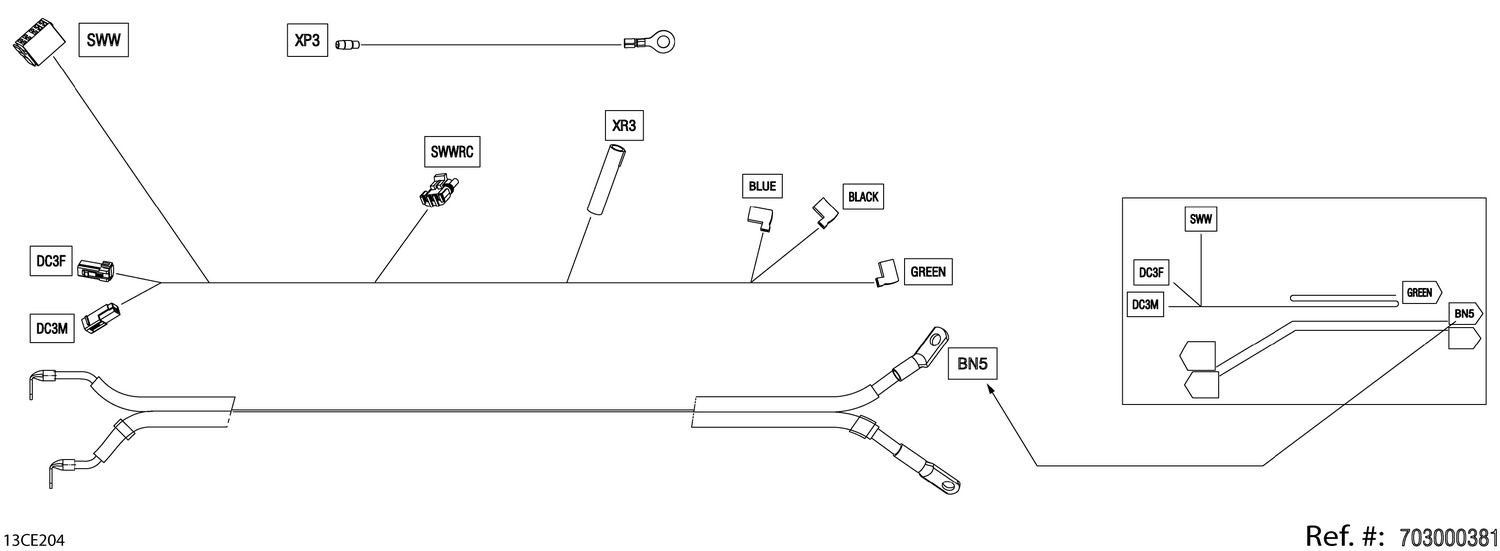

08- Electric - Winch Wiring Harness - 710008183
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| BLACK | 409010300 | Female Terminal |
| BLUE | 409010300 | Female Terminal |
| BN5 | 710003583 | Battery Cable Cap |
| DC3F | 515175231 | Female Terminal |
| DC3F | 515175658 | Female Housing, 2 Circuits |
| DC3M | 515175232 | Male Terminal |
| DC3M | 515175654 | Male Terminal Housing, 2 Circuits |
| GREEN | 409010300 | Female Terminal |
| SWW | 710002000 | Housing |
| SWW | 710003047 | Terminal |
| SWWRC | 278000223 | Female Terminal |
| SWWRC | 278000273 | Male Housing, 3 Circuits |
| SWWRC | 278001065 | Wire Seal |
| XP3 | 278001008 | Insulated Sheath |
| XP3 | 278002261 | Female Terminal |
| XR3 | 278000770 | Insulated Sheath |
| 380 | 710008183 | Winch Wiring Harness |
