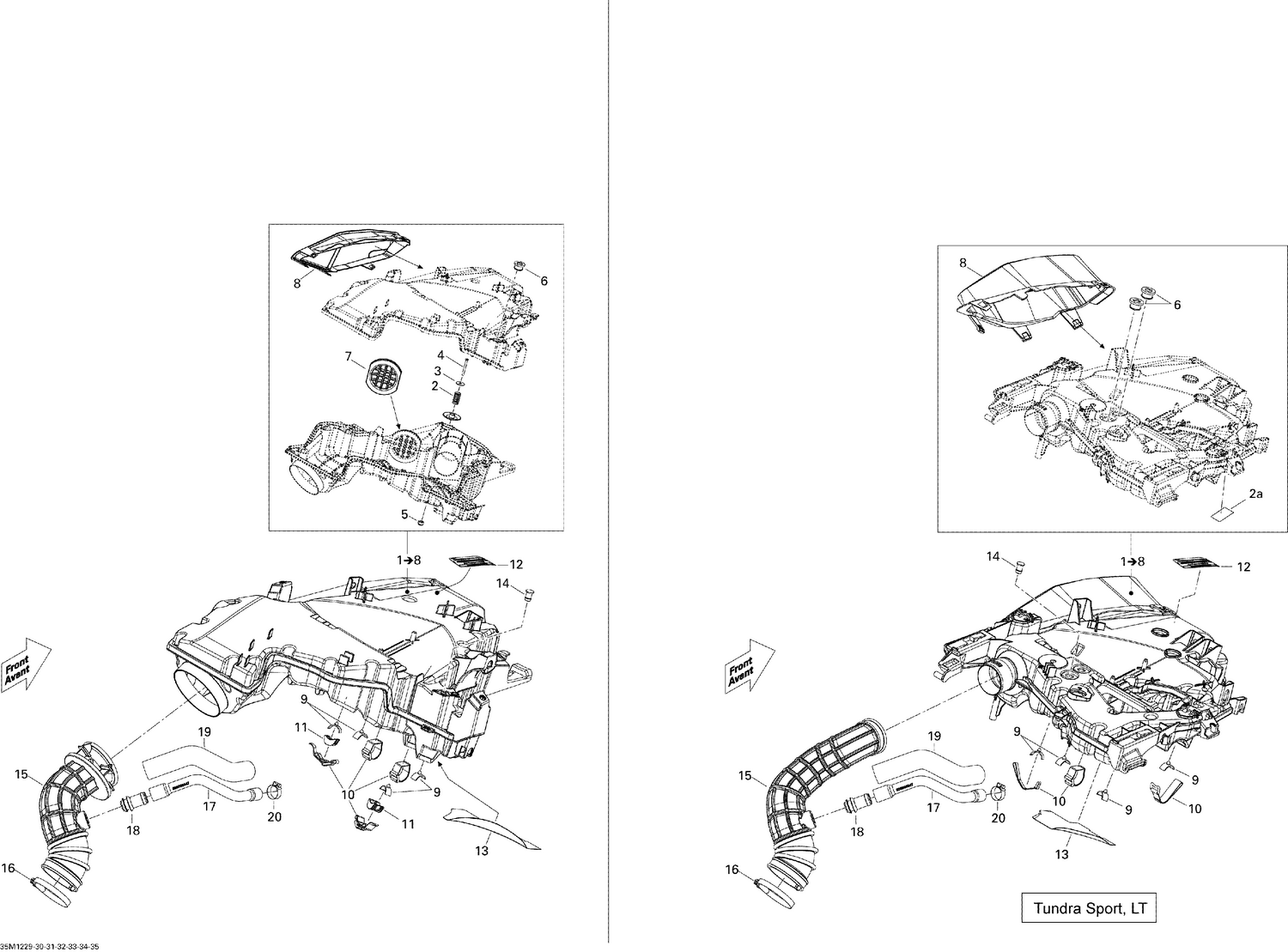

02- Air Intake System
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000576 | Spring |
| 3 | 224060201 | Flat Washer |
| 4 | 205444086 | Socket Head Screw M4 X 40 |
| 5 | 232541414 | Elastic Stop Nut M4 |
| 6 | 508000574 | Grommet |
| 7 | 508000590 | Cap |
| 8 | 508000568 | Air Intake Filter |
| 9 | 508000537 | Stopper |
| 10 | 508000820 | Velcro Strip This part replaces 508000532. |
| 11 | 508000572 | Bumper |
| 12 | 516004566 | Caution Decal, Hot Parts |
| 13 | 508000622 | Reflective Sheet |
| 14 | 572092900 | Cap |
| 15 | 508000717 | AIR INTAKE HOSE - Call your local BRP dealership |
| 16 | 293650212 | GEMI Clamp |
| 17 | 508000647 | FORMED VENT HOSE - Call your local BRP dealership |
| 18 | 273000234 | Breather Valve |
| 19 | 508000648 | Tube Isolator |
