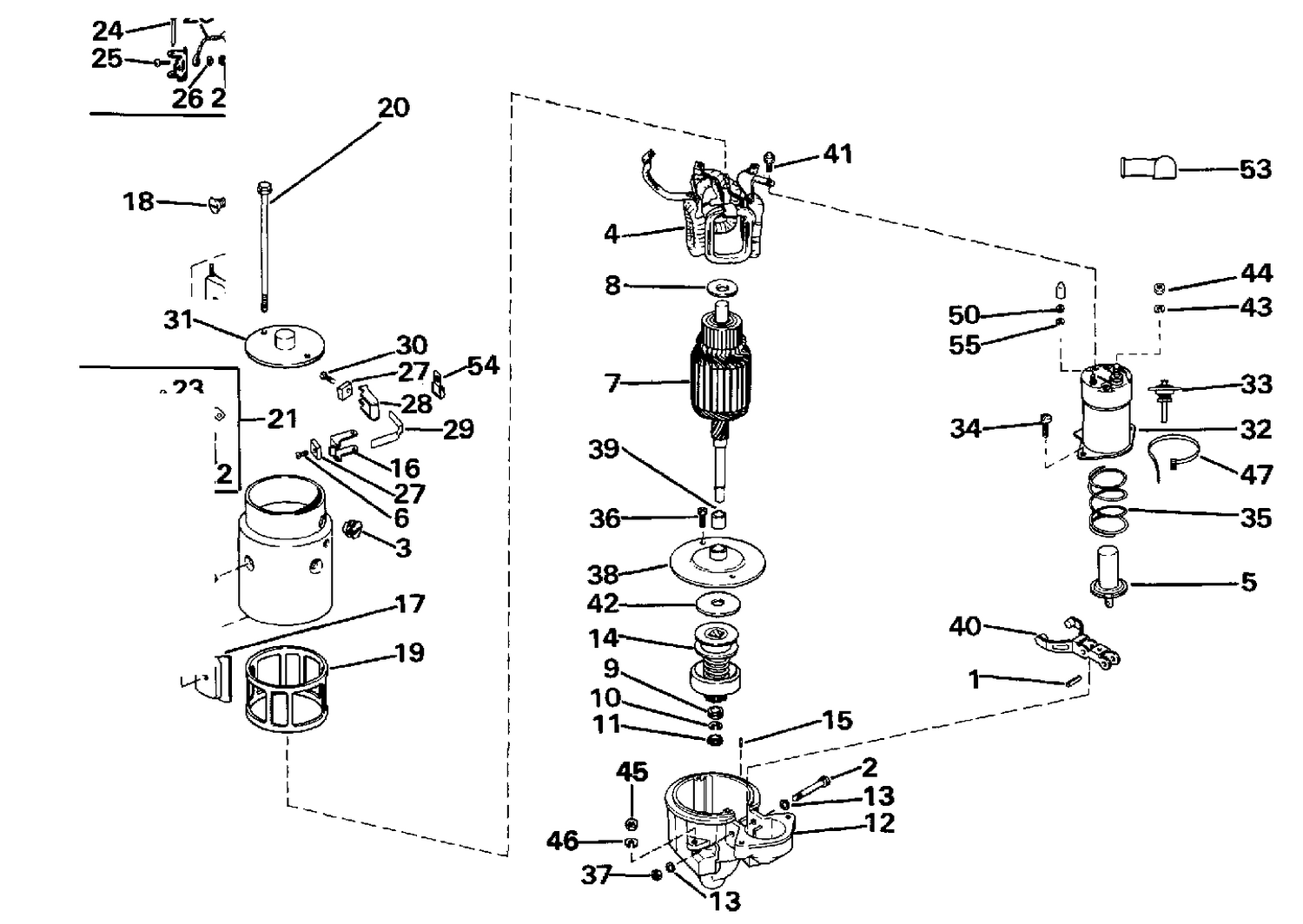

| Ref | Part Number | Description |
|---|
| 1 |
1987049 |
PIN |
| 2 |
1932197 |
STUD, Shift lever |
| 3 |
1846097 |
GROMMET, Field frame |
| 4 |
1970467 |
FIELD COIL |
| 5 |
1987391 |
PLUNGER |
| 6 |
0327953 |
SCREW ,Ground brush |
| 7 |
1878788 |
ARMATURE |
| 8 |
1985617 |
WASHER, Drive stop |
| 9 |
3852725 |
COLLAR, Pinion stop This part replaces 0913533. |
| 10 |
3852726 |
COLLAR STOP This part replaces 0913534. |
| 11 |
3852724 |
COLLAR THRUST This part replaces 0913532. |
| 12 |
1893012 |
DRIVE HOUSING |
| 13 |
1970988 |
WASHER |
| 14 |
1974655 |
DRIVE ASSEMBLY |
| 15 |
1985696 |
DOWEL PIN |
| 16 |
3853873 |
BRUSH HOLDER, Grounded This part replaces 0985803. |
| 17 |
0810601 |
POLE SHOE |
| 18 |
1968396 |
SCREW, Pole shoe |
| 19 |
1976832 |
INSULATOR, Fixed coil |
| 20 |
3852722 |
THRU BOLT This part replaces 0913530. |
| 21 |
3853871 |
SUPPORT PACKAGE This part replaces 0985801. |
| 25 |
0303394 |
SCREW, Support |
| 27 |
3852721 |
BRUSH This part replaces 0913529. |
| 28 |
1984118 |
BRUSH HOLDER, Insulated |
| 29 |
3852720 |
SPRING, Brush This part replaces 0913528. |
| 31 |
3853870 |
CONNECTOR, Oil filter This part replaces 0985800. |
| 32 |
1114567 |
SOLENOID SWITCH |
| 33 |
1956226 |
CONTACT ASSY., Switch |
| 34 |
3852459 |
SCREW, Switch This part replaces 0908769. |
| 35 |
1958679 |
RETURN SPRING |
| 36 |
1984000 |
SCREW & LOCKWASHER |
| 37 |
9428056 |
NUT, Shift lever stud |
| 38 |
1892414 |
PLATE & BUSHING |
| 39 |
1957017 |
BUSHING, Center |
| 40 |
0801433 |
LEVER, Shift |
| 41 |
0319614 |
SCREW, Bar clamp This part replaces 0913521. |
| 42 |
3852715 |
THRUST WASHER This part replaces 0913523. |
| 43 |
3852521 |
LOCK WASHER, Metric This part replaces 0911146. |
| 44 |
0912940 |
NUT, Starter solenoid, metric |
| 46 |
0303269 |
L'WASHER, Upper |
| 50 |
3852518 |
NUT, Solenoid, metric This part replaces 0911143. |
| 53 |
3852487 |
BOOT, Battery cable This part replaces 0910111. |
| 0984982 |
0984982 |
STARTER MTR. & STUD ASSY. |
