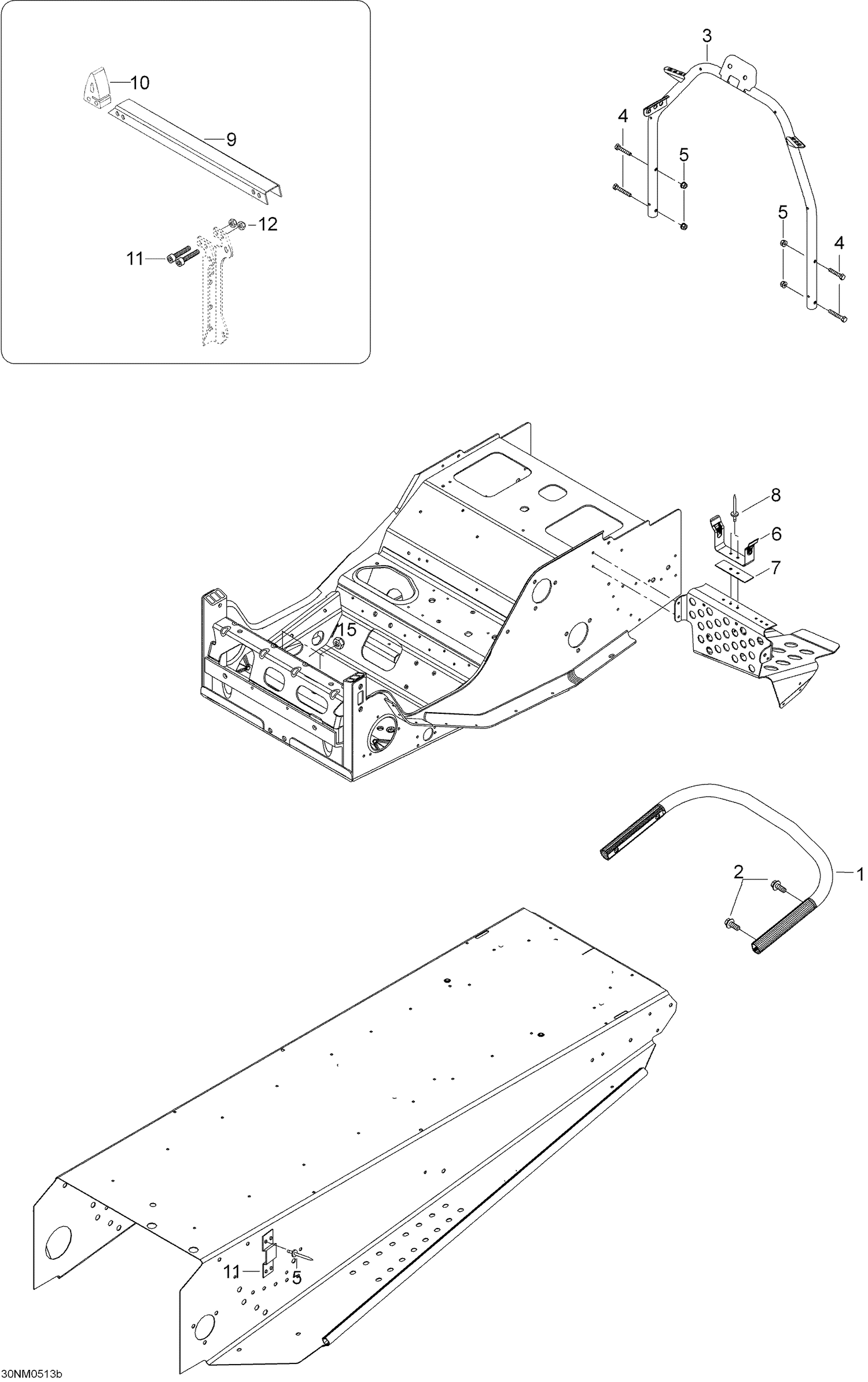

09- Frame
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517243800 | Rear bumper |
| 2 | 40336 | HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 3 | 5247856 | Handle steering supp. |
| 4 | 40002 | Hex. screw M6 x 40 |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 6 | 518202100 | Pulley guard bracket |
| 7 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 8 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 9 | 605349343 | Bracket |
| 10 | 5348099 | Rubber damper |
| 11 | 40345 | Socket head screw M6 x 40 |
