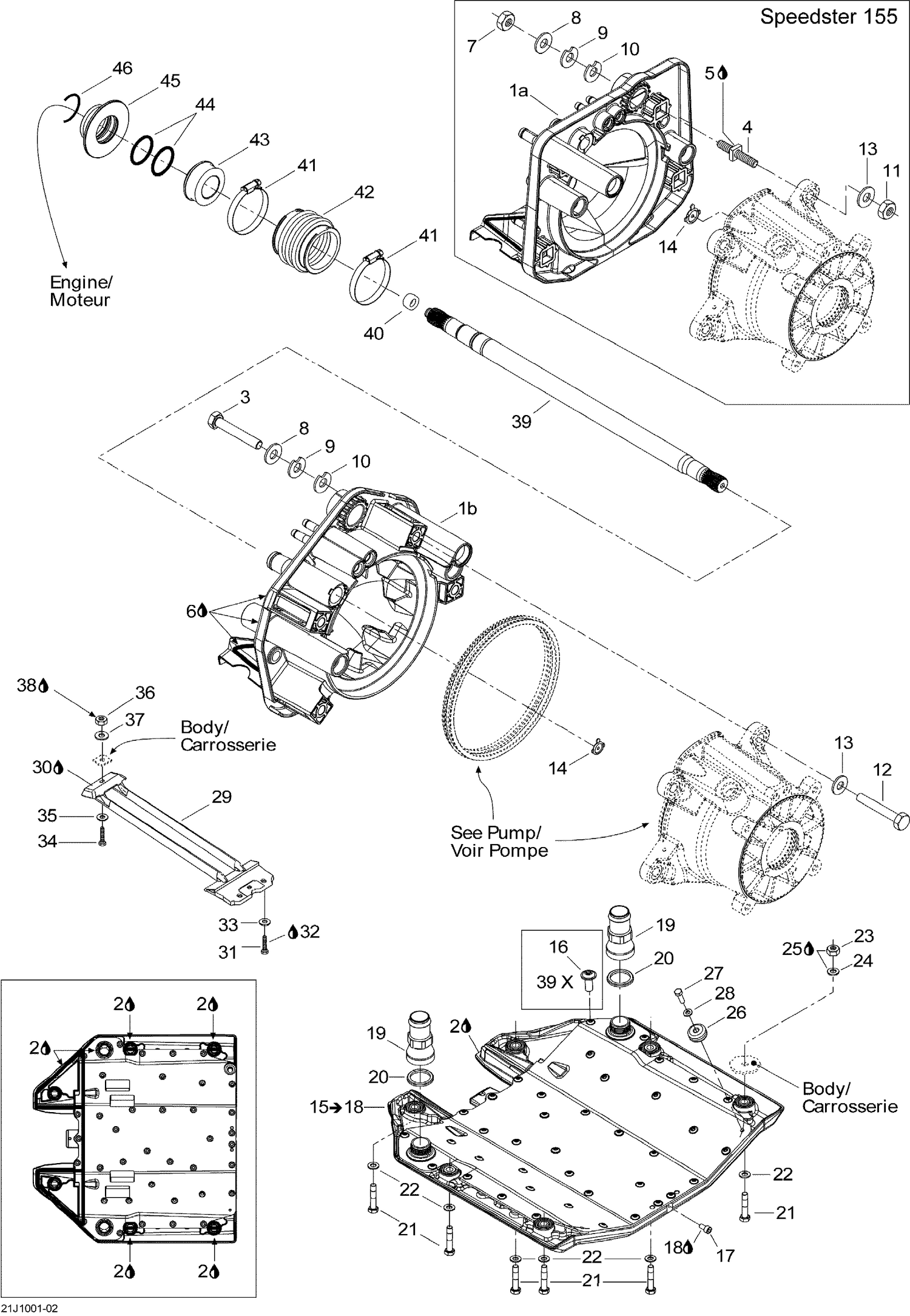

05- Propulsion — Parts Catalog

Parts (45)

Ref	Part Number	Description
1a	XXX	Not Available As Spare Parts
1b	204120384	PUMP SUPPORT - Call your local BRP dealership
2	219701421	Instant Gasket This part replaces 293800088.
3	250000189	HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership
4	XXX	Not Available As Spare Parts
5	XXX	Not Available As Spare Parts
6	296000309	Silicone Sealant 51388, 300 ml
7	XXX	Not Available As Spare Parts
8	234002600	Flat Washer 10 mm, Stainless
9	272000053	Shim 0.3 mm
10	0460011	NEEDS DESCRIPTION This part replaces 204120067.
11	XXX	Not Available As Spare Parts
12	250000188	HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership
13	211200051	Flat Washer
14	271002029	Reducer, Green This part replaces 271001586.
16	250000384	Torx Screw M6 X 14
17	250500005	Socket Drain Plug M6 X 12
18	219704454	Was 293800013 Loctite 56765
19	293710111	Straight Plastic Fitting
20	293300121	O-Ring
21	207084060	Hex. Screw M8 X 40
22	234081600	Stainless, Flat Washer 8 mm
23	232581600	Hex. Elastic Nut M8
24	234082600	Flat Washer 8 mm, Stainless
25	296000309	Silicone Sealant 51388, 300 ml
26	271001813	Anode Zinc This part replaces 271001487.
27	207362060	Hex. Screw M6 X 20, Scotch Grip
28	234061600	Stainless Flat Washer M6
29	271001582	PUMP GRATE - Call your local BRP dealership This part replaces 271001581.
30	219701421	Instant Gasket This part replaces 293800088.
31	207161660	Hex. Screw M6 X 16
32	293800005	Loctite 271, 10 ml
33	234061600	Stainless Flat Washer M6
34	207184060	Hex. Screw M8 X 40
35	234081600	Stainless, Flat Washer 8 mm
36	232581600	Hex. Elastic Nut M8
37	234081600	Stainless, Flat Washer 8 mm
38	296000309	Silicone Sealant 51388, 300 ml
39	204120309	Drive Shaft
40	272000173	Drive Shaft Plug
41	293650077	Norma Clamp
42	272000183	Bellows
43	295501200	Carbon Ring Kit This part replaces 272000177.
44	293300044	O-Ring
45	295501200	Carbon Ring Kit This part replaces 272000176.
