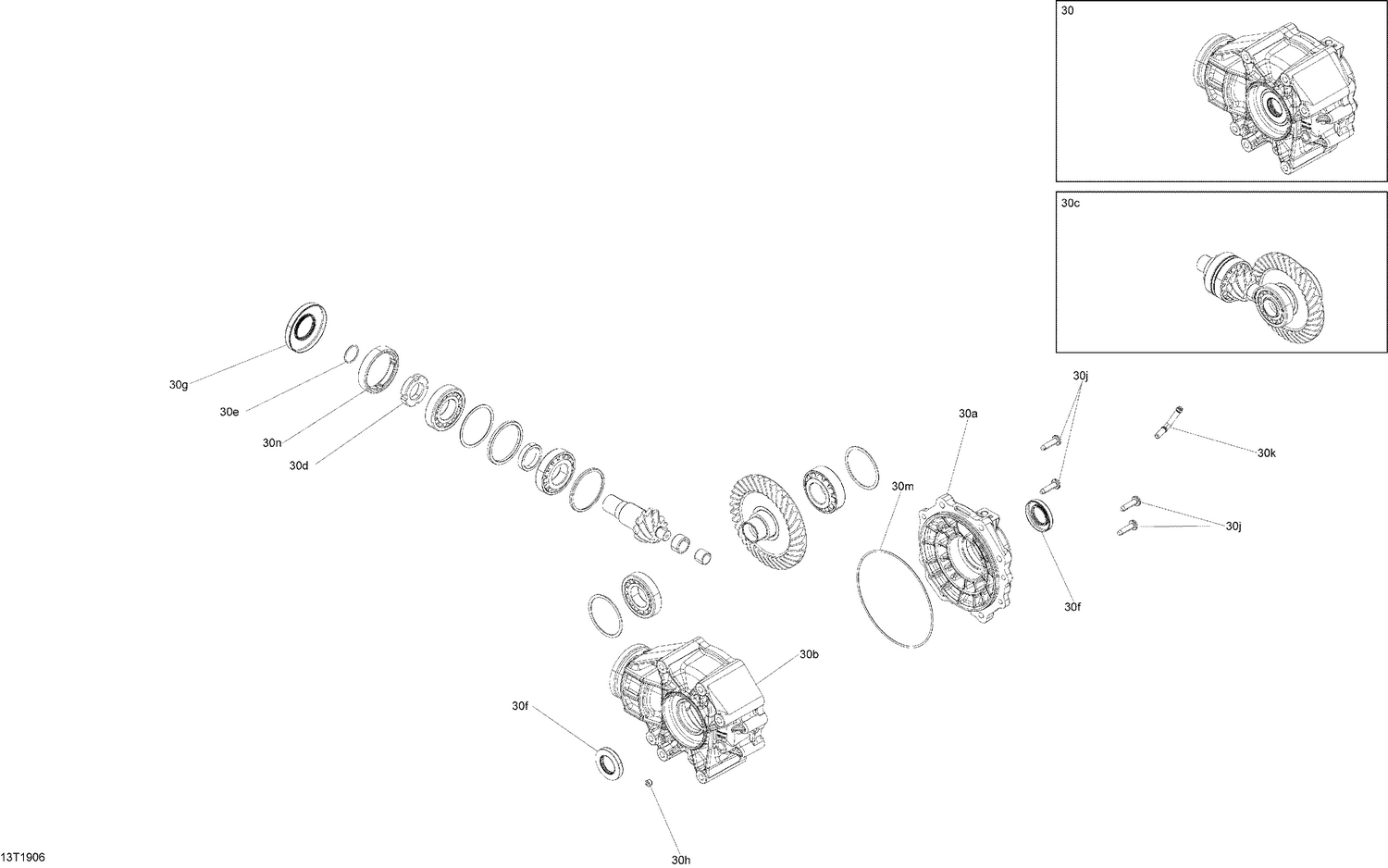

08- Rear Drive - Final Drive Unit

08- Rear Drive - Final Drive Unit

Parts (10)

RefPart NumberDescription
30a 705502547 Rear Cover
30b 705502180 Rear Pinion Cover
30d 705501550 Nut
30e 705501554 O-Ring
30f 705501556 Oil Seal
30g 705501557 Oil Seal
30h 705501724 Plug Drain
30j 705502063 Screw
30k 705501584 Breather Tube
30m 705501711 O-Ring
