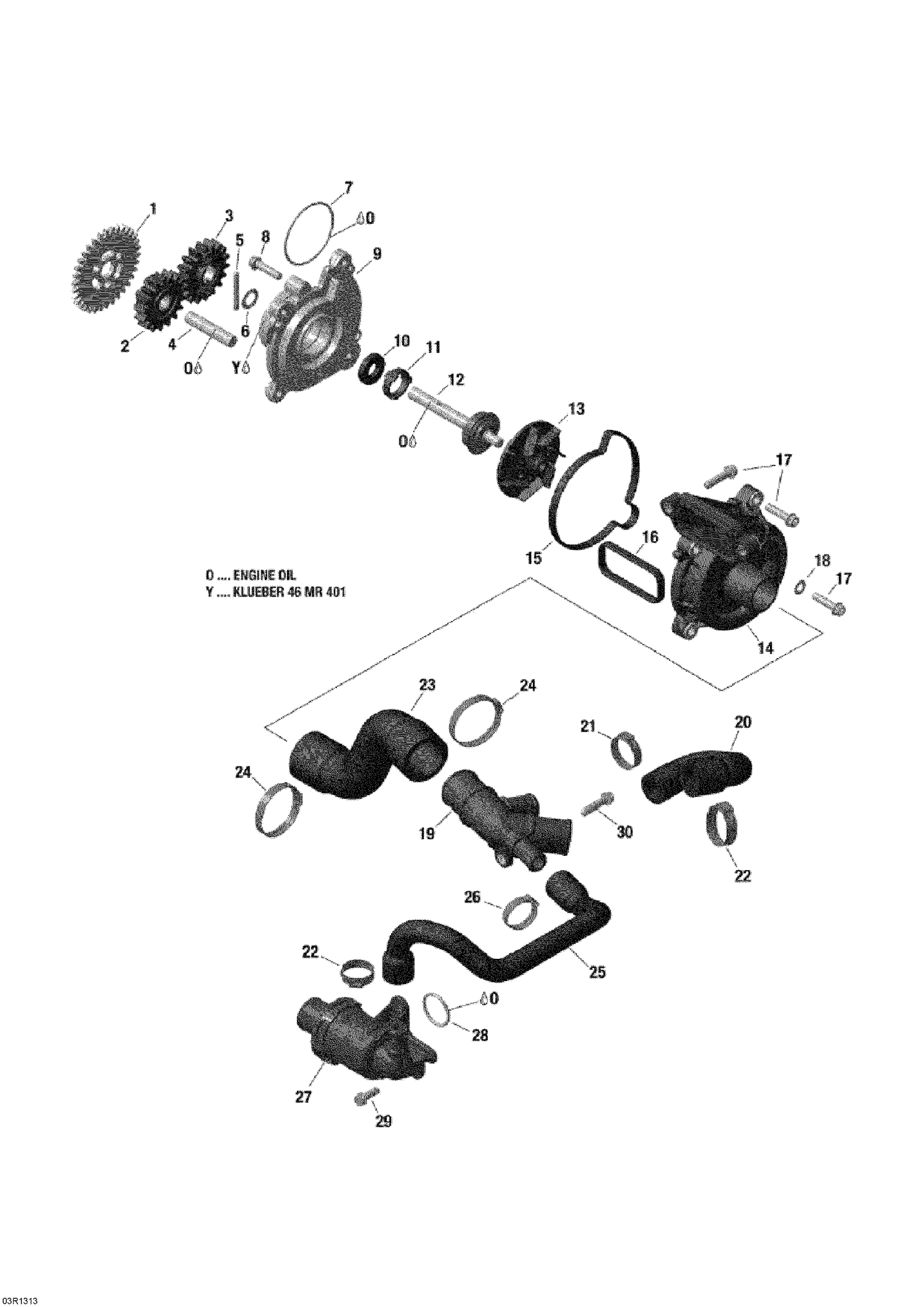

01- Engine Cooling
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| O | 293600112 | Engine Oil |
| 1 | 420835065 | Intermediate Gear (34 T) This part replaces 420835061. |
| 2 | 420835062 | Idle Gear, 17 Teeth |
| 3 | 420835070 | Water Pump Gear, 18 Teeth |
| 4 | 420229302 | Location Pin This part replaces 420229301. |
| 5 | 420832660 | Needle Pin |
| 6 | 420827590 | Thrust Washer |
| 7 | 293300117 | O-Ring |
| 8 | 420440234 | Flanged Torx Screw M6 X 25 |
| 9 | 420910230 | Step Collar |
| 10 | 420650315 | Oil Seal |
| 11 | 420947430 | Spacer Ring |
| 12 | 420837921 | Water Pump Shaft |
| 13 | 420922805 | Water Impeller |
| 15 | 420430780 | Gasket |
| 16 | 420431290 | Gasket |
| 17 | 420440234 | Flanged Torx Screw M6 X 25 |
| 18 | 420230415 | Seal Washer |
| 19 | 420922141 | Hose Joining Nipple |
| 20 | 420922091 | MOLDED HOSE - Call your local BRP dealership |
| 21 | 420851673 | Gear Clamp |
| 22 | 509000442 | Oeticker Gear Clamp, 25.6-706R This part replaces 420851663. |
| 23 | 420460461 | Form Hose |
| 24 | 420951293 | Gear Clamp |
| 25 | 420922132 | Form Hose |
| 26 | 509000442 | Oeticker Gear Clamp, 25.6-706R This part replaces 420851663. |
| 27 | 420822541 | Thermostat Housing Assy |
| 28 | 420631876 | O-ring |
| 29 | 420440162 | Flanged Torx Screw M6 X 16 |
