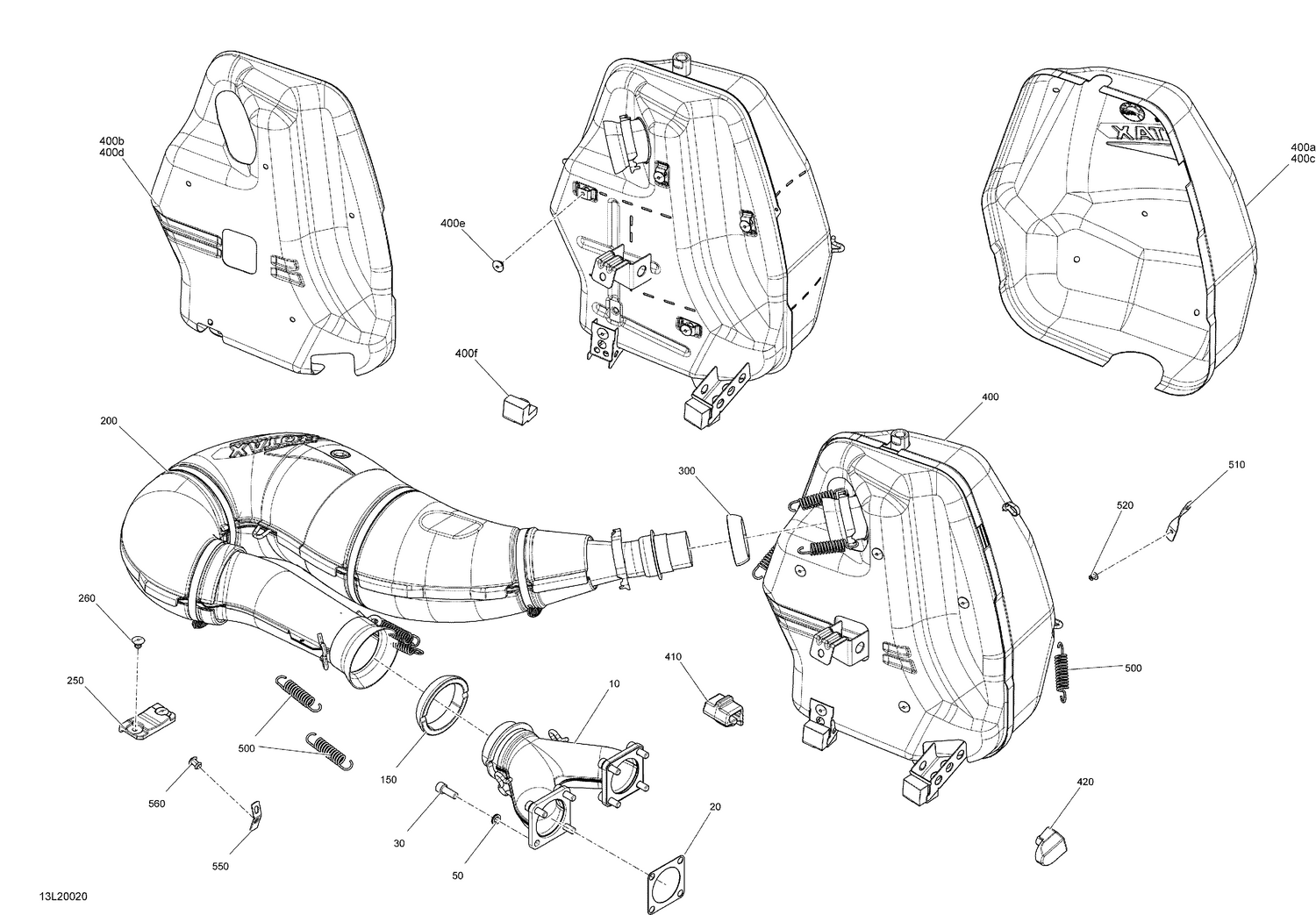

02- Engine - Exhaust
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 420673374 | Exhaust Manifold |
| 20 | 420430482 | Gasket |
| 30 | 250000414 | Socket Head Screw M8 x 22, Scotch Grip |
| 50 | 20072 | Aluslevy, karkaistu M8 |
| 150 | 514053487 | Exhaust Gasket |
| 200 | 514055019 | Tuned Pipe Ass'y |
| 250 | 514054275 | Kannatinkumi |
| 260 | 293150103 | Pop Rivet 3/16 |
| 300 | 514053812 | Exhaust gasket |
| 400a | 514054986 | RH DEFLECTOR - Call your local BRP dealership |
| 400b | 514055029 | LH DEFLECTOR - Call your local BRP dealership |
| 400c | 514054711 | RH Insulating Wool |
| 400d | 514054299 | Värmeisolering, väster |
| 400e | 390910000 | Pop Rivet 3/16” |
| 400f | 514054529 | Lower Stopper |
| 410 | 514054606 | Upper Stopper |
| 420 | 514055070 | Rubber Bumber |
| 500 | 415107100 | Jousi äänenv.kiinnit. |
| 510 | 514054974 | Spring Bracket, 5mm hole |
| 520 | 390402200 | Pop Rivet 3/16 |
| 550 | 514055113 | Spring Bracket |
